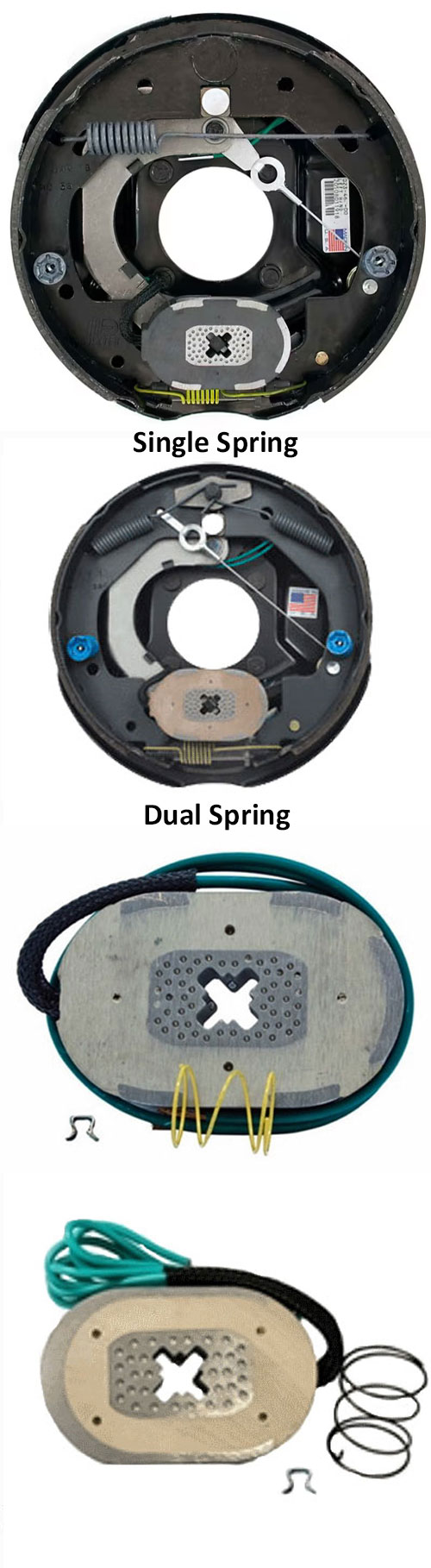

10" x 2 1/4" Self Adjusting Electric Brake
  • Capacity: 3,500 lbs. per pair
  • OEM quality replacement brakes for Dexter, Al-Ko/Hayes, R/A and more

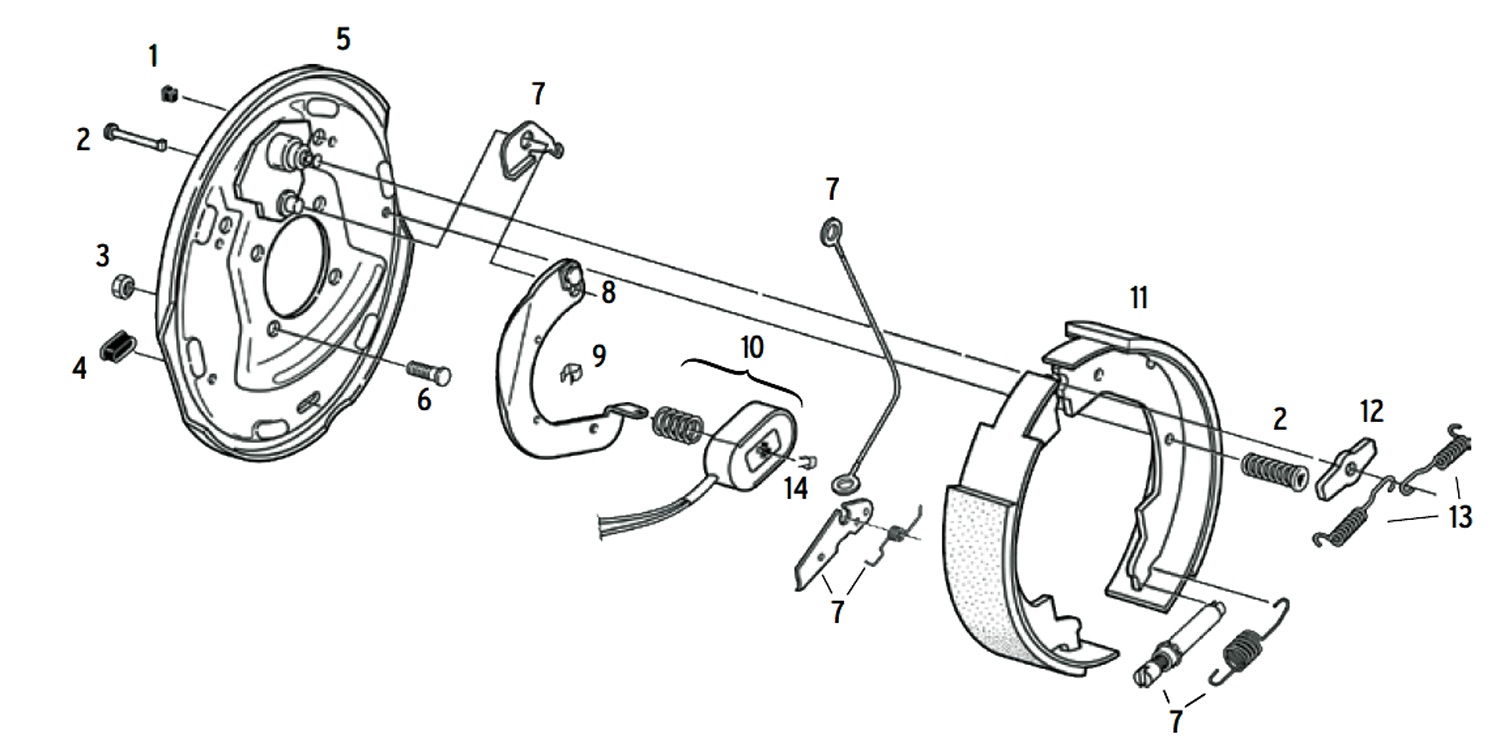

Dexter 10 x 2 1/4 Inch Self Adjusting Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
EB01-107
Trailer Parts Pro self-adjust complete brake assembly left hand
EB01-108
Trailer Parts Pro self-adjust complete brake assembly right hand
23-468
Dexter Nev-R-Adjust complete brake assembly left hand
23-469
Dexter Nev-R-Adjust complete brake assembly right hand
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
BP06-120
Shoe Hold Down Spring Kit (One Wheel)
2
6-17
7/16"-20 Brake mounting nut
3
BP10-220
Adjuster Dust Plug, Pkg of 4
4
36-19-10
Backing plate
5
007-041-00
7/16"-20 Brake mounting stud
6
K71-703-00
Self Adjust Kit 1 Wheel
7
BP02-170
Magnet Actuating Arm, Left Hand Dexter, Redline
8
BP02-180
Magnet Actuating Arm, Right Hand Dexter, Redline
8
027-005-00
Magnet wire clip
9
BP01-110
Magnet Kit, Fits Dexter, Hayes/Alko and Redline 3.5K
10
BP01-115
Magnet Kit Dexter 3.5k (Green Wire)
10
BP04-097
205212
Shoe/Lining, Left Hand Dexter/Redline/Red Onyx Self-Adjust Reference Only
11
BP04-098
205214
Shoe/Lining, right Hand Dexter/Redline/Red Onyx Self-Adjust Reference Only
11
K71-681
Shoe/Lining, LH, Dexter Nev-R-Adjust™ 3.5K (One Wheel)
11
K71-682
Shoe/Lining, RH, Dexter Nev-R-Adjust™ 3.5K (One Wheel)
11
005-067-00
Anchor Post Washer
12
BP07-105
Shoe Return Spring (Dual)
13
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
14
BP07-110
Shoe Return Spring (Single)
N/S
Dexter 10 x 2 Inch Electric Brake Assemblies
