Hayes/Al-Ko 10-12K Trailer Disc Brakes
  • Oil Bath Hub, JM511946 Inner/JM205149 Outer Bearing
  • Fits AL-KO/Hayes 10-12K Disc Brake Axles
  • Capacity of 5,000 lbs. per each
  • For use with coined dual wheels
Dexter 10K Axle Disc Brake Parts Illustration Hayes/Al-KO 10-12K Axle Disc Brake Caliper Parts Illustration
REPLACEMENT PARTS
PART NO.
DESCRIPTION
REF #
090814
8 on 6 1/2" Oil Bath Hub and Rotor Only Reference Only
125000
090814UC3
Complete Oil Bath Hub and Rotor Assembly Reference Only
125200
JM205149
1.969 I.D. Outer Axle Bearing
JM511946
2.559 I.D. Inner Axle Bearing
JM205110
JM205149 Axle Bearing Race
JM511910
JM511946 Axle Bearing Race
95188
5/8 X 1 1/8" Flange Wheel Nut
090737
5/8 X 3" Drive In Wheel Studs for Hayes-Al-Ko Trailer Axles<
RG04-250
92125 Oil Cap Kit for 10/12K Hayes/AL-KO Trailer Axles
10-56
Unitized Oil Seal for 10/12/15K Dexter/Hayes Trailer Axles

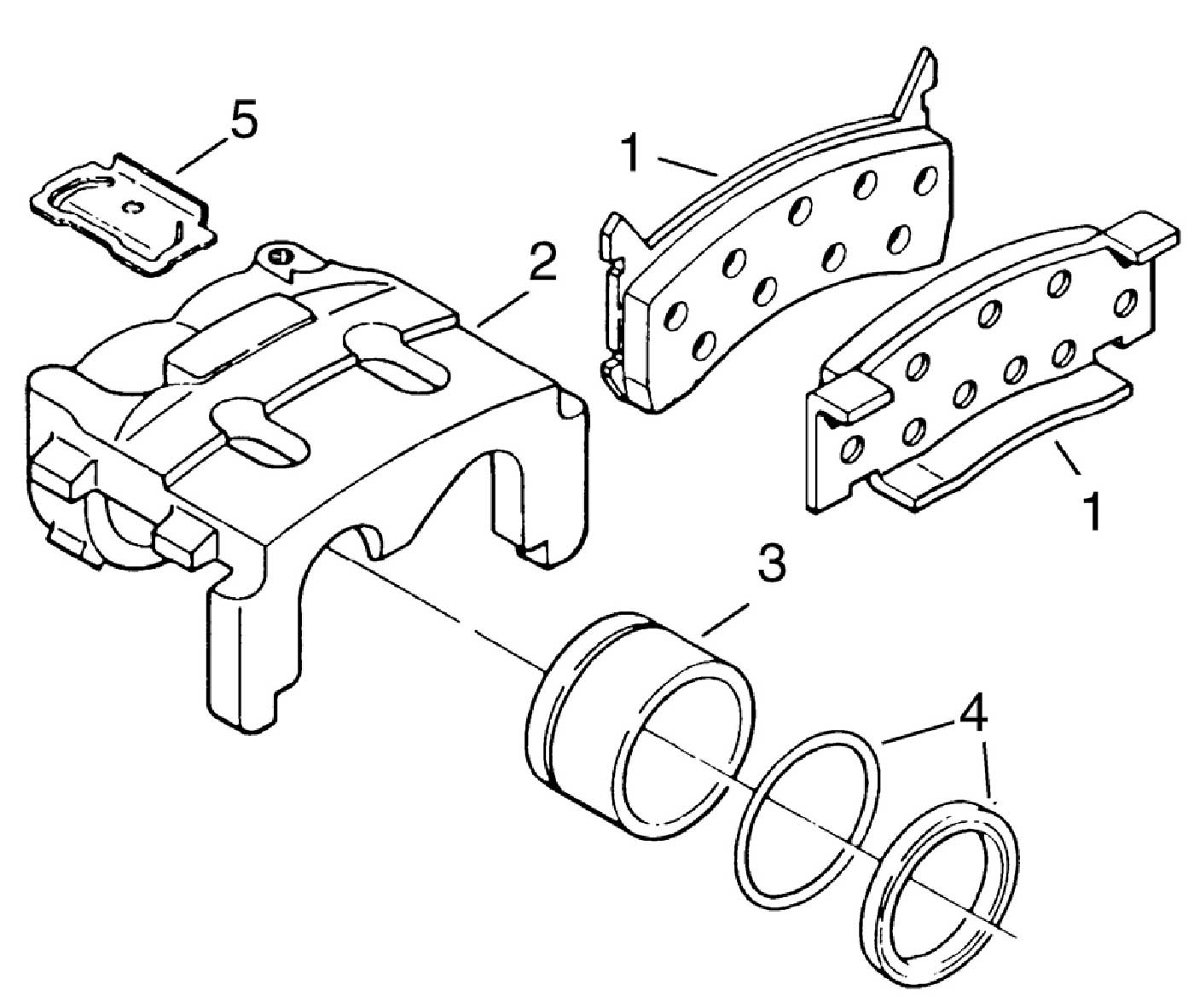

10-12K CALIPER PARTS
PART NO.
DESCRIPTION
REF #
BP04-400
Hayes Hydraulic Disc Brake Pad for 10K & 12K (1)
BP18-050
Hayes Hydraulic Disc Brake Caliper Left Hand 10-12K (2)
BP18-060
Hayes Hydraulic Disc Brake Caliper Right Hand 10-12K (2)
096930
Hayes Caliper Piston 10-12K (3)
BP18-080
Hayes Caliper Rebuild Kit for 10K & 12K Hydraulic Disc Brake (4)
BP18-090
Hayes Brake Pad Retainer Plate for 10K-12K Hydraulic Disc Brake (5)
