Trailer Hub/Drum 5 Bolt On 4 1/2", 4 3/4", 5" and 5 1/2 " Bolt Circle #84 Spindle
  • #84 spindle L68149 inner/L44649 outer bearings
  • Fits Dexter, Lippert and Most other 3,500 lb. axles
  • Capacity of 1,750 lbs. per each
  • Standard grease or zerk-lubed spindles
  • 10" X 2 1/4" Drum

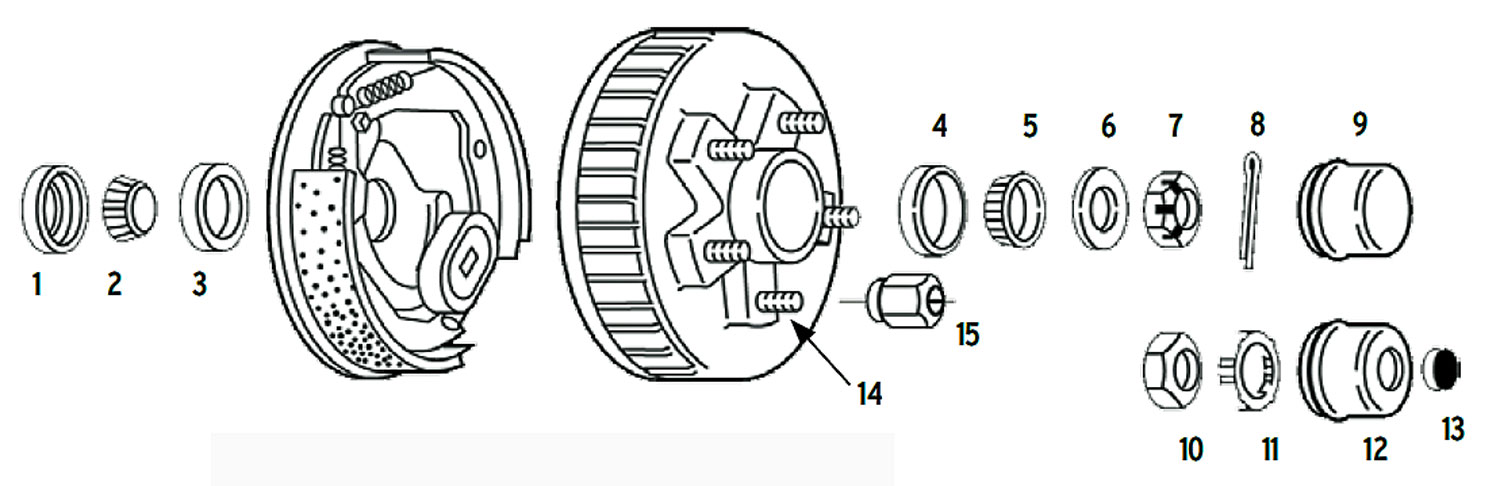

Hub-Drum trailer 5 bolt on 4 1/2, 4 3/4, 5 and 5 1/2 inch #84 spindle Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
BOLT CIRCLE
FINISH
84546
Dexter hub/drum only with studs and races
4 1/2"
Painted
84546UC3
Dexter complete hub/drum assembly
4 1/2"
Painted
84543UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
4 1/2"
Painted
8-247-50
Dexter hub/drum only with studs and races
4 1/2"
Gal-Dex
8-250-50UC3
Dexter complete hub/drum assembly
4 1/2"
Gal-Dex
8-250-50UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
4 1/2"
Gal-Dex
845476
Dexter hub/drum only with studs and races
4 3/4"
Painted
845476UC3
Dexter complete hub/drum assembly
4 3/4"
Painted
845476UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
6 1/2"
Painted
84556
Dexter hub/drum only with studs and races
5"
Painted
84556UC3
Dexter complete hub/drum assembly
5"
Painted
84556UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
5"
Painted
84557
Dexter hub/drum only with studs and races
5 1/2"
Painted
84557UC3
Dexter complete hub/drum assembly
5 1/2"
Painted
84557UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
5 1/2"
Painted
HD84546
Trailer Parts Pro hub/drum only with studs and races
4 1/2"
Painted
H84546UC3
Trailer Parts Pro complete hub/drum assembly
4 1/2"
Painted
H84546UC3-ZL
Trailer Parts Pro complete zerk-lube hub/drum assembly
4 1/2"
Painted
H84546BX
Trailer Parts Pro complete boxed hub/drum assembly
4 1/2"
Painted
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-19
Grease Seal, 2.565" OD X 1.719" ID, Double Lip
1
L68149
Inner Bearing
2
L68111
Inner Race
3
L44610
Outer Race
4
L44649
Outer Bearing
5
5-23
Spindle washer, 1" D-Style (E-Z lube after 2002)
6
6-176
Spindle Nut, 1"-14 12 Castellation
7
165686
Spindle Nut, 1"-14 6 Castellation
7
165649
Cotter Pin
8
46749
Grease Cap, 1.986" OD, Drive-In
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-41-1
Grease cap, 1.986" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
7-122
Stud, 1/2" Diameter, Drive-In Style 2" Long Standard
14
7-150
Stud, 1/2" Diameter, Drive-In Style 2 1/4" Long Zinc
14
X1023R
Wheel Nut, 1/2" Cone Style
15
