Trailer Hub/Drums 6 Bolt On 5 1/2 " Bolt Circle With Spindle Using 2.125 or 2.25" ID Seals
  • 25580 inner/15123 outer bearings
  • Fits Dexter, Lippert and most other 6,000 lb. axles
  • Capacity of 3,000 lbs. per each
  • Standard grease or zerk-lubed spindles
  • Spindles using 2 1/8" or 2 1/4" ID seals
  • 12" X 2" drum
  • Dexter discontinued the 2 1/8" spindle in 1997

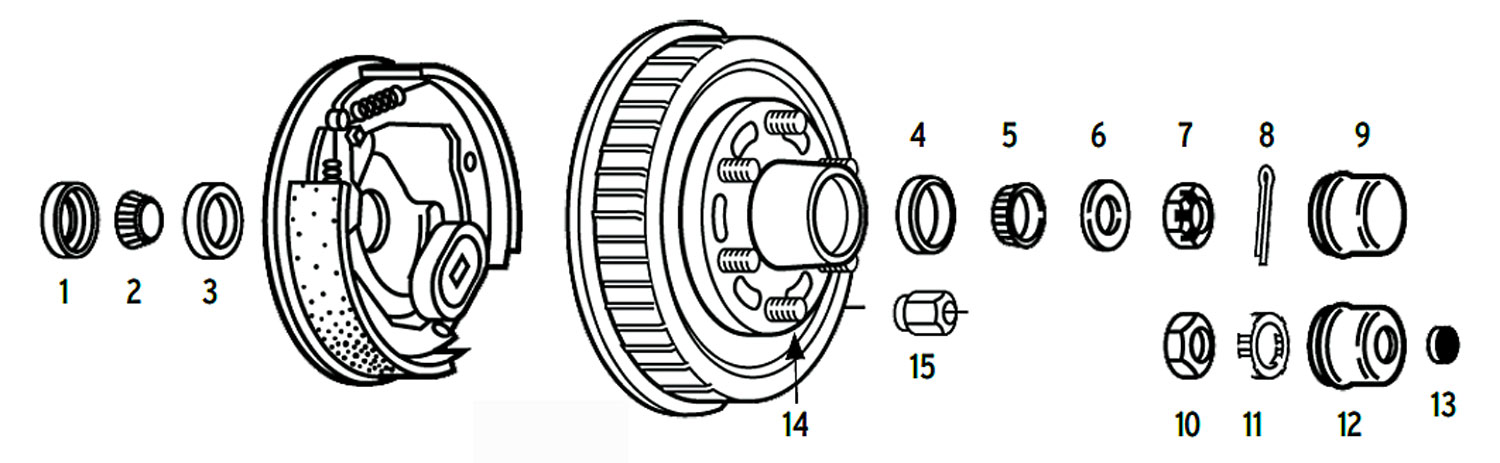

Hub/Drum trailer 6 bolt on 5 1/2 inch with spindle using 2.125 or 2.25 ID seals Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
SEAL ID
FINISH
42656
Dexter hub/drum only with studs and races
N/A
Painted
42656UC3
Dexter complete hub/drum assembly
2 1/4"
Painted
42656UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
2 1/4"
Painted
8-201-51
Dexter hub/drum only with studs and races
N/A
Gal-Dex
8-201-51UC3
Dexter complete hub/drum assembly
2 1/4"
Gal-Dex
8-201-51UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
2 1/4"
Gal-Dex
8-201-9UC3
Dexter complete hub/drum assembly
2 1/8"
Painted
8-201-9UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
2 1/8"
Painted
HD42656
Trailer Parts Pro hub/drum only with studs and races
N/A
Painted
HD42656-UC3
Trailer Parts Pro complete hub/drum assembly
2 1/4"
Painted
H42656-UC3-ZL
Trailer Parts Pro complete zerk-lube hub/drum assembly
2 1/4"
Painted
HD42656BX
Trailer Parts Pro complete boxed hub/drum assembly
2 1/4"
Painted
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-36
Grease Seal, 3.376" OD X 2.25" ID, Double Lip
1
10-10
Grease Seal, 3.376" OD X 2.125" ID, Double Lip
1
25580
Inner Bearing
2
25520
Inner Race
3
15245
Outer Race
4
15123
Outer Bearing
5
5-23
Spindle washer, 1" D-Style (E-Z lube after 2002)
6
6-176
Spindle Nut, 1"-14 12 Castellation
7
165686
Spindle Nut, 1"-14 6 Castellation
7
165649
Cotter Pin
8
45869
Grease Cap, 2.44" OD, Drive-In
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-42-1
Grease cap, 2.44" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
7-122
Stud, 1/2" Diameter, Drive-In Style 2" long standard before 2/09
14
7-150
Stud, 1/2" Diameter, Drive-In Style 2 1/4" long Zinc
14
165995
Stud, 1/2" Diameter, Drive-In Style 2 1/4" long
14
7-262
Stud, 1/2" Diameter, Drive-In Style 2.7" long standard after 02/09
14
7-262-1
Stud, 1/2" Diameter, Drive-In Style 2.7" long Zinc
14
X1023R
Wheel Nut, 1/2" Cone Style
15
