Trailer Hub/Drum 6 Bolt On 5 1/2" Bolt Circle 4.4k Axle
  • #84" spindle L68149 inner/L67048 outer bearings
  • Fits Dexter, Lippert and most other 4,400 lb. axles
  • Capacity of 2,200 lbs. per each
  • Standard grease or zerk-lubed spindles
  • 10" X 2 1/4" drum

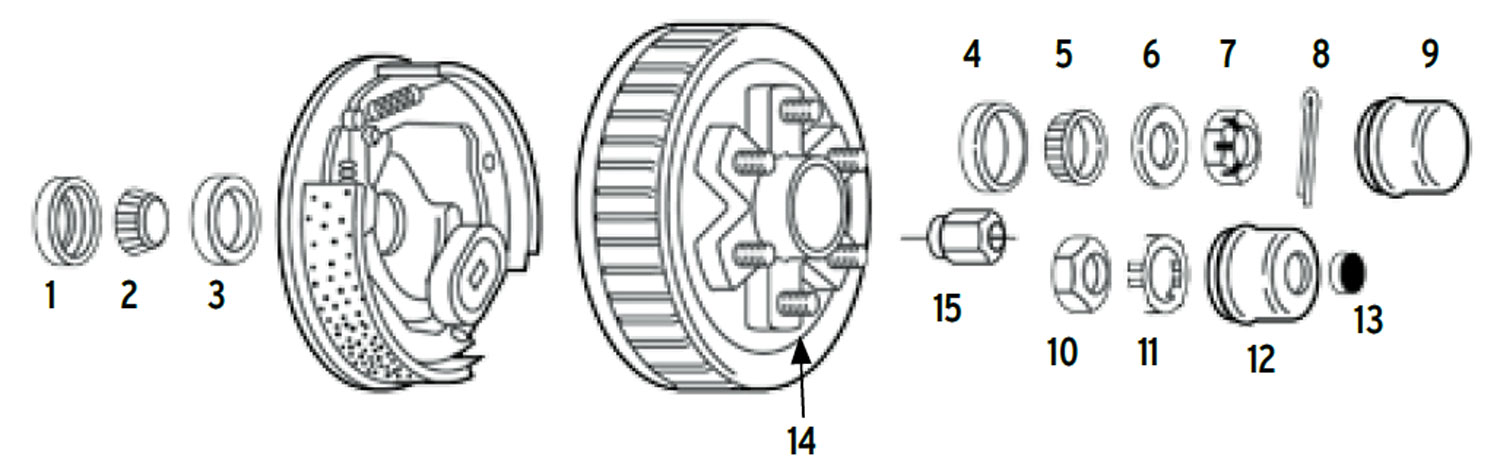

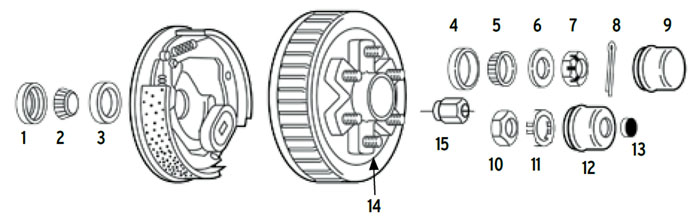

Hub/Drum trailer 6 bolt on 5 1/2" for 4.4k axles Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
FINISH
8-407-5
Dexter hub/drum only with studs and races
Painted
8-407-5UC3
Dexter complete hub/drum assembly
Painted
8-407-5UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
Painted
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-19
Grease Seal, 2.565" OD X 1.719" ID, Double Lip
1
L68149
Inner Bearing
2
L68111
Inner Race
3
L67010
Outer Race
4
L67048
Outer Bearing
5
5-23
Spindle washer, 1" D-Style (E-Z lube after 2002)
6
6-176
Spindle Nut, 1"-14 12 Castellation
7
165686
Spindle Nut, 1"-14 6 Castellation
7
165649
Cotter Pin
8
45896
Grease Cap, 2.44" OD, Drive-In
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-42-1
Grease cap, 2.44" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
7-122
Stud, 1/2" Diameter, Drive-In Style 2" Long Standard
14
X1023R
Wheel Nut, 1/2" Cone Style
15
