Trailer Hub/Drum 8 Bolt On 6 1/2" Bolt Circle With Spindle Using 2.125 or 2.25" ID Seals
  • 25580 inner/14125A outer bearings
  • Fits Dexter, Lippert and most other 5,200-7,000 lb. axles
  • Capacity of 3,500 lbs. per each
  • Standard grease, oil bath or zerk-lubed spindles
  • Spindles using 2 1/8" or 2 1/4" ID seals
  • 12" X 2" drum
  • Dexter discontinued the 2 1/8" spindle in 1997

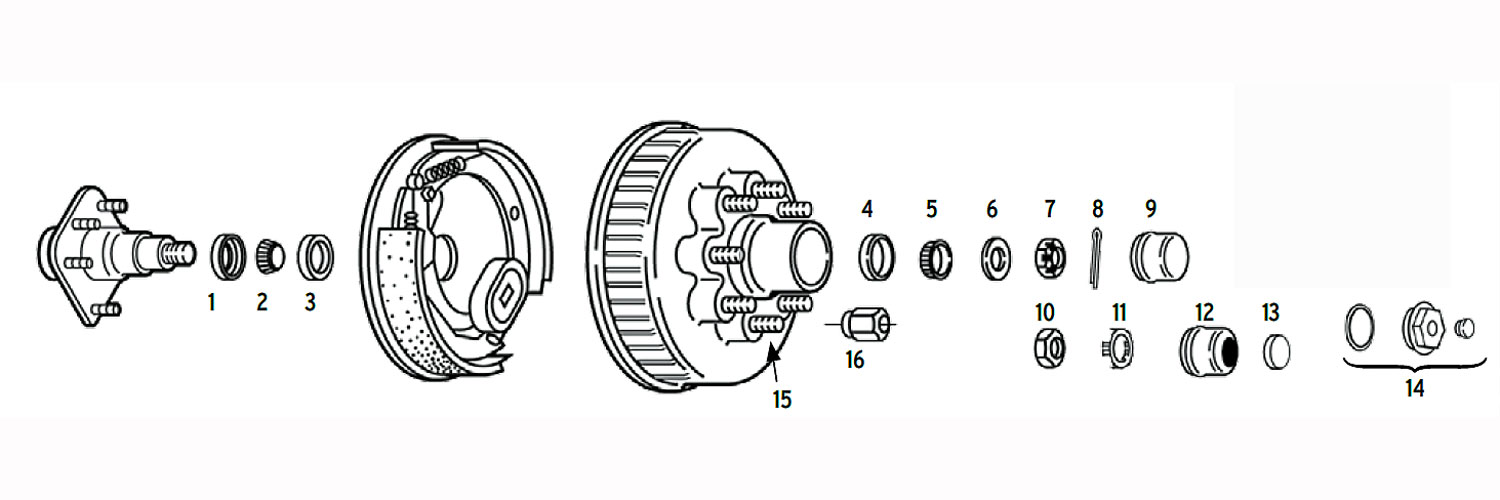

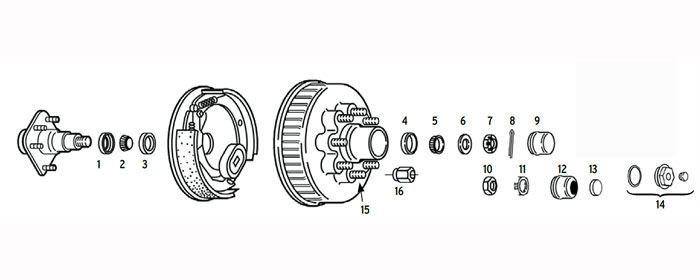

Hub/Drum trailer 8 bolt on 6 1/2 inch with spindle using 2.125 or 2.25 ID seals Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
LUB.
STUD
SEAL
FINISH
42866
Dexter hub/drum only with studs and races
Grease
1/2"
N/A
Painted
42866UC3
Dexter complete hub/drum assembly
Grease
1/2" Cone Nuts
2 1/4"
Painted
42866UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
Grease
1/2" Cone Nuts
2 1/4"
Painted
8-219-50
Dexter hub/drum only with studs and races
Grease
1/2" Cone Nuts
2 1/4"
Gal-Dex
8-219-50UC3
Dexter complete hub/drum assembly
Grease
1/2" Cone Nuts
2 1/4"
Gal-Dex
8-219-50UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
Grease
1/2" Cone Nuts
2 1/4"
Gal-Dex
8-219-4UC3
Dexter complete hub/drum assembly
Grease
1/2" Cone Nuts
2 1/8"
Painted
8-219-4UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
Grease
1/2" Cone Nuts
2 1/8"
Painted
8-219-9
Dexter hub/drum only with studs and races
Oil
1/2"
N/A
Painted
8-219-9UC3
Dexter complete hub/drum assembly
Oil
1/2" Cone Nuts
2 1/8"
Painted
8-219-9UC3-A
Dexter complete hub/drum assembly
Oil
1/2" Cone Nuts
2 1/4"
Painted
8-219-13
Dexter hub/drum only with studs and races
Grease
9/16"
N/A
Painted
8-219-13UC3
Dexter complete hub/drum assembly
Grease
9/16" Cone Nuts
2 1/4"
Painted
8-219-13UC3-EZ
Dexter complete EZ Lube hub/drum assembly
Grease
9/16" Cone Nuts
2 1/4"
Painted
8-219-18
Dexter hub/drum only with studs and races
Grease
5/8"
N/A
Painted
8-219-18UC3
Dexter complete hub/drum assembly
Grease
9/16" Flange Nuts
2 1/4"
Painted
HD42866
Trailer Parts Prol hub/drum only with studs and races
Grease
1/2"
N/A
Painted
HD42866UC3
Dexter complete hub/drum assembly
Grease
1/2" Cone Nuts
2 1/4"
Painted
HD42866UC3-ZL
Dexter complete Zerk Lube hub/drum assembly
Grease
1/2" Cone Nuts
2 1/4"
Painted
HD42866BX
Dexter complete boxed hub/drum assembly
Grease
1/2" Cone Nuts
2 1/4"
Painted
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-36
Grease Seal, 3.376" OD X 2.25" ID, Double Lip
1
10-10
Grease Seal, 3.376" OD X 2.125" ID, Double Lip
1
10-63
Oil Seal, Unitized 3.376" OD X 2.25" ID
1
25580
Inner Bearing
2
25520
Inner Race
3
14276
Outer Race
4
14125A
Outer Bearing
5
5-57
Spindle washer, D-Style
6
6-176
Spindle Nut, 1"-14 12 Castellation
7
165686
Spindle Nut, 1"-14 6 Castellation
7
165649
Cotter Pin
8
38605
Grease Cap, 2.72" OD, Drive-In
9
21-39
Grease Cap, 2.72" OD, Drive-In Standard Style
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-43-1
Grease cap, 2.72" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
RG04-230
Complete Oil Cap Kit
14
7-122
Stud, 1/2" Diameter, Drive-In Style 2" long standard before 2/09
15
7-150
Stud, 1/2" Diameter, Drive-In Style 2 1/4" long Zinc
15
165995
Stud, 1/2" Diameter, Drive-In Style 2 1/4" long
15
7-262
Stud, 1/2" Diameter, Drive-In Style 2.7" long standard after 02/09
15
7-262-1
Stud, 1/2" Diameter, Drive-In Style 2.7" long Zinc
15
7-132
Stud, 9/16" Diameter, Drive-In Style 2.3" long
15
7-232
Stud, 5/8" Diameter, Drive-In Style 2.75" long
15
X1023R
Wheel Nut, 1/2" Cone Style
16
6-53
Wheel Nut, 9/16" Cone Style
16
6-109
Wheel Nut, 5/8" Cone Style
16
95188
Wheel Nut, 5/8" Flanged
NS
46-52
Oil Hub Plug
NS
