Trailer Hub/Rotor 8 Bolt On 6 1/2" Bolt Circle Dexter 10k Axles
  • 395S inner/387A outer bearings
  • Fits Dexter 10k axles
  • Capacity 5,000 lbs. per each
  • 2-pc hub/rotor
  • Available with ABS exciter ring installed
  • Hub Pilot 4.75"

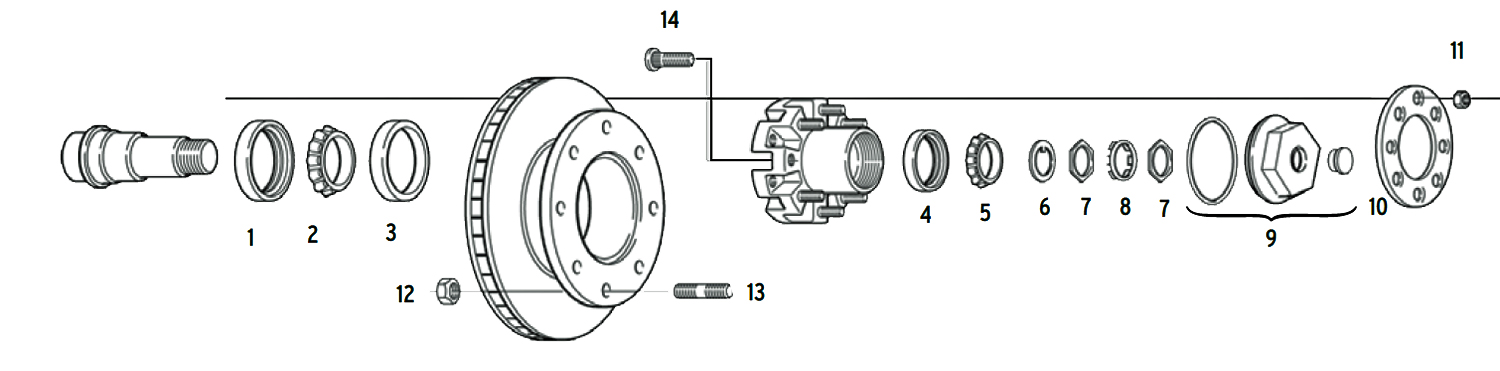

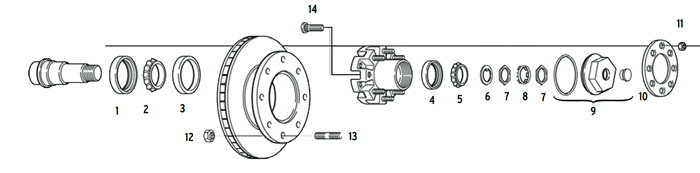

Trailer 10k Axle Hub/Rotor 8 bolt on 6 1/2 inch Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
LUB.
8-214-6
Dexter hub only with studs and races
Oil
8-214-6UC1
Dexter complete hub only assembly
Oil
70-006
Dexter rotor only Non-ABS
N/A
70-006-2
Dexter rotor only with ABS exciter ring
N/A
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-56
Oil Seal, Unitized 3.125" ID x 4.50" OD
1
395S
Inner bearing
2
394A
Inner race
3
382A
Outer Race
4
387A
Outer Bearing
5
5-60
Spindle washer, Tongue Style
6
6-84
Spindle Nut, 1 3/4" ID Fine Thread
7
5-59
Spindle washer, Tang Style
8
RG04-270
Complete Oil Cap Kit
9
33-52-1
Wheel retaining ring
10
6-109
Wheel Nut, 5/8" Cone Style
11
6-46
Rotor mounting hex nut
12
25-14
Rotor mounting hex bolt
13
7-115
Stud, 5/8" Diameter, Drive-In Style 2.75" long
14
