Trailer Hubs 4 Bolt On 4&qout; Bolt Circle BT8 Spindle
  • BT8 1" spindle L44643 inner/outer bearings
  • Capacity of 1,000 lbs. per each

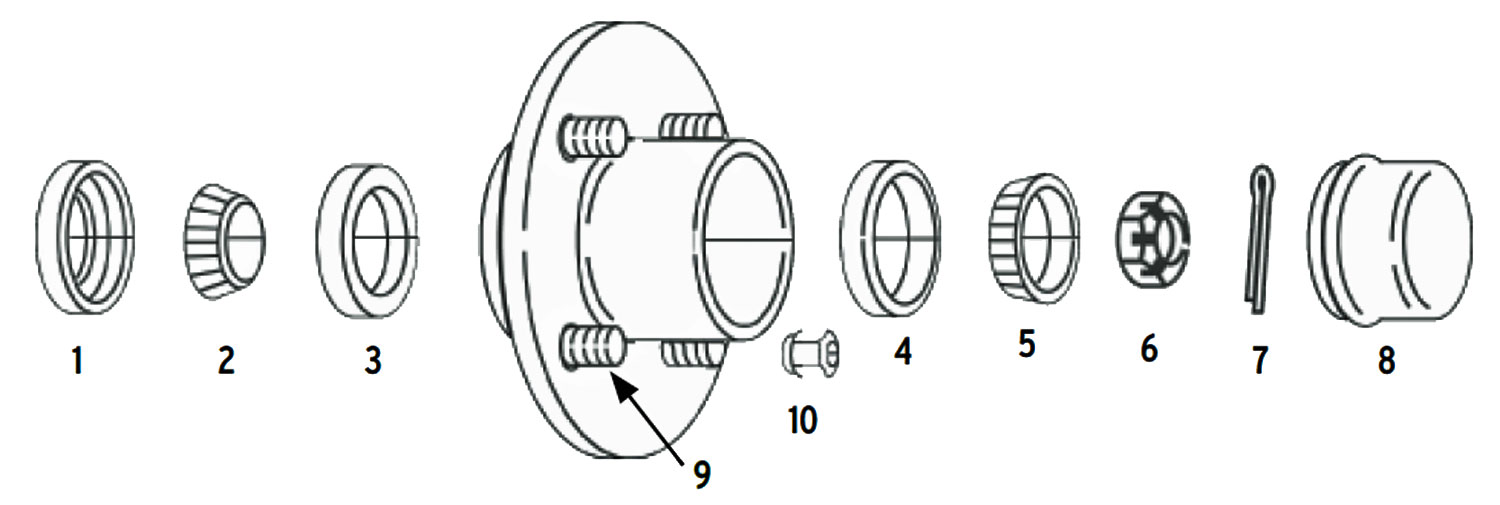

Hub trailer 4 bolt on 4 inch BT8 spindle Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
FINISH
34822
Dexter hub only with studs and races
Painted
34822UC1
Dexter complete hub assembly
Painted
H34822
Trailer Parts Pro hub only with studs and races
Painted
H34822UC1
Trailer Parts Pro complete hub assembly
Painted
H34822BX
Trailer Parts Pro complete boxed hub assembly
Painted
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
12192TB
Grease Seal, 1.983" OD X 1.249" ID, Double Lip
1
L44643
Inner/Outer Bearing
2 & 5
L44610
Inner/Outer Race
3 & 4
6-176
Spindle Nut, 1"-14 12 Castellation
6
165686
Spindle Nut, 1"-14 6 Castellation
6
165649
Cotter Pin
7
46749
Grease Cap, 1.986" OD, Drive-In
8
09251510
Stud, 1/2" Diameter, Drive-In
9
X1023R
Wheel Nut, 1/2" Cone Style
10
25-53
Stud 1/2" Diameter, Screw-In for older style idler hubs
NS
