Trailer Hubs 6 Bolt On 5 1/2" Bolt Circle With 2 1/4" Spindle Seal
  • 25580 inner/LM67048 outer bearings
  • Fits Dexter, Lippert and most other 5,200 lb. axles
  • Spindles using 2 1/4" ID grease seals
  • Standard grease or zerk-lubed spindles

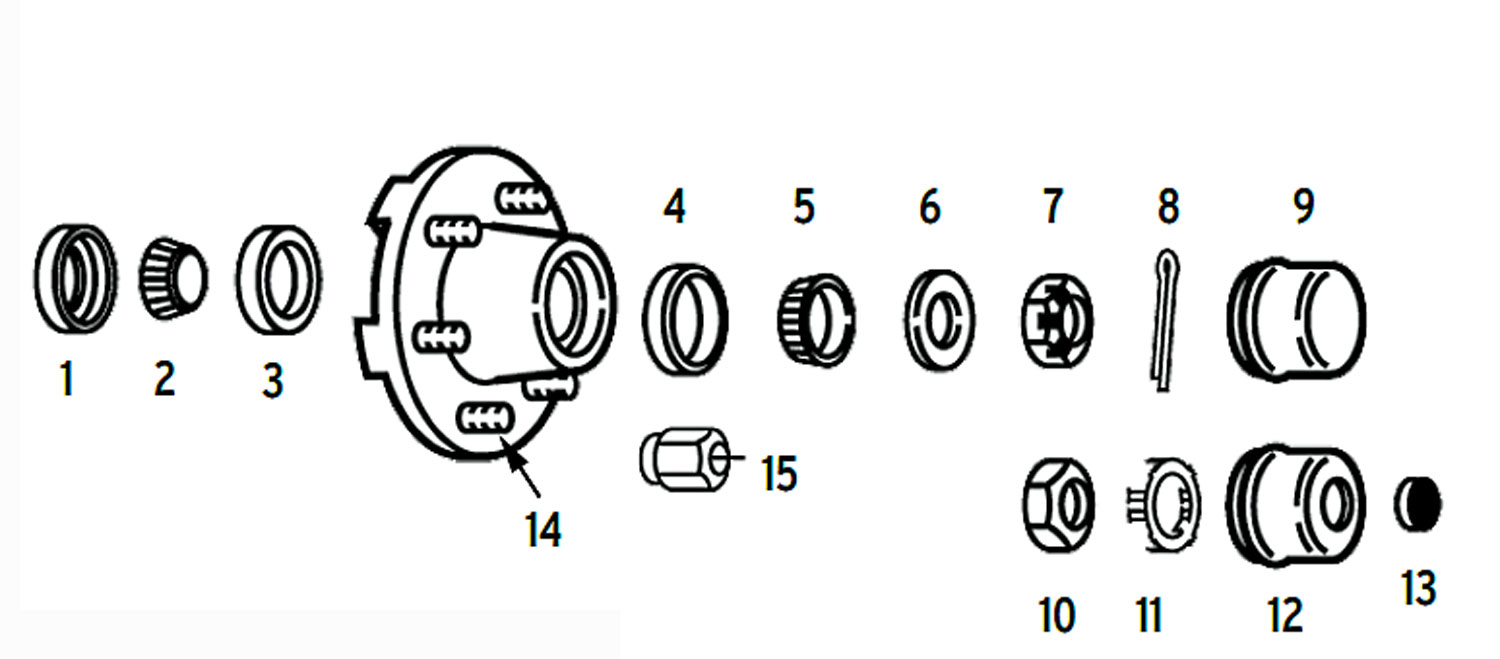

Hub trailer 6 bolt on 5 1/2" with 2 1/4" spindle seals Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
FINISH
8-213-5
Dexter hub only with studs and races
Painted
8-213-5UC1
Dexter complete hub assembly
Painted
8-213-5UC1-EZ
Dexter complete EZ-Lube hub assembly
Painted
8-213-51
Dexter hub only with studs and races
N/A
Gal-Dex
8-213-51UC1
Dexter complete hub assembly
2 1/4"
Gal-Dex
8-213-51UC1-EZ
Dexter complete EZ-Lube hub assembly
2 1/4"
Gal-Dex
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-36
Grease Seal, 3.376" OD X 2.25" ID, Double Lip
1
25580
Inner Bearing
2
25520
Inner Race
3
LM67010
Outer Race
4
LM67048
Outer Bearing
5
5-23
Spindle washer, 1" D-Style (E-Z lube after 2002)
6
6-176
Spindle Nut, 1"-14 12 Castellation
7
165686
Spindle Nut, 1"-14 6 Castellation
7
165649
Cotter Pin
8
45896
Grease Cap, 2.44" OD, Drive-In
9
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
10
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
11
21-42-1
Grease cap, 2.44" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
7-122
Stud, 1/2" Diameter, Drive-In Style 2" long standard before 2/09
14
7-150
Stud, 1/2" Diameter, Drive-In Style 2 1/4" long Zinc
14
165995
Stud, 1/2" Diameter, Drive-In Style 2 1/4" long
14
7-262
Stud, 1/2" Diameter, Drive-In Style 2.7" long standard after 02/09
14
7-262-1
Stud, 1/2" Diameter, Drive-In Style 2.7" long Zinc
14
X1023R
Wheel Nut, 1/2" Cone Style
15
