Trailer Hubs 6 Bolt On 5 1/2" Bolt Circle #84 Spindle
  • #84" spindle L68149 inner/L44649 outer bearings
  • Fits Dexter, Lippert and most other 3,500 lb. axles
  • Capacity of 1,750 lbs. per each
  • Standard grease or zerk-lubed spindles

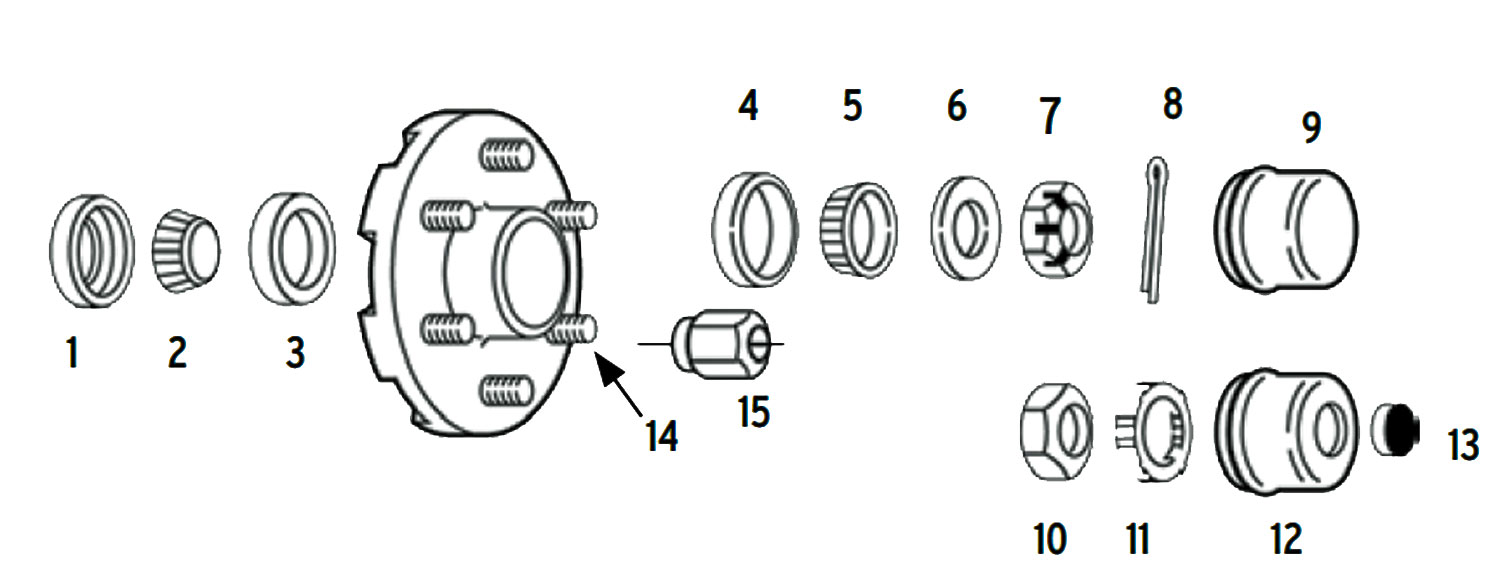

Hub trailer 6 bolt on 5 1/2" #84 spindle Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
FINISH
84655
Dexter hub only with studs and races
Painted
84655UC1
Dexter complete hub assembly
Painted
84655UC1-EZ
Dexter complete EZ-Lube hub assembly
Painted
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-19
Grease Seal, 2.565" OD X 1.719" ID, Double Lip
1
L68149
Inner Bearing
2
L68111
Inner Race
3
L44610
Outer Race
4
L44649
Outer Bearing
5
5-23
Spindle washer, 1" D-Style (E-Z lube after 2002)
6
6-176
Spindle Nut, 1"-14 12 Castellation
7
165686
Spindle Nut, 1"-14 6 Castellation
7
165649
Cotter Pin
8
46749
Grease Cap, 1.986" OD, Drive-In
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-41-1
Grease cap, 1.986" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
7-122
Stud, 1/2" Diameter, Drive-In Style 2" Long Standard
14
7-150
Stud, 1/2" Diameter, Drive-In Style 2 1/4" Long Zinc
14
X1023R
Wheel Nut, 1/2" Cone Style
15
