Triple Axle 1.75" Double Eye Spring Hanger Kits (2-7K)

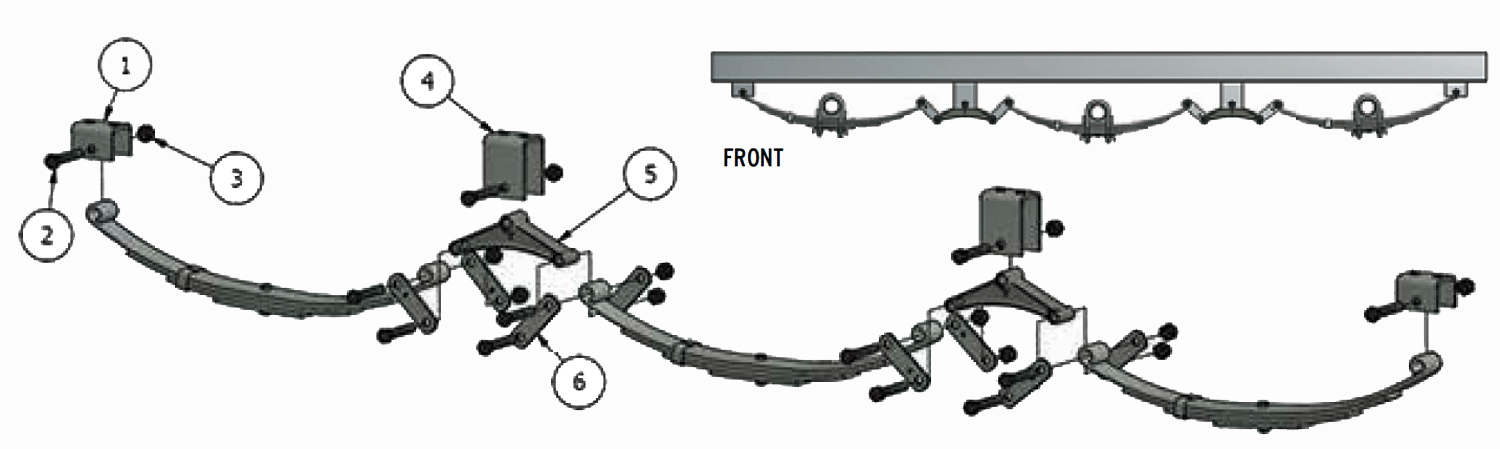

Triple Axle Double Eye 1.75 Inch Spring Hanger Illustration
Kit #
PART #
DESC
HANGERS
Hanger 1 1/2" Tall
--
4
--
Hanger 2 1/2" Tall
4
4
--
Hanger 3 1/4" Tall
--
--
8
Hanger 5 7/16" Tall 2/4" Bolt
4
--
--
EQUALIZERS
8" Straight, 3/4" Center, 9/16" End Holes
4
--
--
7 3/4" Curved, All 9/16" Holes
--
4
4
SHACKLE STRAPS
Shackle Strap 2 5/8" Long
16
16
16
BOLTS-NUTS
Shackle Bolt 9/16" X 3"
20
24
24
9/16" Hex Lock Nut
20
24
24
Wet Equalizer Bolt, 3/4" X 3 1/2"
4
--
--
3/4" Castle Nut
4
--
--
Cotter Pin 2 1/4"
4
--
--
Grease Zerk 1/8" MPT
4
--
--
