#12V Torflex® Axle Specifications

Suspension:

Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • 8 on 6 1/2" (1/2, 9/16, or 5/8" Studs)

Brake Options:

  • 12 1/4" x 2 1/2" Electric Only

Spindles:

Uses 25580 Inner/02475 Outer Bearing.
  • Long

Tubing:

  • 3.50" OD Square

Lubrication:

  • Grease
  • E-Z Lube®
  • Oil Bath
  • Nev-R-Lube®

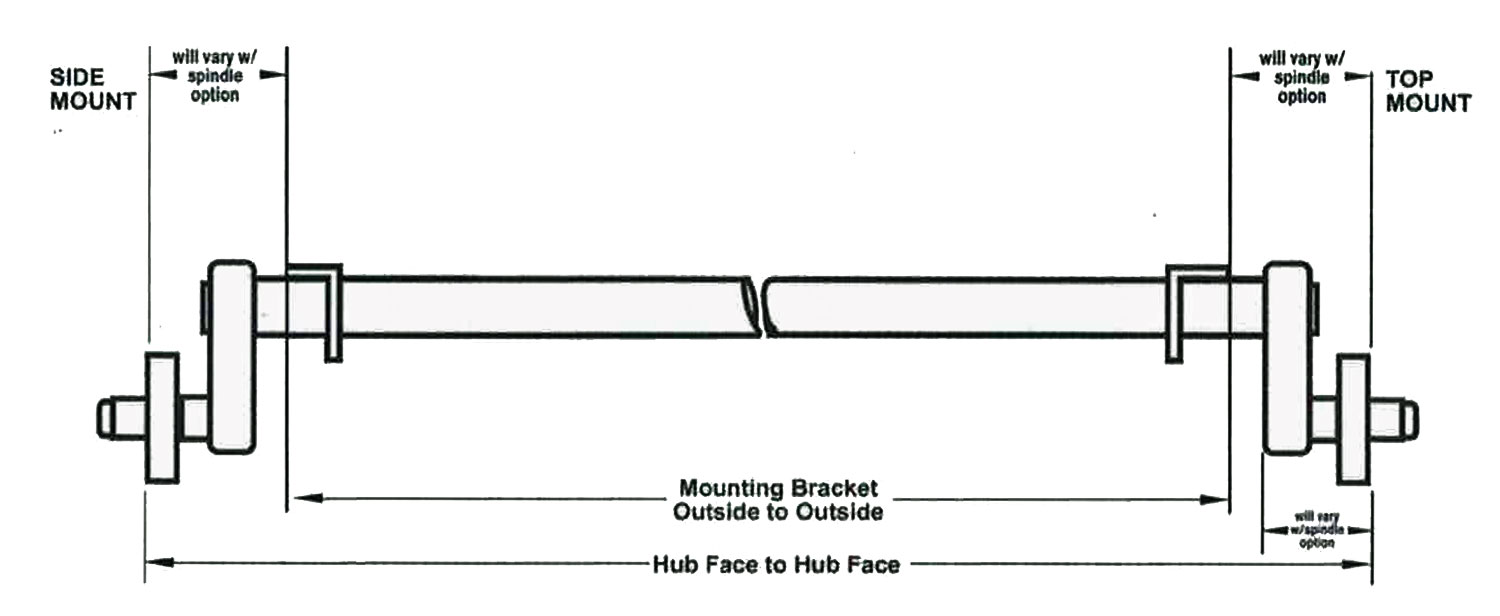

#12V Torflex® Mounting Details
Dexter Torflex Overhang Restrictions
Overhang Restrictions
SPINDLE
HUB TYPE
MINIMUM
MAXIMUM
Long
Drum
14.00"
29.55"
Full Load Dimensions
Dexter Torflex Axle Full Load Dimensions
Dexter Torflex Axle Full Load Dimensions
Dexter Torflex Axle Full Load Dimensions

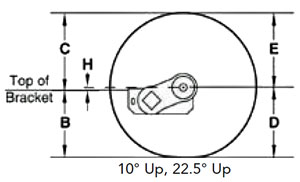

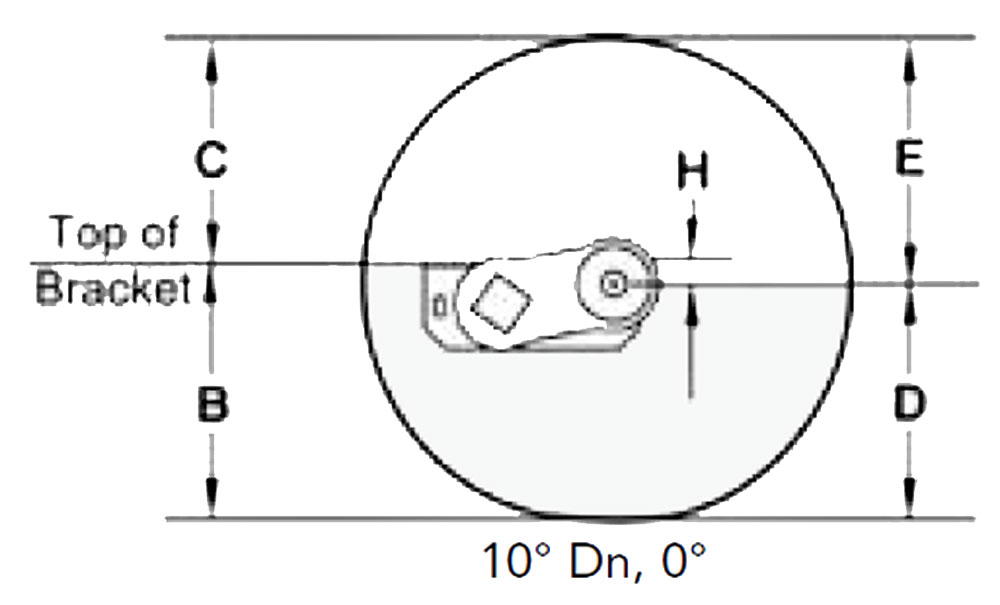

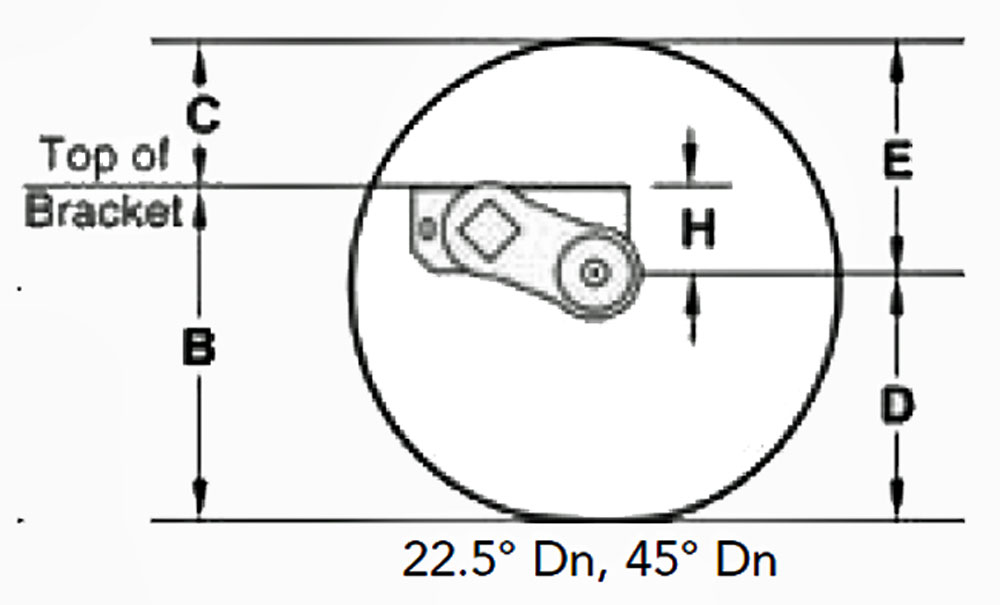

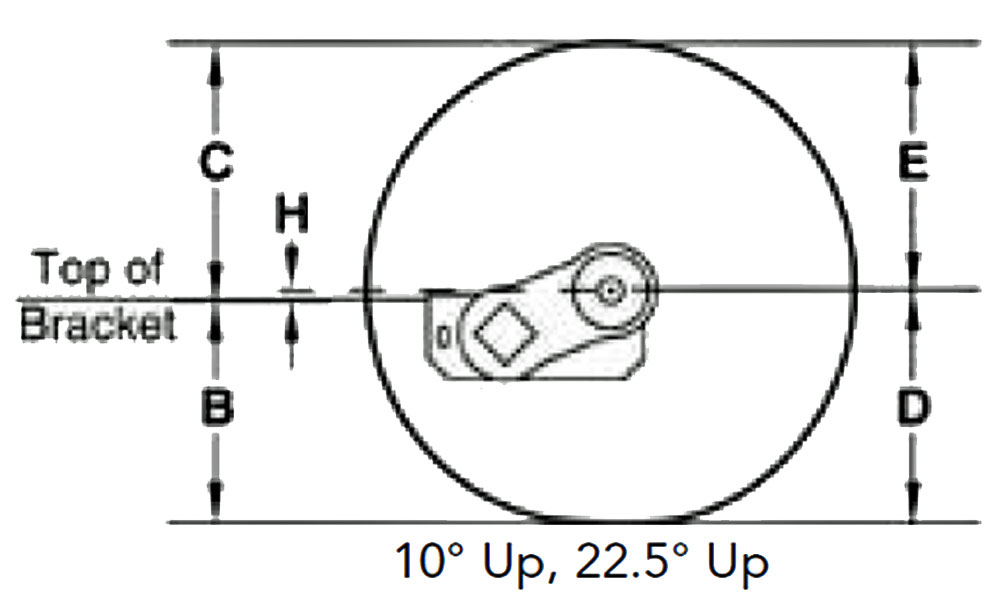

H=Center Line of Spindle to top of bracket. B=Top of bracket to ground. C=Top of bracket to top of tire.
D=Center Line of spindle to ground. E=Center Line of spindle to top of tire.
Start Angle

45° Down
22.5° Down
10° Down
0°
10° Up
22.5° Up

Tire
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
LT235/85R16
4.3
18.6
11.1
2.0
16.3
13.4
0.7
15.0
14.7
-0.3
14.0
15.7
-1.2
13.1
16.6
-2.2
12.1
17.6
14.3
15.4
7.50-16LT
4.3
19.2
12.4
2.0
16.9
14.7
0.7
15.6
16.0
-0.3
14.6
17.0
-1.2
13.7
17.9
-2.2
12.7
18.9
14.9
16.7
9.50-16.5LT
4.3
18.4
10.9
2.0
16.1
13.2
0.7
14.8
14.5
-0.3
13.8
15.5
-1.2
12.9
16.4
-2.2
11.9
17.4
14.1
15.2
Start Angle

45° Down

Tire
H
B
C
D
E
LT235/85R16
4.3
18.6
11.1
14.3
15.4
7.50-16LT
4.3
19.2
12.4
14.9
16.7
9.50-16.5LT
4.3
18.4
10.9
14.1
15.2

22.5° Down

Tire
H
B
C
D
E
LT235/85R16
2.0
16.3
13.4
14.3
15.4
7.50-16LT
2.0
16.9
14.7
14.9
16.7
9.50-16.5LT
2.0
16.1
13.2
14.1
15.2

10° Down

Tire
H
B
C
D
E
LT235/85R16
.07
15.0
14.7
14.3
15.4
7.50-16LT
.07
15.6
16.0
14.9
16.7
9.50-16.5LT
.07
14.8
14.5
14.1
15.2

0°

Tire
H
B
C
D
E
LT235/85R16
-0.3
14.0
15.7
14.3
15.4
7.50-16LT
-0.3
14.6
17.0
14.9
15.7
9.50-16.5LT
-03
13.8
15.5
14.1
15.2

10° Up

Tire
H
B
C
D
E
LT235/85R16
-1.2
13.1
16.6
14.3
15.4
7.50-16LT
-1.2
13.7
17.9
14.9
16.7
9.50-16.5LT
-1.2
12.9
16.4
14.1
15.2

22.5° Up

Tire
H
B
C
D
E
LT235/85R16
-2.2
12.1
17.6
14.3
15.4
7.50-16LT
-2.2
12.7
18.9
14.9
16.7
9.50-16.5LT
-2.2
11.9
17.4
14.1
15.2
Articulation Dimensions

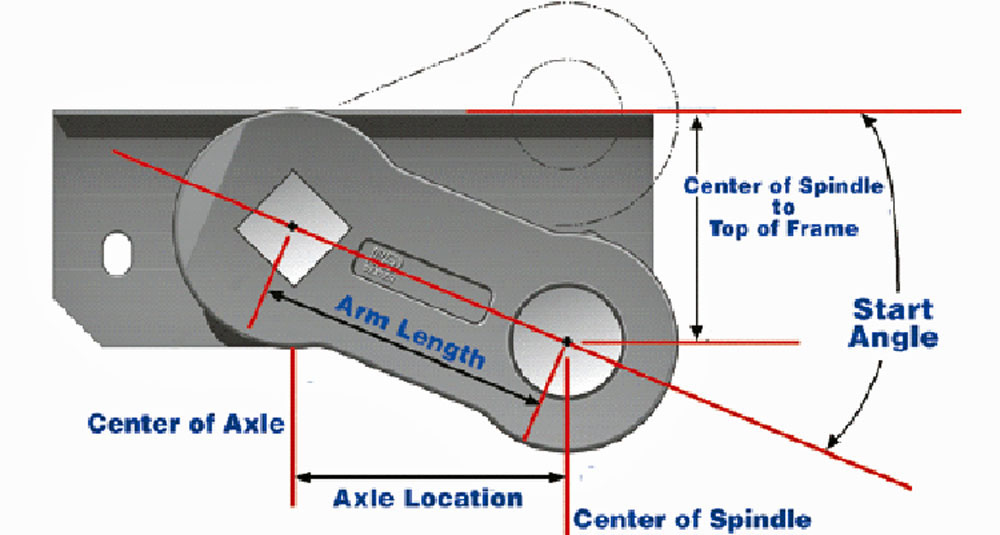

Dexter Torflex Start Angle Illustration
No
 Load
Full
Load
Start Angle
Bracket Profile
H
L
H
L
45° Down
Low
6.24"
4.24"
4.30"
5.54"
45° Down
High
6.99"
4.24"
5.05"
5.54"
32° Down
Low
5.18"
5.09"
2.99"
5.92"
32° Down
High
5.93"
5.09"
3.74"
5.92"
22° Down
Low
4.30"
5.54"
2.00"
6.00"
22° Down
High
5.05"
5.54"
2.75"
6.00"
10° Down
Low
3.04"
5.91"
0.70"
5.86"
10° Down
High
3.79"
5.91"
1.45"
5.86"
0°
Low
2.00"
6.00"
-0.30"
5.54"
0°
High
2.75"
6.00"
0.45"
5.54"
10° Up
Low
0.96"
5.91"
-1.22"
5.06"
10° Up
High
1.71"
5.91"
-0.47"
5.06"
22° Up
Low
-0.30"
5.54"
-2.24"
4.24"
22° Up
High
0.45"
5.54"
-1.49"
4.24"
