Kodiak 2K Trailer Disc Brakes
  • Fits BT-16 Spindle
  • Disc Kit includes Rotors, Calipers w/pads & and Brackets for one axle.

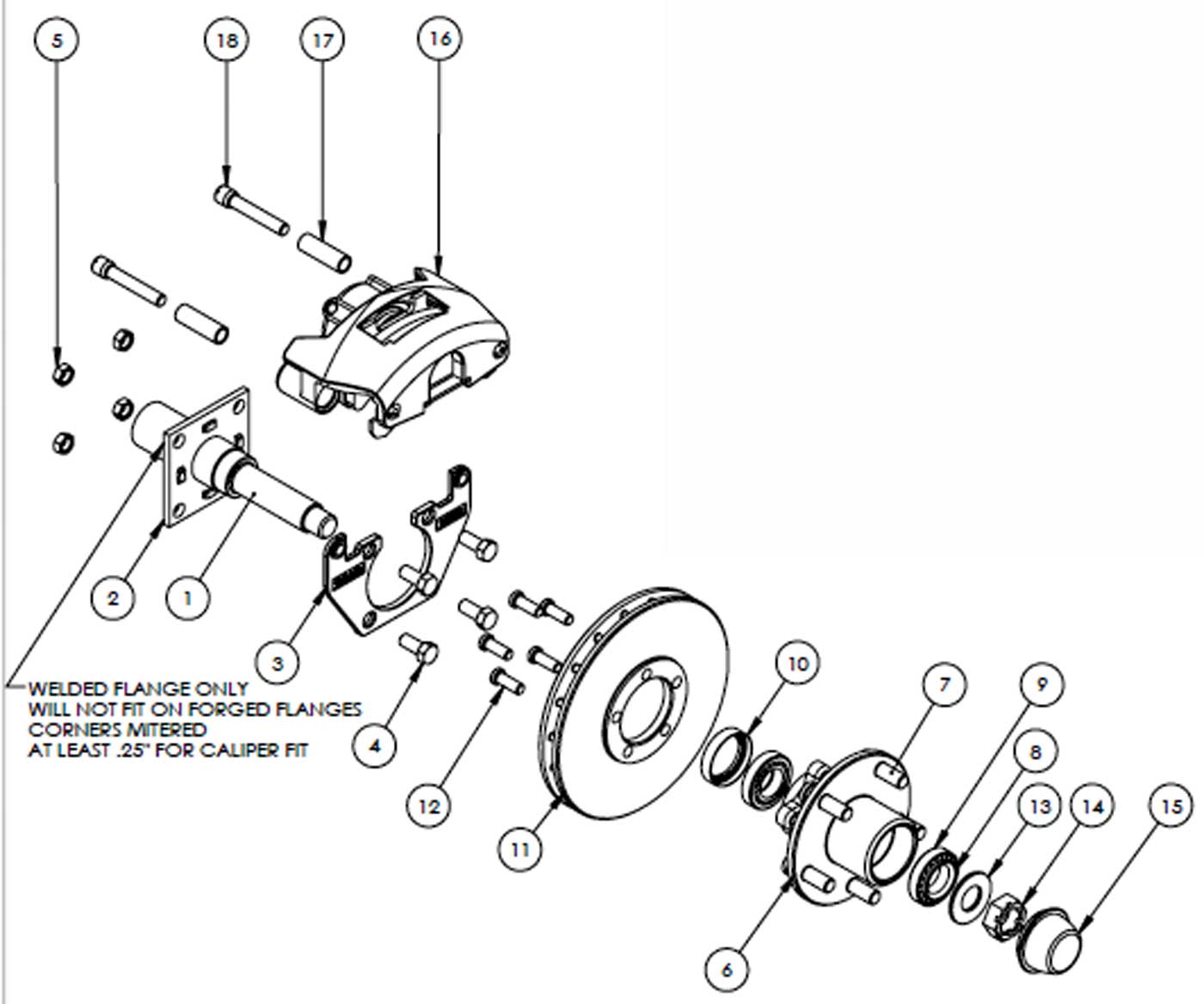

Kodiak 2K 8 Inch Rotor Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
2/H-8-2-EEEE
Bolt-On/Weld-On 2K Kodiak One Axle Disc Brake Set 8" Rotor E-Coat 10-13" Wheels.
2/H-8-2-DDDD
Bolt-On/Weld-On 2K Kodiak One Axle Disc Brake Set 8" Rotor DAC 10-13" Wheels.
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
BT-16 Spindle
1
N/A
Brake Flange Weld-On
2
CMB-8-2B-E
E-coated caliper mounting bracket bolt-on
3
CMB-8-2B-DAC
Dacromet coated caliper mounting bracket bolt-on
3
CMB-8-2W-E
E-coated caliper mounting bracket Weld-On
3
CMB-8-2W-D
Dacromet coated caliper mounting bracket Weld-On
3
N/A
N/A
7/16X1UNC bracket mounting bolt
4
N/A
N/A
7/16UNC bracket mounting nut
5
H/S-BT16-E
E-coated hub/spacer; 545 bolt pattern; 1/2" wheel bolts
6
H/S-BT16-D
Dacromet coated hub/spacer; 545 bolt pattern; 1/2" wheel bolts
6
R/H-LB-1.69
1/2-20 x 1.69 GR 8 Yellow Zinc Wheel Bolt; 0.544" knurl diameter
7
L44649
Inner and outer bearing cones
8
L44610
Inner and outer bearing cups
9
BT Seal
BT spindle grease seal
10
ROTOR-8-2-E
8" E-coated rotor (bolts to Hub/Spacer BT-16-E)
11
ROTOR-8-2-D
8" dacromet coated rotor (bolts to Hub/Spacer BT-16-E)
11
H/S-BT16-BOLT
Low profile 3/8-16x1 hex bolt
12
N/A
Spindle Washer
13
N/A
Spindle Nut
14
N/A
Dust Caps
15
DBC-225-SB-E
DBC-225-SB-E
E-coated lever actuated mechanical parking brake caliper; ceramic pads
16
DBC-225-SB-D
Dacromet coated loaded caliper for surge brake only with ceramic pads
16
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
DBC-MHBS
Stainless Steel Guide Bolt Sleeve
17
DBC-MHGB
Stainless steel guide bolt (M11 x 1.5) w/Thread Locker (5/16" Allen or 1/2" Hex)
18
DBC-225-CERM-PAD
Friction Pads (Ceramic Standard)
N/S
DBC-225-CERM-PAD-SS
Friction Pads (Ceramic with stainless steel backing plate)
N/S
DBC-225-PSTN-SS
2 1/4" Stainless Steel Piston
N/S
DBC-225-SEAL
EPDM Piston Seal #4986
N/S
DBC-225-BOOT-SI
Silicone Dust Boot #4985
N/S
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
N/S
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
N/S
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
N/S
DBC-MHBSB
EPDM Bushing For Guide Bolt Sleeve
N/S
N/A
DBC-MB
O-ring for Guide Bolt Sleeve (Use For OLDER Design) Reference Only
N/S
DBC-225-K
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston
N/S

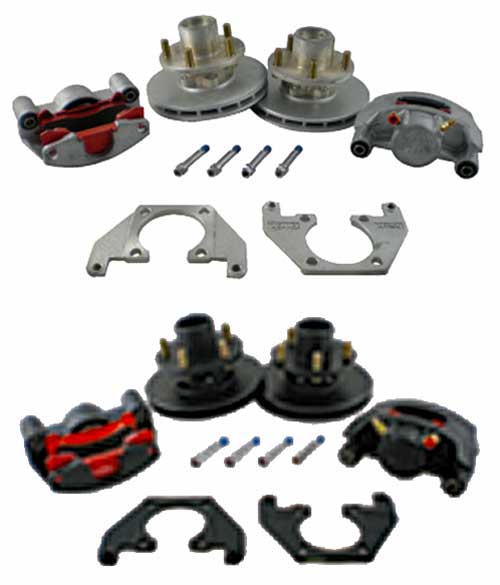

Kodiak 2K 8 Inch Rotor Disc Brake Kits
