Kodiak 3.5K 10" Rotor Surge Trailer Disc Brakes
  • L68149 Inner/L44649 Outer Bearings
  • Fits #84 Spindle (Most 3,500 lb. axles)
  • Economical Slip-On Rotor Design
  • Disc Kit includes Rotors, Calipers & Brackets for one axle.

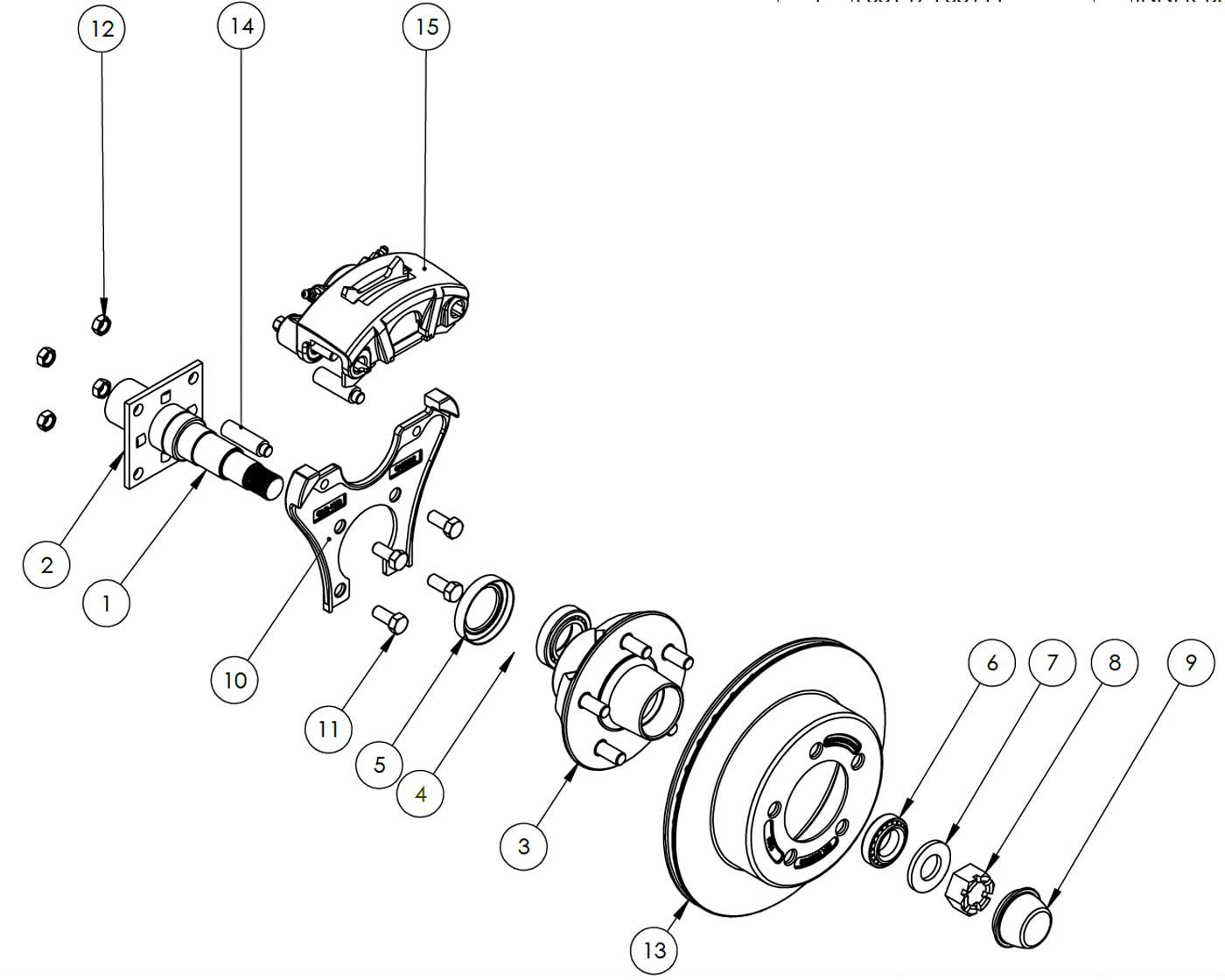

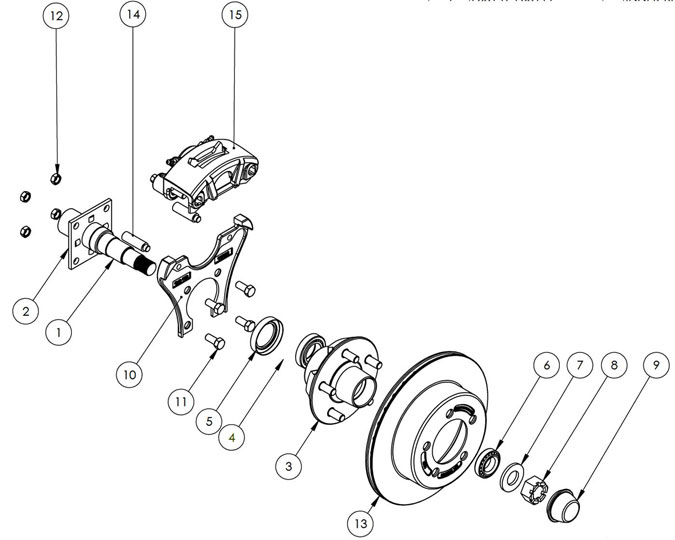

Kodiak 3.5K 10 Inch Rotor Surge Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
2/R-10-DDD-SB
Kodiak One Axle Disc Brake Set 3.5K Dacromet 10"
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
#84 Spindle
1
N/A
Brake Flange
2
3K 545 Hub
3
L68149
Inner Bearing Cone
4
L68111
Inner Bearing Cup
4
473336
Seal 473336 (NATIONAL)
5
L44649
Outer bearing cone
6
L44610
Outer bearing cup
6
N/A
Spindle Washer
7
N/A
Spindle Nut
8
N/A
Dust Caps
9
CMB-10-SB-D
Dacromet coated mounting bracket for ROTOR-10SB only
10
7/16X1.00NF Bracket Mounting Bolt Reference Only
11
7/16NF Bracket Mounting Nut Reference Only
12
RTR-10-SB-D
10" dacromet coated rotor (fits 545 idler hub and 204 SB caliper only)
13
DBC-204-SB-D
Loaded dacromet coated caliper for 10" rotor; ceramic pads
15
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
DBC-204-MHSB
Shoulder bolt
14
DBC-204-CRM-PAD
Friction Pads (Ceramic Standard on 204SB caliper)
N/S
DBC-204-PSTN-KG
2.04" KodaGuard® coated piston; standard in 204SB caliper
N/S
DBC-204-SEAL
EPDM piston seal for 2.04" piston
N/S
DBC-204-BOOT
EPDM Dust Boot
N/S
DBC-204-MHSBB
Shoulder bolt bushing
N/S
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
N/S
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
N/S
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
N/S

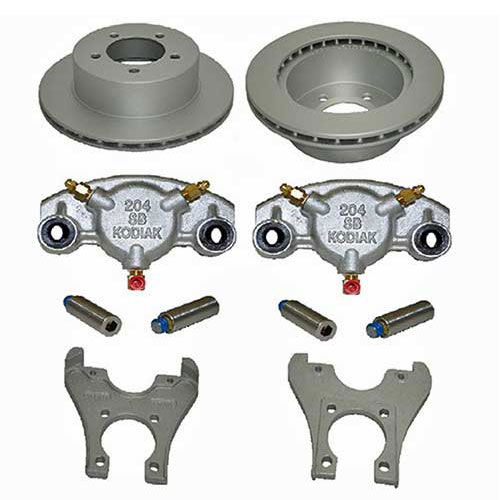

Kodiak 3.5K 10 Inch Rotor Surge Disc Brake Kit
