PART NO.
REF. NO.
DESCRIPTION
ITEM

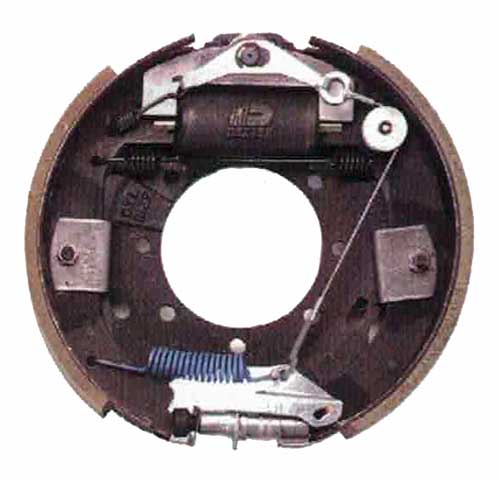

K23-408-00
Dexter complete brake assembly left hand 12k Per Pair
K23-409-00
Dexter complete brake assembly right hand 12k Per Pair
23-408
179825
Dexter complete brake assembly left hand 12k Per Pair Reference Only New P/N Above
23-409
179850
Dexter complete brake assembly right hand 12k Per Pair Reference Only New P/N Above

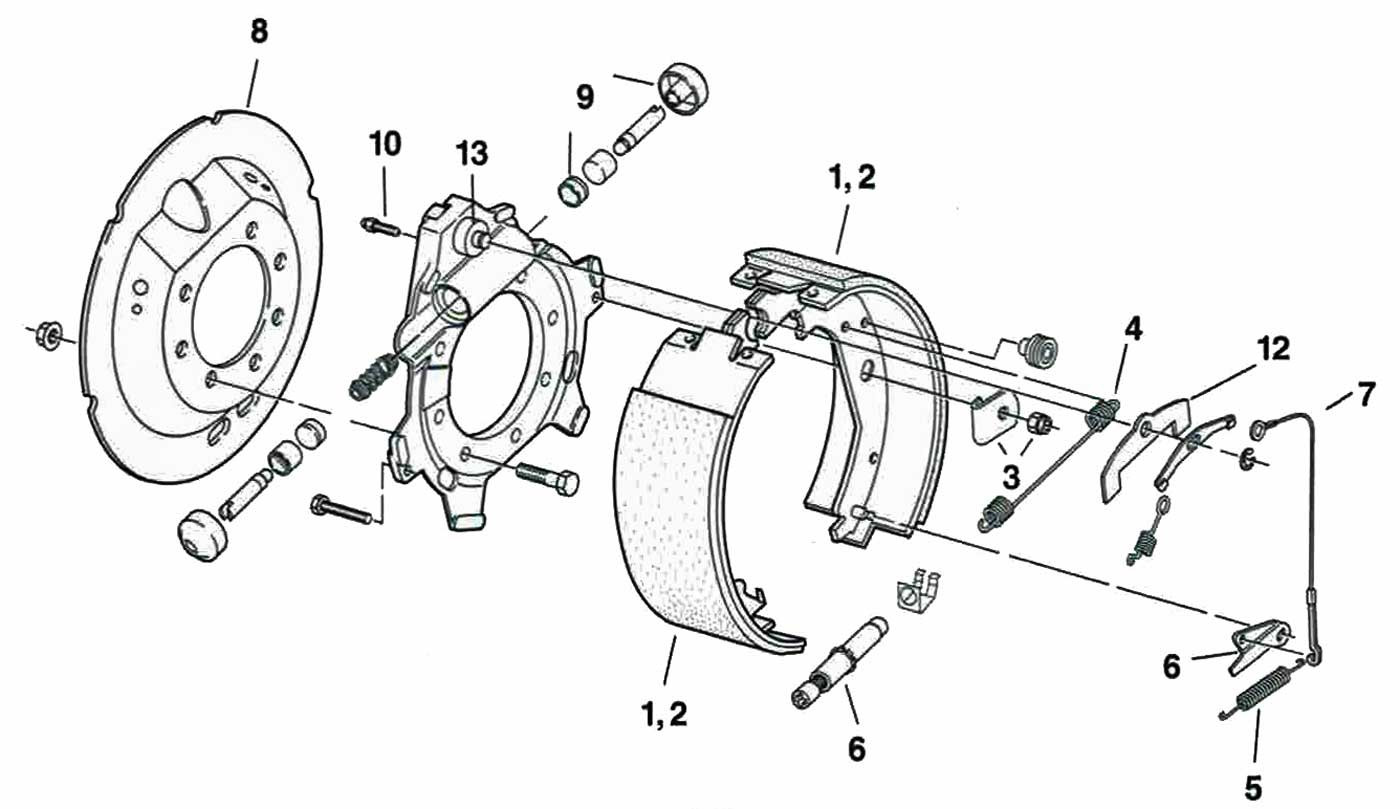

PART NO.
REF. NO.
DESCRIPTION
ITEM
6-17
7/16"-20 brake mounting nut
1
BP15-190
Brake Dust Shield (One Piece)
3
BP16-050
Wheel Cylinder Rebuild Kit (1.25 Inch Bore)
4
36-63-6
235038
Brake spider Discontinued Reference Only
5
7-113
Shoe hold down screw
6
D097-004-00
ABS sensor - straight
7
24-204
ABS sensor mounting block
8
D097-002-00
ABS sensor retaining clip
9
7-116
7/16"-20 Brake mounting bolt
10
BP04-380
Shoe/Lining Left Hand (One Wheel)
11
BP04-390
Shoe/Lining Right Hand (One Wheel)
11
46-132
Adjuster clip - thread end
12
BP13-033
225610
Adjuster Cable and Retainer, 1987-96 (14 Inch Long) Discontinued Reference Only
13
BP10-150
Adjuster kit forward adjust, left hand, (After Feb 97)
13
BP10-160
Adjuster kit forward adjust, right hand, (After Feb 97)
13
46-133
Adjuster clip - barrel end
14
BP06-235
Shoe Hold Down Kit
15
BP07-240
Shoe return spring
16
54-33
Cylinder Push Rod 2 per wheel required
18
BP10-135
Adjuster Lever and Spring Left Hand
19
BP10-145
Adjuster Lever and Spring Right Hand
19
34-62
Piston Stop Bar, After 1987
20
BP08-150
Adjuster Spring (pre Feb 97)
NS
