Dexter 12 1/4 x 5" Electric Brake Stamped Backing Plate
  • Capacity: 12,000 Lbs. Per Pair
  • 7 bolt flange
  • Redesigned with a cast backing plate in May of 2000
  • Complete stamped backing plate assembly is no longer available

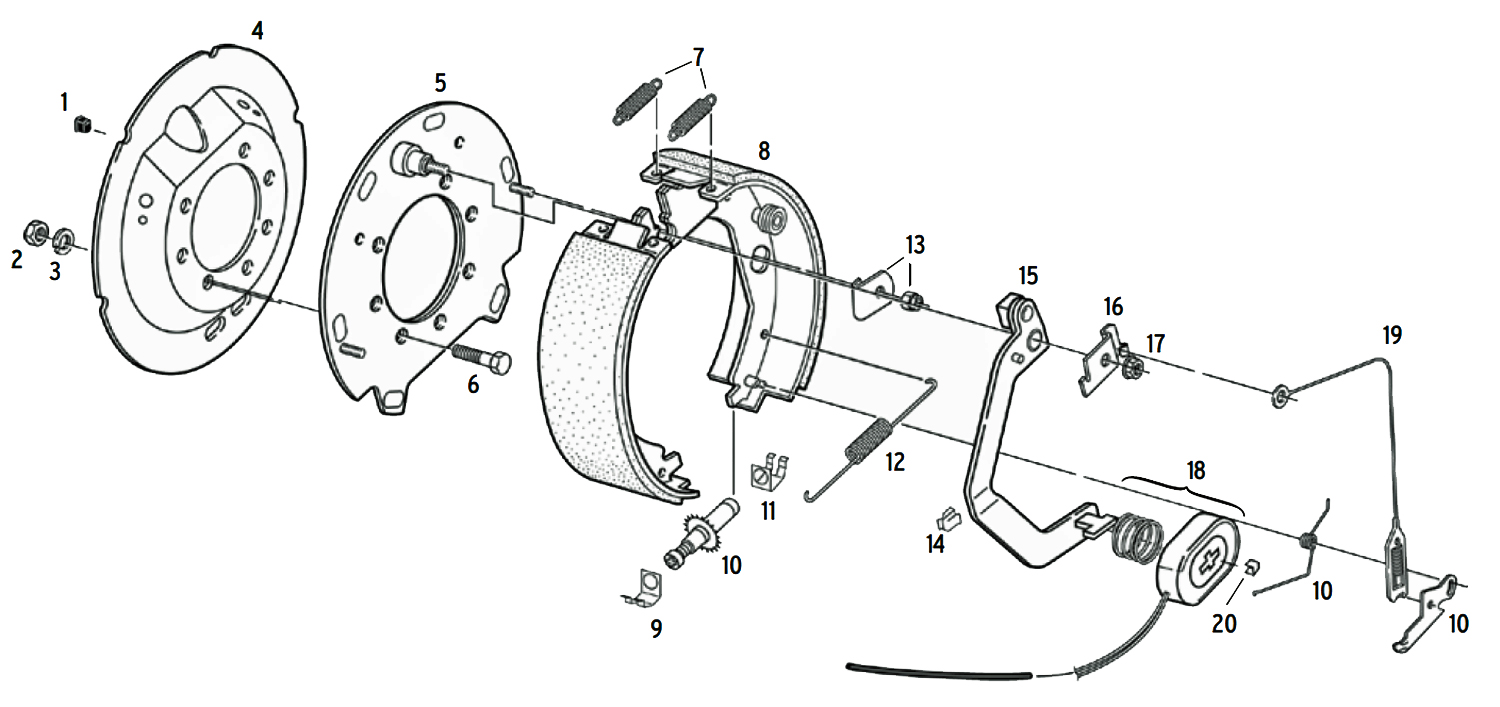

Dexter 12 1/4 x 5 Inch Stamped Backing Plate Electric Brake Parts Illustration
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
6-17
7/16" brake mounting nut
2
5-8
7/16" brake mounting lock washer
3
BP15-190
Brake Dust Shield Metal
4
36-72-6
Backing plate
5
7-116
7/16"-20 brake mounting bolt
6
BP07-225
Shoe Return Spring Set (one Each Green & Black)
7
BP04-360
Shoe & Lining (One Wheel) Left Hand
8
BP04-370
Shoe & Lining (One Wheel) Right Hand
8
46-132
Adjuster clip - thread end
9
BP10-135
Adjuster, Lever & Spring, Left Hand
10
BP10-145
Adjuster, Lever & Spring, Right Hand
10
46-133
Adjuster clip - barrel end
11
BP08-150
Adjuster Spring
12
BP06-240
Shoe Hold Down Kit (One Wheel)
13
27-39
Magnet wire clip
14
47-123-36
Actuating Arm left hand
15
47-123-35
Actuating Arm right hand
15
71-455-1
Arm/Shoe Retainer, Left Hand
16
71-455-2
Arm/Shoe Retainer, Right Hand
16
6-92
7/16"-20 Flange locking nut
17

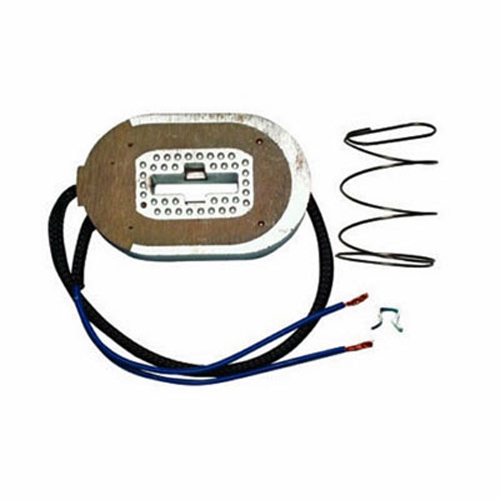

BP01-306
Magnet Kit (Black Wire) 12,000 lbs.
18
BP13-020
Adjuster Cable
19
BP19-005
Magnet Retainer Clip, Pkg of 4
20
Dexter 12 1/4 x 5 Inch Stamped Backing Plate Electric Brake Assemblies
