Kodiak 3.5K 10" Integral Hub/Rotor Trailer Disc Brakes
  • L68149 Inner/L44649 Outer Bearings
  • Fits #84 Spindle (Most 3,500 lb. axles)
  • Standard Grease & Ez-Lube Applications
  • Disc Kit includes Hub/Rotors, Calipers & Brackets for one axle.

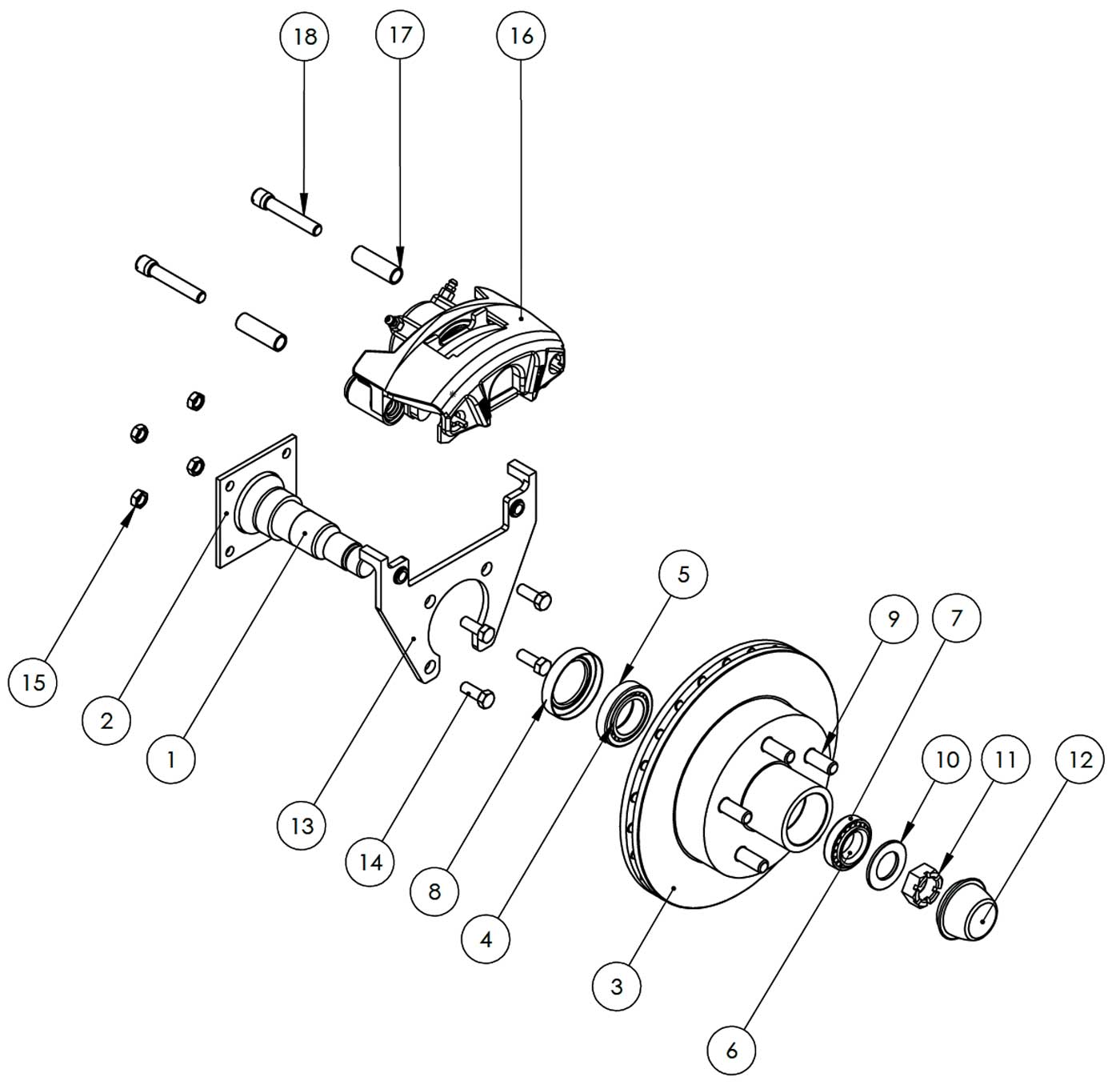

Kodiak 3.5K 10 Inch Integral Hub/Rotor Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
2/H-10-DDD
Kodiak One Axle Integral Disc Brake Set 3.5K Dacromet 10"
2/H-10-DKD
Kodiak One Axle Integral Disc Brake Set 3.5K Dacromet 10" KodaGuard® Coated Calipers
2/H-10-DSD
Kodiak One Axle Integral Disc Brake Set 3.5K Dacromet 10" Stainless Steel Calipers
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
#84 Spindle
1
N/A
#84 Brake Flange
2
ROTOR/HUB-10-DAC
10" dacromet coated integral hub/rotor with 545 bolt pattern; fits #84 spindle
3
L68149
Inner Bearing Cone
4
L68111
Inner Bearing Cup
5
L44649
Outer bearing cone
6
L44610
Outer bearing cup
7
473336
Seal 473336 (NATIONAL)
8
R/H-LB-1.69
1/2-20 x 1.69 GR 8 Yellow Zinc Wheel Bolt; 0.544" knurl diameter
9
N/A
Spindle Washer
10
N/A
Spindle Nut
11
N/A
Dust Caps
12
CMB-10I-D
Dacromet coated caliper mounting bracket for 10" integral hub/rotor
13
3/8-16UNCx1.00 HEX BOLT Reference Only
14
3/8-16UNC NUT Reference Only
15
DBC-225-D
Loaded dacromet coated caliper for 10" rotor; ceramic pads
16
DBC-225-D-BPSS
Loaded dacromet coated caliper for 10" rotor; ceramic pads with stainless steel backing plates
16
DBC-225-KG
Loaded KodaGuard® coated caliper for 10" rotor; ceramic pads with stainless steel backing plates
16
DBC-225-SS
Loaded stainless steel caliper for 10" rotor; ceramic pads with stainless steel backing plates
15
DBC-225-PB-D
Dacromet coated lever actuated mechanical parking brake caliper; ceramic pads
16
ALN-1375-SS
1/2'-20 X 1.375" Acorn Lug Nut, 60 Degree, Stainless Steel
N/S
CMB-10-LOCKNUT
7/16"-20 Zinc NF grade 5 nylon insert Locknut
N/S
CMB-10-BOLT
7/16"-20 x 1 1/4" zinc NF grade 5 hex bolt for mounting bracket to brake flange
N/S
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
DBC-MHBS
Stainless Steel Guide Bolt Sleeve
19
DBC-MHGB
Stainless steel guide bolt (M11 x 1.5) w/Thread Locker (5/16" Allen or 1/2" Hex)
20
DBC-225-CERM-PAD
Friction Pads (Ceramic Standard)
N/S
DBC-225-CERM-PAD-SS
Friction Pads (Ceramic with stainless steel backing plate)
N/S
DBC-225-PSTN-SS
2 1/4" Stainless Steel Piston
N/S
DBC-225-SEAL
EPDM Piston Seal #4986
N/S
DBC-225-BOOT-SI
Silicone Dust Boot #4985
N/S
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
N/S
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
N/S
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
N/S
DBC-MHBSB
EPDM Bushing For Guide Bolt Sleeve
N/S
N/A
DBC-MB
O-ring for Guide Bolt Sleeve (Use For OLDER Design) Reference Only
N/S
DBC-225-K
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston
N/S

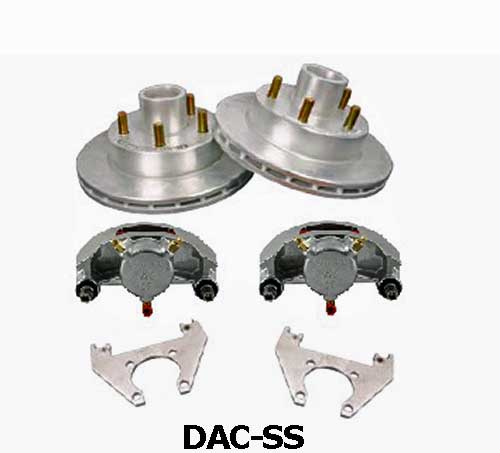

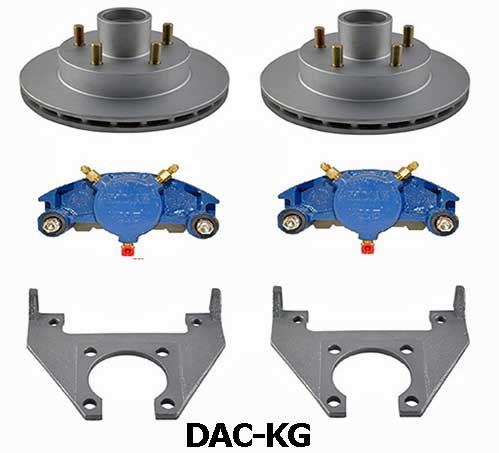

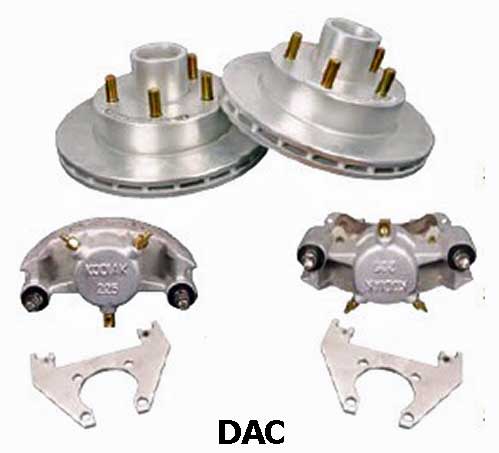

Kodiak 3.5K 10 Inch Integral Hub/Rotor Dacromet Disc Brake Kits Kodiak 3.5K 10 Inch Integral Hub/Rotor Dacromet/KodaGuard Disc Brake Kits Kodiak 3.5K 10 Inch Integral Hub/Rotor Dacromet/Stainless Steel Disc Brake Kits
