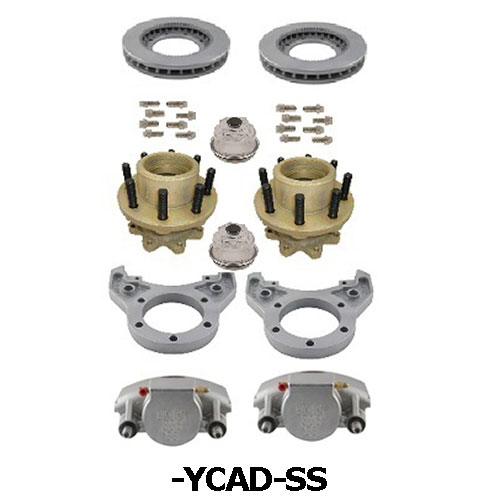

| 2/RCMHS-13-10Q-YCAD-SS

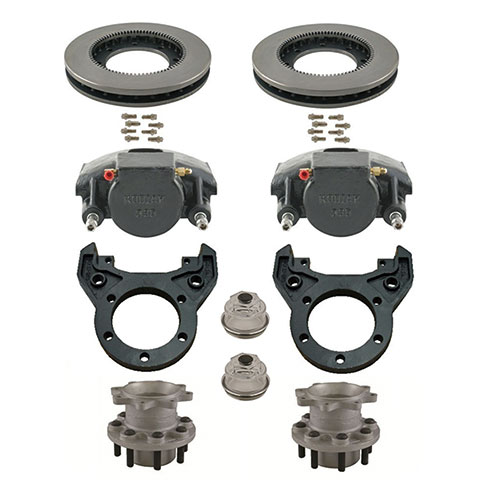

Kodiak Rockwell American 10k single wheel with torsion suspension one axle Disc Brake Set dacromet rotor, stainless steel caliper 4.75" Pilot Std.

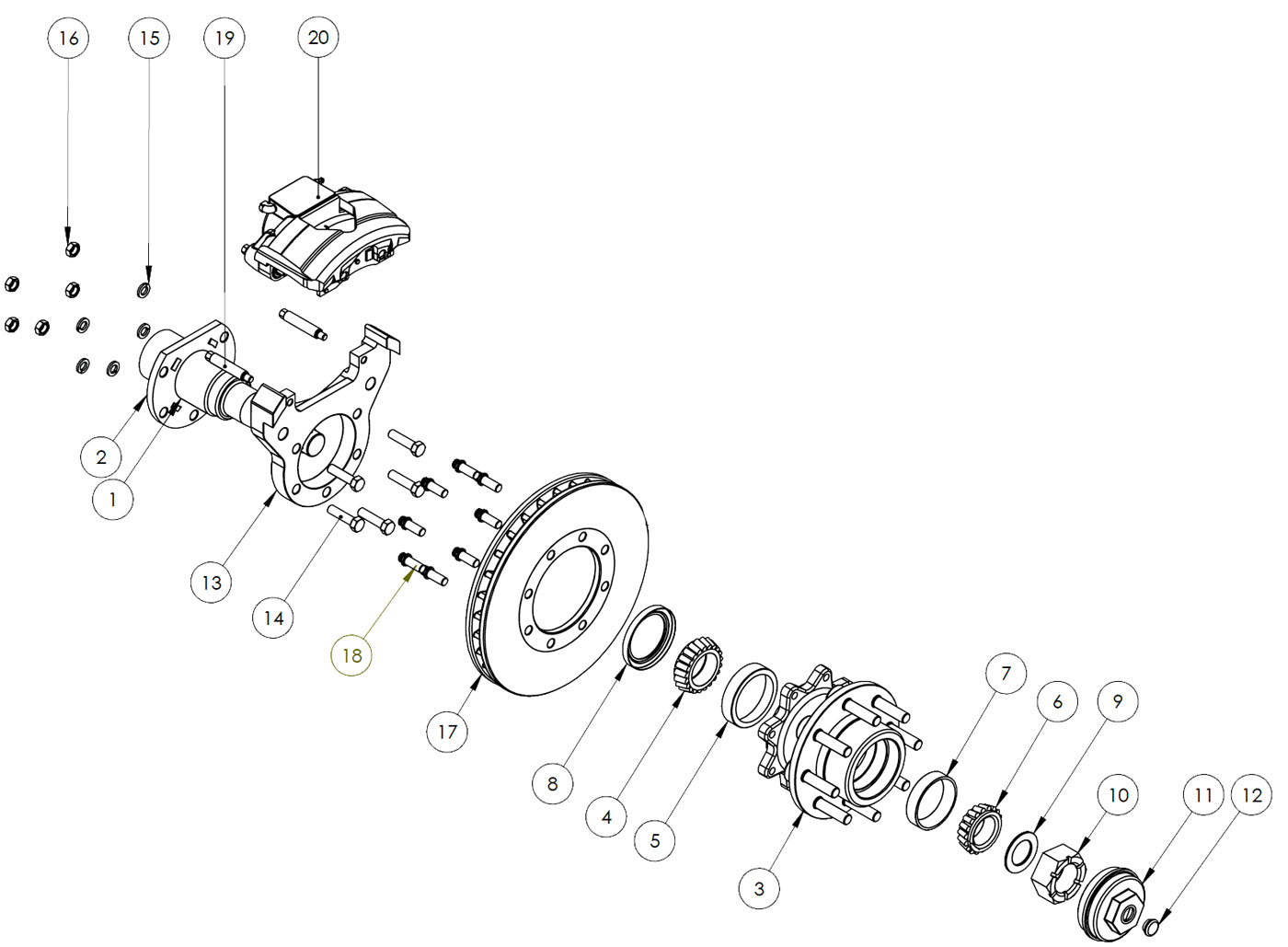

PART NO.
DESCRIPTION
ITEM
Reference
10k 5 hole brake flange
2
10K hub spacer for #99 spindle. (Brake flange to inner bearing shoulder = 3.89". 4.88" Pilot Std.
3
Dacromet coated 10K hub spacer for #99 spindle. (Brake flange to inner bearing shoulder = 3.89". 4.88" Pilot Std.
3
10K hub spacer for #99 spindle. (Brake flange to inner bearing shoulder = 3.89". 4.75" Pilot (special order only)
3
Oil Seal
Oil Seal 568303 OR 091030
8
Q-10-14K-PCAP
Polycarbonate cap assembly with O-ring and rubber plug
11
Oil lube plug for 8K - 14K, polycarbonate cap
12
E-coated caliper mounting bracket for Rockwell American 10K five hole brake flange
13
Dacromet coated caliper mounting bracket with 5 holes for 9 & 10K Rockwell American axle
13
Reference
1/2-20UNF x 2 Hex Bolt
14
Reference
1/2 LOCKWASHER
15
Reference
1/2-20UNF NUT
16
13" Rotor automotive finish 10K axle
17
13" Dacromet coated rotor 10K axle
17
1/2-13UNCx1 1/4 Flange Head
18
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston
20
Loaded Dacromet coated caliper for 10K rotor; ceramic pads; nickel chrome piston
20
Loaded Stainless Steel caliper for 10K rotor; ceramic pads; nickel chrome piston
20
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston; with mounting clips
20
CALIPER REPLACEMENT PARTS
PART NO.
DESCRIPTION
ITEM
Zinc plated steel guide bolt for DBC-338 caliper
19
Stainless steel guide bolt for DBC-338 caliper
19
Zinc plated steel sleeve for guide bolt sleeve for DBC-338 caliper
19
Stainless steel guide bolt sleeve for DBC-338 caliper
19
3-3/8" nickel/chrome plated steel piston; standard in E-coat calipers
N/S
3 3/8" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
N/S
EPDM dust boot for 338 piston
N/S
Guide bolt sleeve bushing for DBC-338 caliper
N/S
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
N/S
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
N/S
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
N/S
Ceramic pad for 338 disc brake caliper (Standard on DAC and stainless steel calipers)
N/S
Ceramic pad for 2250 and 338HD disc brake caliper
N/S
|
