| 2/RCMHS-11-8D-10-HD

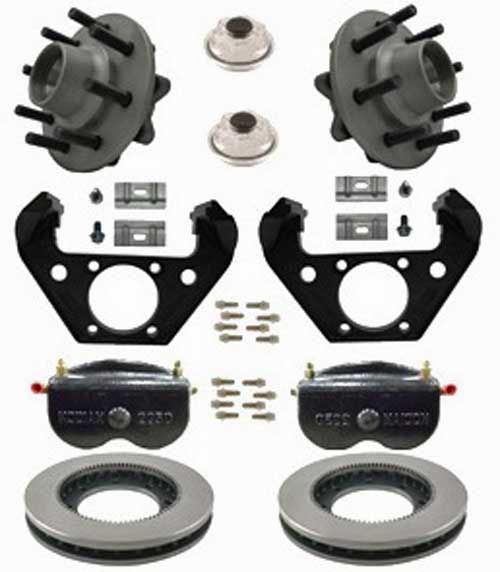

Kodiak Dexter/Lippert 8k HD One Axle Disc Brake Set 11.6" automotive finish rotor, E-coat caliper, 5/8" wheel bolts

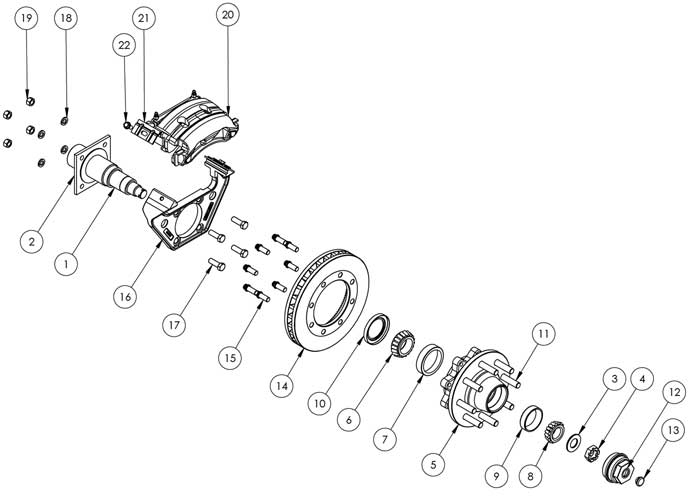

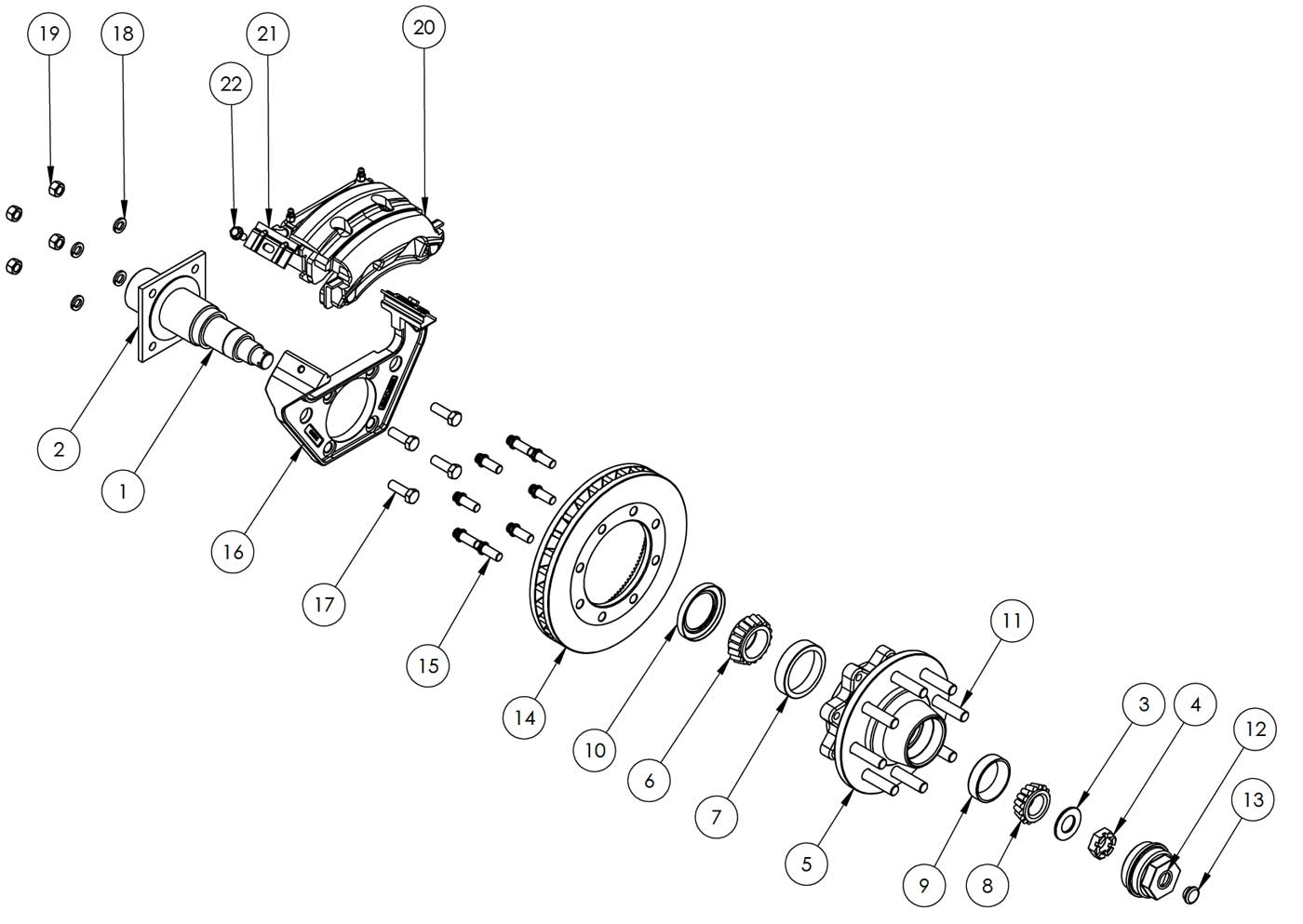

PART NO.
DESCRIPTION
ITEM
Reference
Dexter 8k Brake Flange
2
8K hub spacer standard automotive finish for #42 spindle and 11" rotor with 9/16" studs
5
8K hub spacer standard automotive finish for #42 spindle and 11" rotor with 5/8" studs
5
Oil Seal
Oil Seal (472920 National)
10
Drive-In Wheel Stud 9/16" X 2.5"
11
Drive-In Wheel Stud 5/8" X 3.165"
11
Rotor/hub 8K polycarbonate cap and plug
12
Oil lube plug for 8K - 14K, polycarbonate cap
13
11.6" rotor automotive finish
14
1/2-13UNCx1 1/4 Flange Head
15
E-coated caliper mounting bracket for Dexter/Lippert 8K axles with 11" rotor
16
Reference
1/2-20UNF x 1 1/4 Hex Bolt
17
Reference
1/2" Lock Washer
18
Reference
1/2-20UNF Nut
19
E- Coated Caliper with 2 - 2 1/2" nickel chrome plated pistons; ceramic pads; with mounting clips
19
CALIPER REPLACEMENT PARTS
PART NO.
DESCRIPTION
ITEM
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
21-22
Friction Pads (Ceramic standard on Dacromet coated calipers)
N/S
Friction Pads (Ceramic with stainless steel backing plate - standard on stainless steel calipers)
N/S
Ceramic pad for 2250 and 338HD disc brake caliper
N/S
2 1/2" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
N/S
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
N/S
Silicone Dust Boot with stainless steel compression ring
N/S
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
N/S
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
N/S
1/8" Brass Pipe Thread Plug
N/S
Stainless Steel Guide Bolt Sleeve
N/S
Stainless steel guide bolt (M11 x 1.5) w/Thread Locker (5/16" Allen or 1/2" Hex)
N/S
EPDM Bushing For Guide Bolt Sleeve
N/S
O-ring for Guide Bolt Sleeve (Use For OLDER Design)
N/S
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston
N/S
|
