9K-15K Axle Spring Hanger Cross Frame Hanger Reinforcement
Cross frame reinforcement between spring and equalizer hanger brackets assures full load carrying capability of the axle mounted structure

Standard three inch structural channel is suggested for reinforcement members

Welds shall be as indicated.

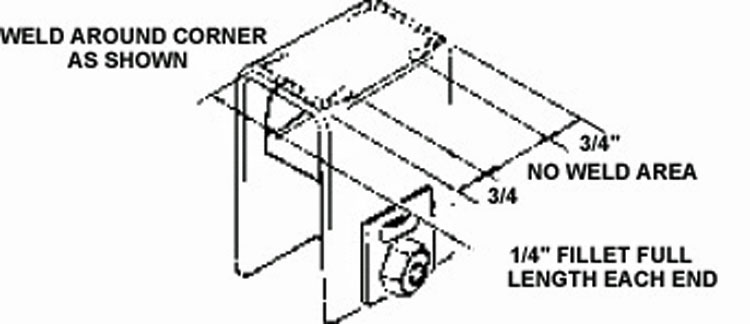

Welding illustration for cross frame reinforcement
Recommended Hanger Welding Procedure

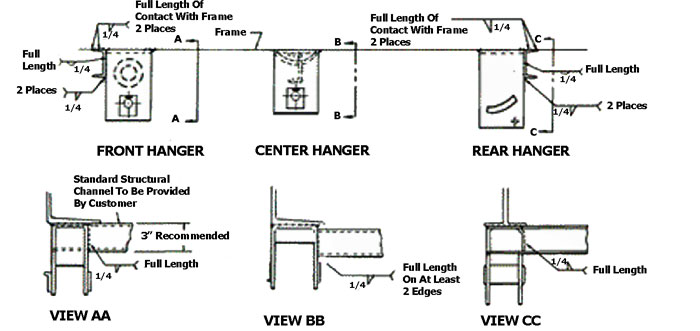

Trailer Front Arrow Cross frame reinforcement hanger placement illustration
