How to order a replacement Axle Beam
Answers to the following questions will provide us with all of the necessary information to get your axle beam ordered and in your hands quickly. Make sure you have the answers to these questions close at hand when placing your order.
  1. Spindles: Are they straight, drop or E-Z Lube?
  2. Inner and Outer Bearings: What are the bearing numbers?
  3. Seal: What is the I.D. and O.D. or Reference Number of the seal?
  4. Tube: What is the outside diameter? Is the tube solid bar or tubular?
  5. Hub Face: What is the measurement from center to center of spindles?
  6. Spring Pads: What is the measurement from center to center of pads?
  7. Brake Flange: What is the measurement from outside to outside of brake flanges?

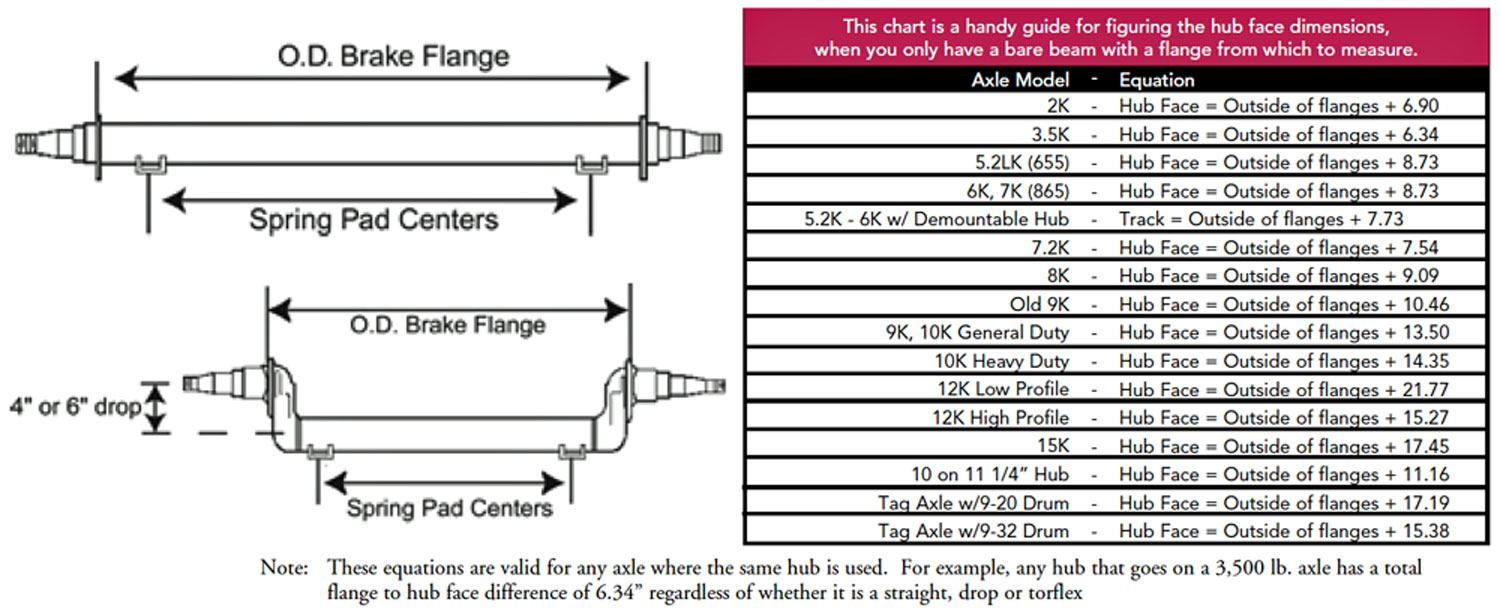

Equation to Figure Hub Face From Flange To Flange Dimensions
Dexter Torflex Axle Articulation Dimensions
