Trailer Hub/Drums 5-Spoke Utility With Spindle Using 2.125 or 2.25" ID Seals
  • 25580 inner/15123 outer bearings
  • Fits Dexter, Lippert and most other 6,000 lb. or 7,000 lb. axles
  • Capacity of 3,500 lbs. per each
  • Standard grease or zerk-lubed spindles
  • Spindles using 2 1/8" or 2 1/4" ID seals
  • 12" X 2" drum
  • Dexter discontinued the 2 1/8" spindle in 1997

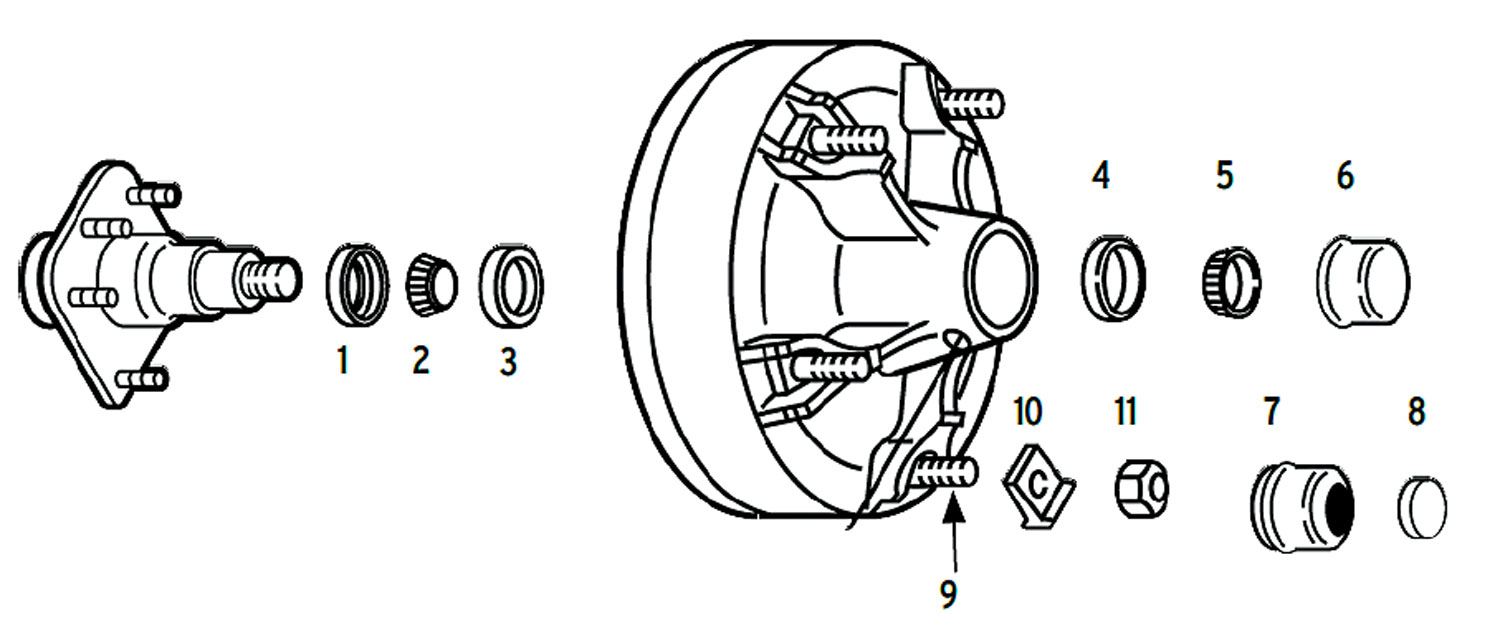

Hub/Drum trailer 5-spoke utility with spindle using 2.125 or 2.25 ID seals Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
SEAL ID
FINISH
8-174-5
Dexter hub/drum only with studs and races
N/A
Painted
8-174-5UC3
Dexter complete hub/drum assembly
2 1/8"
Painted
8-174-5UC3-EZ
Dexter complete EZ-Lube hub/drum assembly
2 1/8"
Painted
8-174-5UC3-225
Dexter hub/drum only with studs and races
2 1/4"
Painted
8-174-5UC3EZ-225
Dexter complete EZ-Lube hub/drum assembly
2 1/4"
Paint
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-36
Grease Seal, 3.376" OD X 2.25" ID, Double Lip
1
10-10
Grease Seal, 3.376" OD X 2.125" ID, Double Lip
1
25580
Inner Bearing
2
25520
Inner Race
3
15245
Outer Race
4
15123
Outer Bearing
5
45869
Grease Cap, 2.44" OD, Drive-In
6
21-42-1
Grease cap, 2.44" OD drive-in for EZ-Lube
7
85-1
Rubber plug for EZ-Lube grease cap
8
25-11
Stud, 9/16" Diameter, screw-In Style
9
15-2
Rim clamp
10
916N
Wheel Nut, 9/16" Hex
11
