Dexter Air Brake Replacement Parts Guide

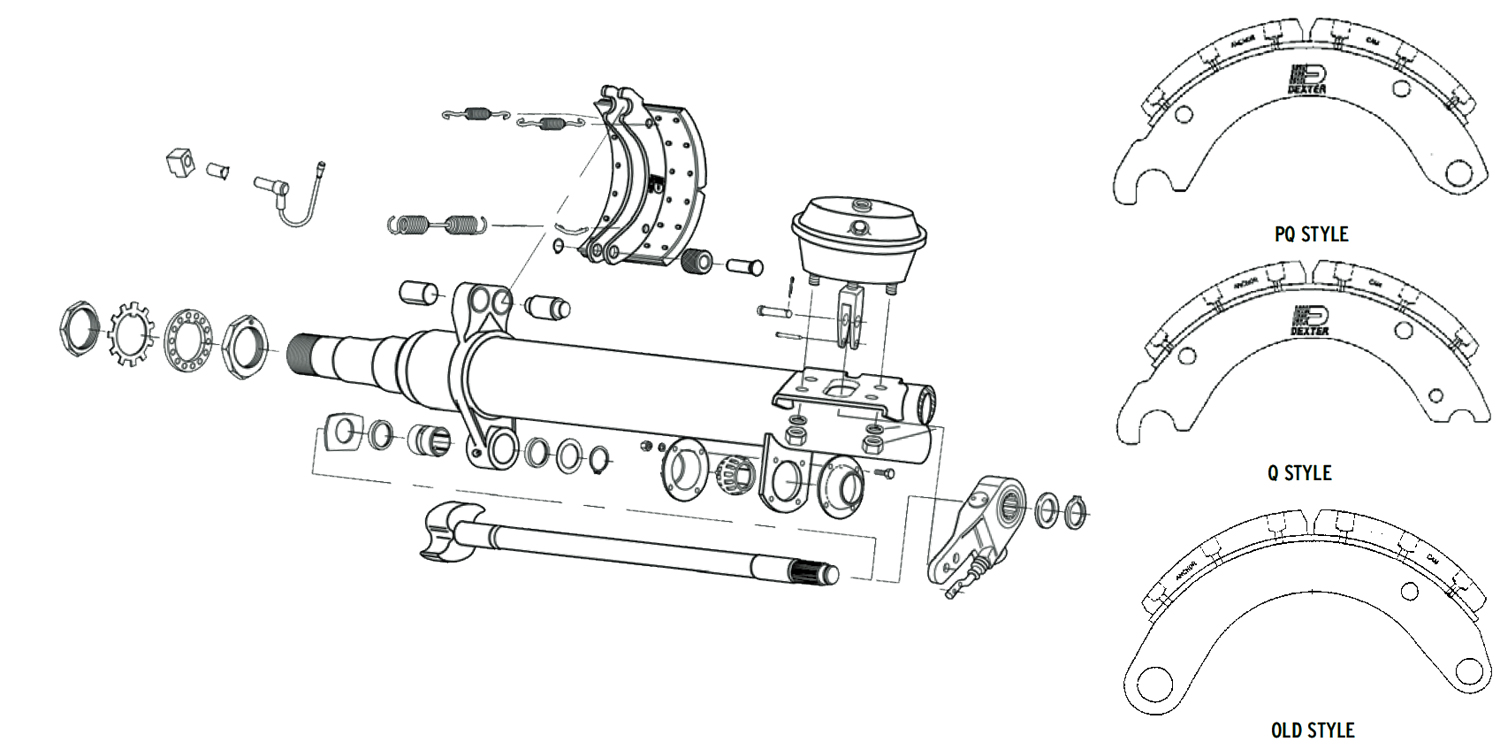

Dexter Air Brake Parts Illustration
PART NO. REF. NO. DESCRIPTION
BP20-900 240800 Camshaft Repair Kit for Dexter 12 1/4" Air Brakes Reference Only
BP20-095 240805 Camshaft Repair Kit for Dexter 12 1/4" Air Brakes
BP20-120 241400 Brake Shoe Spring Repair Kit For 12 1/4" Dexter Air Brake Reference Only
BP20-125 241405 Brake Shoe Spring Repair Kit For Dexter 12 1/4" Old Style Air Brakes
K71-136 241426 Brake Shoe Spring Repair Kit For 16 1/2" Q-Style Dexter Air Brake
BP20-135 241450 Brake Shoe Spring Repair Kit For 12 1/4" Dexter Air Brake PQ shoes Reference Only
BP20-140 241445 Brake Shoe Repair Kit For Dexter 12 1/4" PQ Style Air Brakes
BP22-010 243200 Dexter Air Brake Shoe/Lining (2 per wheel required) for 12 1/4" X 4" (Old Style) Reference Only
BP22-015 243300 Dexter Air Brake Shoe/Lining (2 per wheel required) for 12 1/4" X 4" PQ Style Reference Only
BP22-020 243400 Dexter Air Brake Shoe/Lining (2 per wheel required) for 12 1/4" X 5" (Old Style) Reference Only
BP-22-025 243500 Dexter Air Brake Shoe/Lining (2 per wheel required) for 12 1/4" X 5" PQ Style Reference Only
BP22-035 243650 Dexter Air Brake Shoe/Lining (2 per wheel required) for 12 1/4" X 7 1/2" PQ Style Reference Only
BP22-011 243205 Shoe/Lining And Spring Repair Kit For Dexter 12.25" x 4" Old Style Air Brakes
BP22-017 243210 Air Brake Shoe/Lining and Spring Repair Kit 12 1/4" x 4" PQ Style Air Brakes
BP22-021 243405 Shoe/Lining and Spring Repair Kit For Dexter 12 1/4" x 5" Old Style Air Brakes
BP22-027 243220 Shoe/Lining and Spring Repair Kit For Dexter 12.25" x 5" PQ Style Air Brakes
BP22-037 243225 Shoe/Lining and Spring Repair Kit 12 1/4" x 7 1/2" PQ Style Air Brakes
K71-102-00 245850 Replacement Lining (1 Wheel) 12 1/4" X 4" Reference Only
K71-152-00 245950 Replacement Lining (1 Wheel) 12 1/4" X 5" Reference Only
34-260-7 246750 Spring Brake Chamber Type 20 After 8/98
34-59-1 246800 Air Chamber Type 24 For 12 1/4" X 7 1/2" Air Brake
34-57-1 247000 Air Chamber Type 30 For 12 1/4" or 16 1/2" Air Brake
34-261-7 247300 Spring Brake Chamber Type 20/24 For 12 1/4" X 4" Air Brake After 8/98
34-60-1 247400 Spring Brake Chamber Type 24/30 Combination
34-58-1 247600 Spring Brake Chamber Type 30/30 Combination

*Note the linked reference numbers will take you to the Humphreys Trailer Parts catalog where the part can be purchased.
