Dexter 10K-12K Trailer Disc Brakes
  • Oil Bath Hub, 395S Inner / 387A Outer Bearings
  • Fits Dexter 10K Disc Brake Axles
  • Capacity of 10,000 lbs. per pair
  • Rotor Available with ABS exciter ring installed
  • 4.75" Hub Pilot

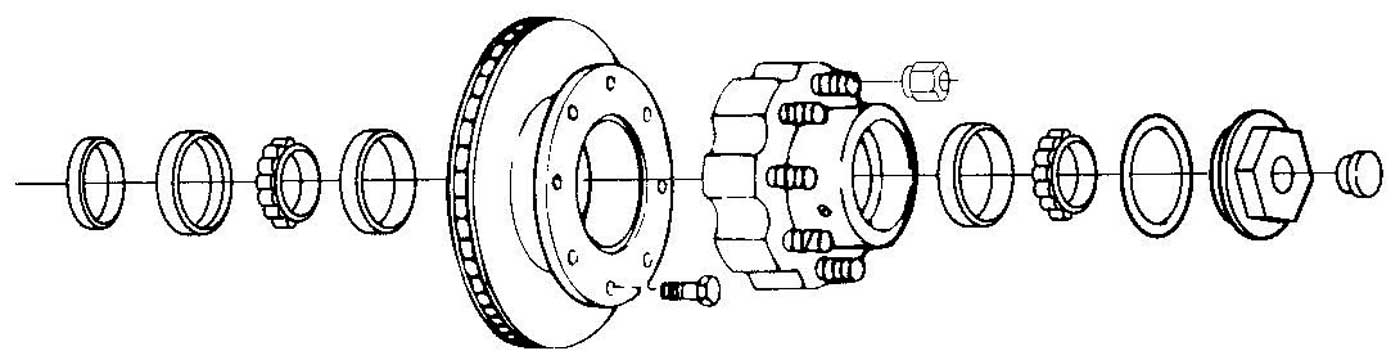

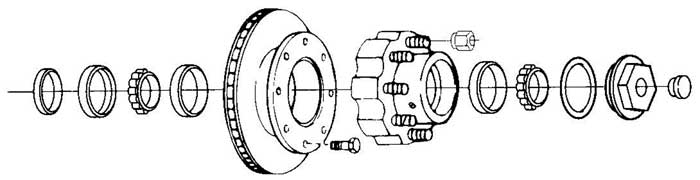

Dexter 10K Axle Disc Brake Parts Illustration Dexter 10K Axle Disc Brake Caliper Parts Illustration
REPLACEMENT PARTS
PART NO.
DESCRIPTION
REF #
8-214-6
8 on 6 1/2" - Hub Only
8-214-6UC1
Complete Hub Assembly (Rotor & Mounting Hardware NOT Included)
70-006
8 on 6 1/2" Rotor Non ABS Rotor Only
70-006-2
8 on 6 1/2" Rotor With ABS Exciter Rings Rotor Only
387A
2.250 I.D. Outer Axle Bearing
395S
2.625 I.D. Inner Axle Bearing
382A
387A Outer Axle Bearing Race
394A
395S Inner Axle Bearing Race
6-109
5/8 X 1 1/16" Cone Wheel Nut
33-52-1
Wheel Retaining Ring for 9-12K Trailer Axles
7-115
5/8 X 3 1/8" Drive In Wheel Stud
RG04-270
21-36 Oil Cap Kit
10-56
Unitized Oil Seal for 10/12/15K Dexter/Hayes Trailer Axles
6-46
Rotor Mounting Nut

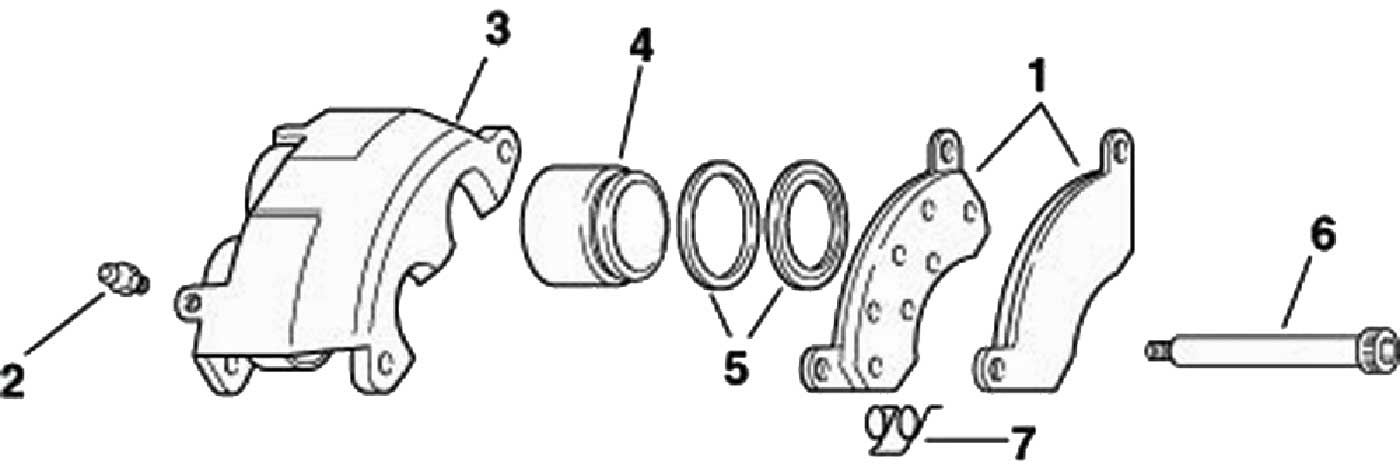

10-12K CALIPER PARTS
PART NO.
DESCRIPTION
REF #
BP04-395
Dexter Hydraulic Disc Brake Pad for 10K & 12K (1)
BP18-016
Dexter Bleeder Screw for 10K & 12K Hydraulic Disc Brake (2)
BP18-045
Disc Brake Caliper 10K & 12K Pads not included (3)
BP18-065
Dexter Disc Brake Caliper Piston, 10K & 12K (4)
BP18-075
Dexter Caliper Rebuild Kit for 10K & 12K Hydraulic Disc Brake (5)
BP18-105
Dexter Caliper Retaining Bolt for 10K-12K Hydraulic Disc Brake (6)
BP18-115
Dexter Anti-Rattle Spring for 10k & 12K Hydraulic Disc Brake (7)
3057089
Hydraulic Adapter Adapts 9579-2 to fit 10K-12K Disc Calipers
