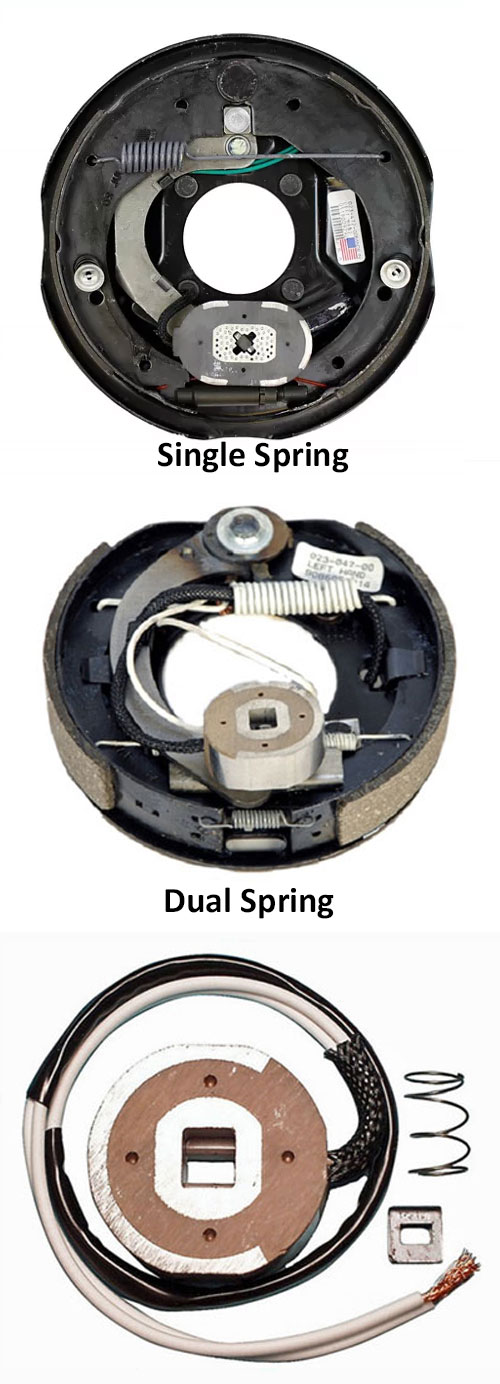

Dexter 10" x 1 1/2" Electric Brake
  • Capacity: 3,000 lbs. per pair
  • Replacment components will also fit older 2,800 lb. Dexter axles with weld-on brake assemblies

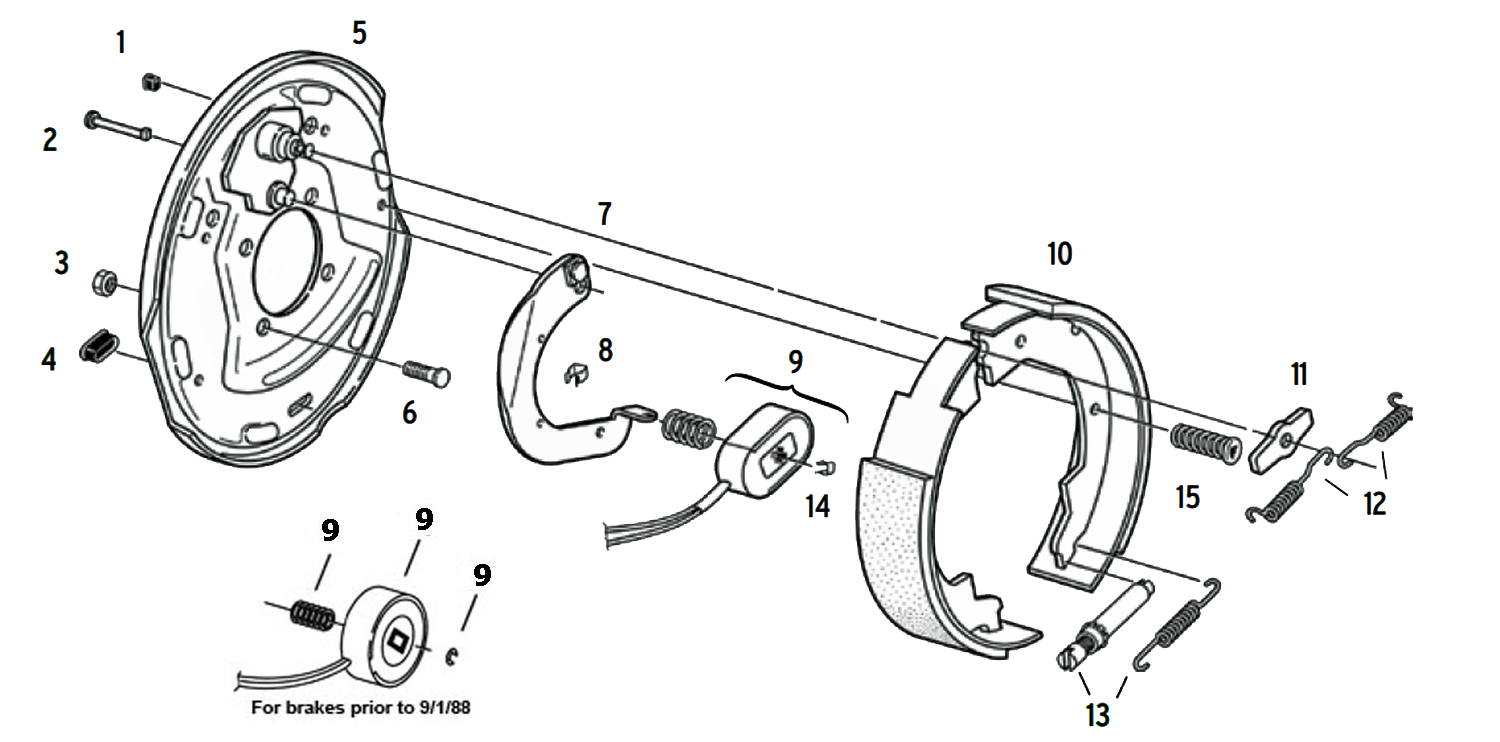

Dexter 10 x 1 1/2 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
74-023-129-00
N/A
Dexter Left Hand Brake Assembly Reference Only
74-023-130-00
N/A
Dexter Right Hand Brake Assembly Reference Only
23-472
Dexter Left Hand Brake Assembly
23-473
Dexter Right Hand Brake Assembly
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
46-016-00
Wire grommet
1
49-9
Shoe hold down pin
2
6-17
7/16"-20 Brake mounting nut
3
BP10-220
Adjuster Dust Plug, Pkg of 4
4
36-134-3
Backing plate
5
007-041-00
7/16"-20 Brake mounting stud
6
198410
Actuating Arm, Left Hand for Oval Magnets Reference Only
7
198420
Actuating Arm, Right Hand, For Oval Magnet Reference Only
7
047-112-04
198411
Actuating Arm, Left Hand, For Oval Magnet Reference Only
7
047-113-04
198421
Actuating Arm, Right Hand, For Oval Magnet Reference Only
7
BP02-170
Actuating Arm, Left Hand, For Oval Magnet
7
BP02-180
Actuating Arm, Right Hand, For Oval Magnet
7
027-005-00
Magnet wire clip
8
BP01-064
193510
Magnet Kit, Oval Reference Only
9
BP01-068
Round Magnet Kit (Pre 1998)
9
BP01-110
Oval Magnet Kit
9
BP04-065
Shoe & Lining (One Wheel)
10
005-067-00
Anchor Post Washer
11
216275
Shoe Return Spring Reference Only
12
BP07-105
Shoe return spring - dual spring application
12
BP10-065
Adjuster and spring
13
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
14
211810
Shoe Hold Down Spring Reference Only
15
46-6
Shoe Hold Down Spring
15
