10" x 2 1/4" Electric Brake 4.4k Axles
  • Capacity: 4,400 lbs. per pair
  • Fits Dexter 4.4k Axles

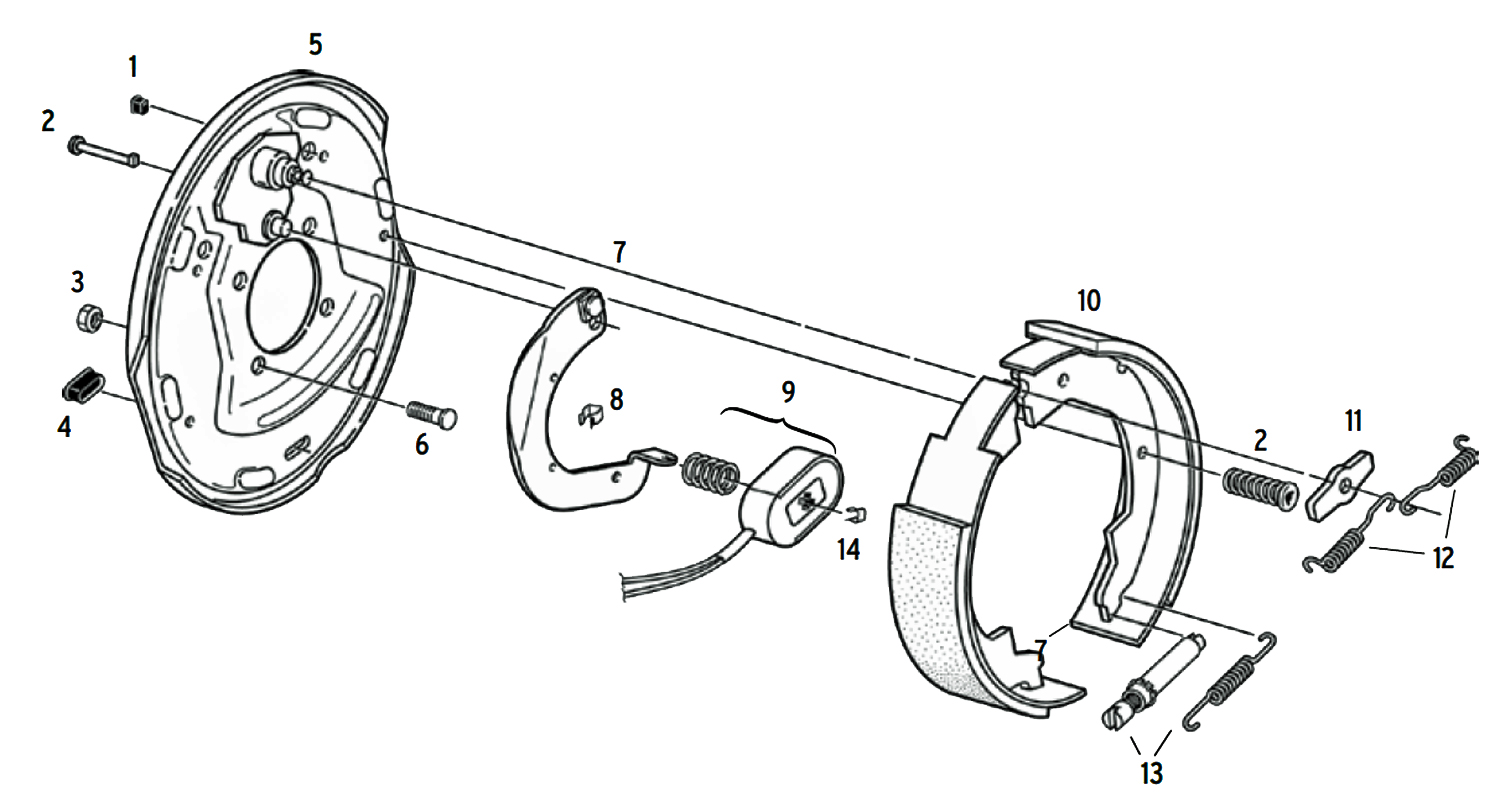

Dexter 4.4k Axle 10 x 2 1/4 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
23-454
Dexter complete brake assembly left hand before 5/1/09 (2.83"X2.83" BC)
23-455
Dexter complete brake assembly right hand before 5/1/09 (2.83"X2.83" BC)
K23-462-00
Dexter complete brake assembly left hand after 5/1/09 (2.83"X3.20" BC)
K23-463-00
Dexter complete brake assembly right hand after 5/1/09 (2.83"X3.20" BC)
K23-478-00
Dexter Nev-R-Adjust complete brake assembly left hand after 5/1/09
K23-479-00
Dexter Nev-R-Adjust complete brake assembly right hand after 5/1/09
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
BP06-120
Shoe Hold Down Spring Kit (One Wheel)
2
6-17
7/16"-20 Brake mounting nut
3
BP10-220
Adjuster Dust Plug, Pkg of 4
4
36-19-19
Backing plate
5
7-271
Brake mounting bolt - Press In
6
BP02-170
Magnet Actuating Arm, Left Hand Dexter, Redline
7
BP02-180
Magnet Actuating Arm, Right Hand Dexter, Redline
7
027-005-00
Magnet wire clip
8
BP01-225
Magnet Kit, Dexter 4.4K (Black Wire)
9
BP04-095
Shoe/Lining, Dexter, Redline and Red Onyx 3.5K (One Wheel)
10
K71-672
Shoe/Lining, Dexter 4.4K Manual Adjust
10
005-067-00
Anchor Post Washer
11
BP07-105
Shoe Return Spring (Dual)
12
BP10-065
Adjuster and spring
13
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
14
47-19-10
204220
Magnet Actuating Arm Nev-R-Adjust Right Hand Reference Only
NS
47-20-10
204225
Magnet Actuating Arm Nev-R-Adjust Right Hand Reference Only
NS
K71-698-00
Shoe & Lining Dexter Nev-R-Adjust 4.4k Left Hand
NS
K71-699-00
Shoe & Lining Dexter Nev-R-Adjust 4.4k Right Hand
NS
K71-703-00
Self Adjust Kit 1 Wheel
NS
BP07-110
Shoe Return Spring (Single)
N/S

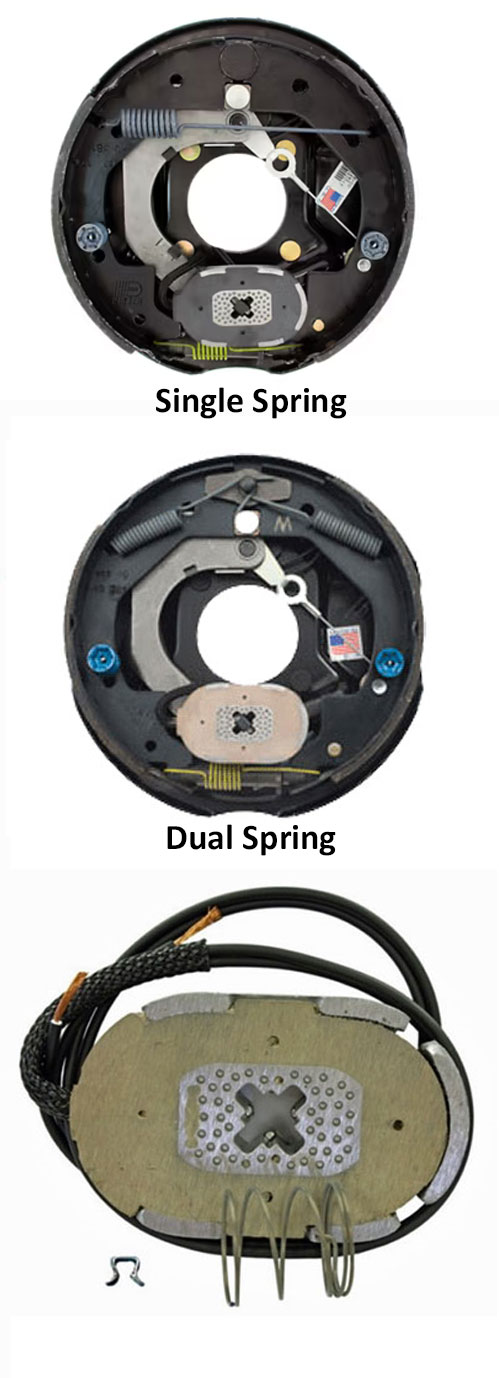

Dexter 10 x 2 Inch Electric Brake Assemblies
