10" x 2 1/4" Electric Brake
  • Capacity: 3,500 lbs. per pair
  • OEM quality replacement brakes for Dexter, Al-Ko/Hayes, R/A and more

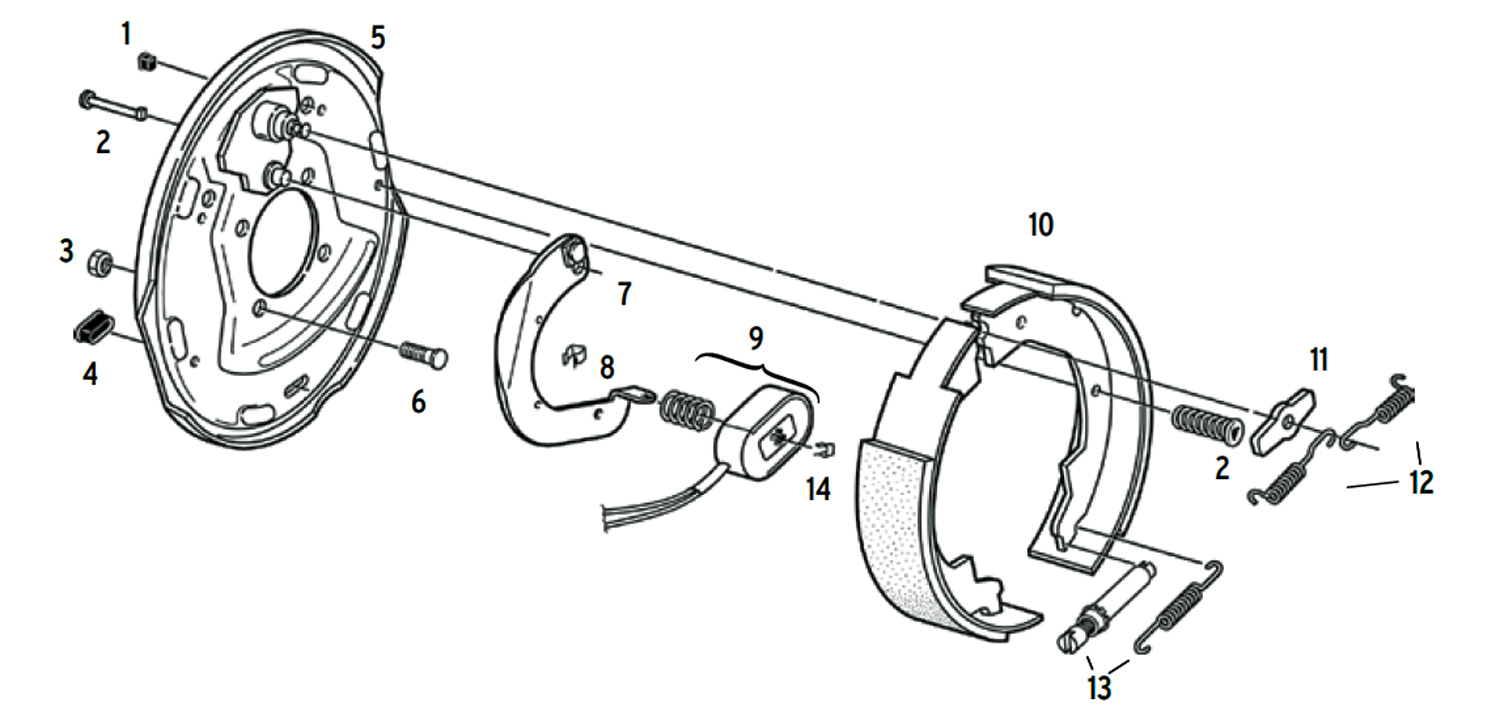

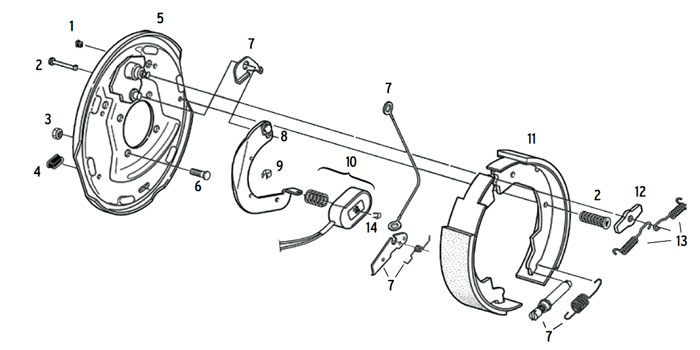

Dexter 10 x 2 1/4 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
EB01-100
Trailer Parts Pro complete brake assembly left hand
EB01-105
Trailer Parts Pro complete brake assembly right hand
BE10-35L
Trailer Parts Pro complete brake assembly left hand
BE10-35R
Trailer Parts Pro complete brake assembly right hand
23-26
Dexter complete brake assembly left hand
23-27
Dexter complete brake assembly right hand
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
BP06-120
Shoe Hold Down Spring Kit (One Wheel)
2
6-17
7/16"-20 Brake mounting nut
3
BP10-220
Adjuster Dust Plug, Pkg of 4
4
36-19-10
Backing plate
5
007-041-00
7/16"-20 Brake mounting stud
6
BP02-170
Magnet Actuating Arm, Left Hand Dexter, Redline
7
BP02-180
Magnet Actuating Arm, Right Hand Dexter, Redline
7
027-005-00
Magnet wire clip
8
BP01-110
Magnet Kit, Fits Dexter, Hayes/Alko and Redline 3.5K
9
BP01-115
Magnet Kit Dexter 3.5k (Green Wire)
9
BP04-095
Shoe/Lining, Dexter, Redline and Red Onyx 3.5K (One Wheel)
10
K71-047-00
Shoe/Lining Dexter 3.5K (One Wheel)
10
BP04-100
Shoe/Lining Al-Ko/Hayes 3.5K (One Wheel)
10
005-067-00
Anchor Post Washer
11
BP07-105
Shoe Return Spring (Dual)
12
BP10-065
Adjuster and spring
13
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
14
BP07-110
Shoe Return Spring (Single)
N/S

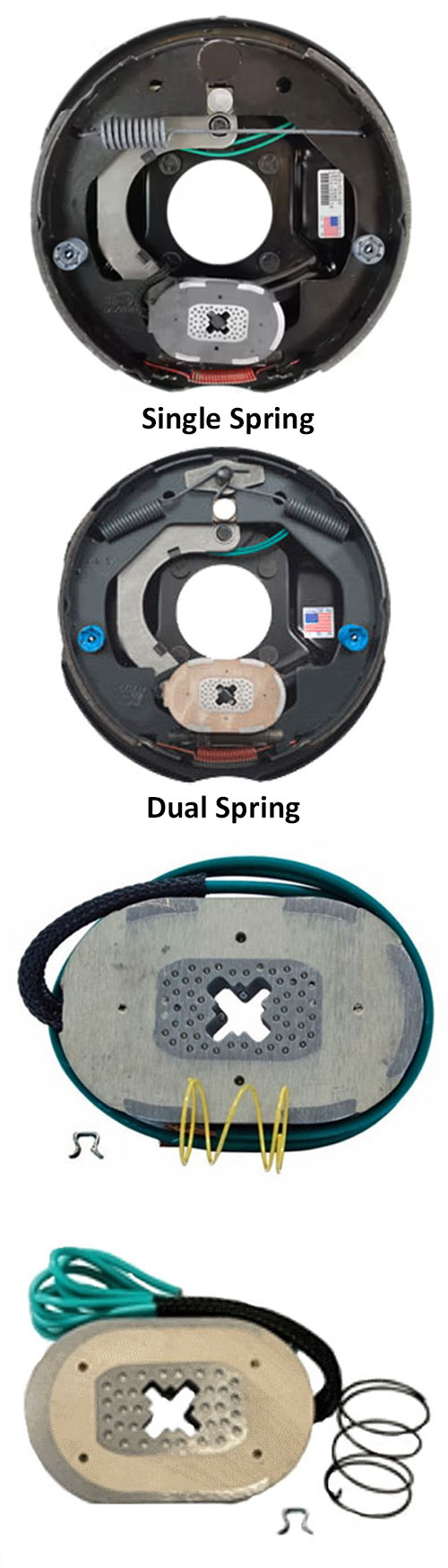

Dexter 10 x 2 Inch Electric Brake Assemblies
