12K Dexter 12 1/4 x 5" Electric Brake Cast Backing Plate
  • Capacity: 12,000 Lbs. Per Pair
  • 7 bolt flange
  • Redesigned with a cast backing plate in May of 2000

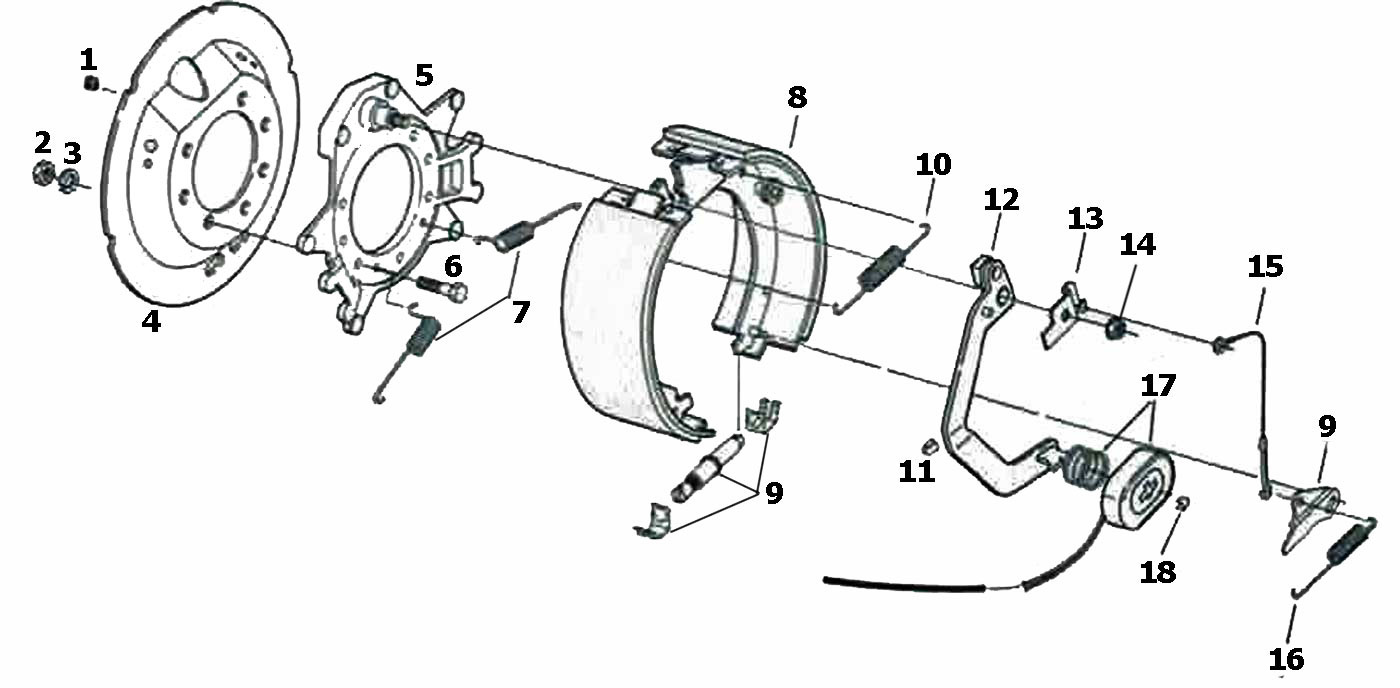

12k Dexter 12 1/4 x 5 Inch Cast Backing Plate Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
23-442
Dexter complete brake assembly left hand 12,000 lbs. per pair
23-443
Dexter complete brake assembly right hand 12,000 lbs. per pair
EB01-162
Trailer Parts Pro complete brake assembly left hand 12,000 lbs. per pair. Replaces: EB01-162 Ref: 188930
EB01-167
Trailer Parts Pro complete brake assembly right hand 12,000 lbs. per pair Replaces: EB01-165 Ref: 188935
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
6-17
7/16" brake mounting nut
2
5-8
7/16" brake mounting lock washer
3
BP15-190
Brake Dust Shield Metal
4
36-120-2
Backing plate
5
7-116
7/16"-20 brake mounting bolt
6
BP07-195
Shoe centering spring
7
BP04-365
Shoe & Lining (One Wheel) left hand
8
BP04-375
Shoe & Lining (One Wheel) right hand
8
BP10-136
Adjuster, lever & clips, left hand
9
BP10-146
Adjuster, lever & clips right hand
9
BP07-190
Shoe Return Spring
10
27-39
Magnet wire clip
11
47-123-36
Actuating Arm left hand
12
47-123-35
Actuating Arm right hand
12
71-455-1
Arm/Shoe Retainer, Left Hand
13
71-455-2
Arm/Shoe Retainer, Right Hand
13
6-92
7/16"-20 Flange locking nut
14
BP13-022
Adjuster Cable
15
BP08-155
Adjuster Spring
16
BP01-306
Magnet Kit 9K & 12K New Style Oval (Black Wire)
17
BP19-005
Magnet Retainer Clip, Pkg of 4
18

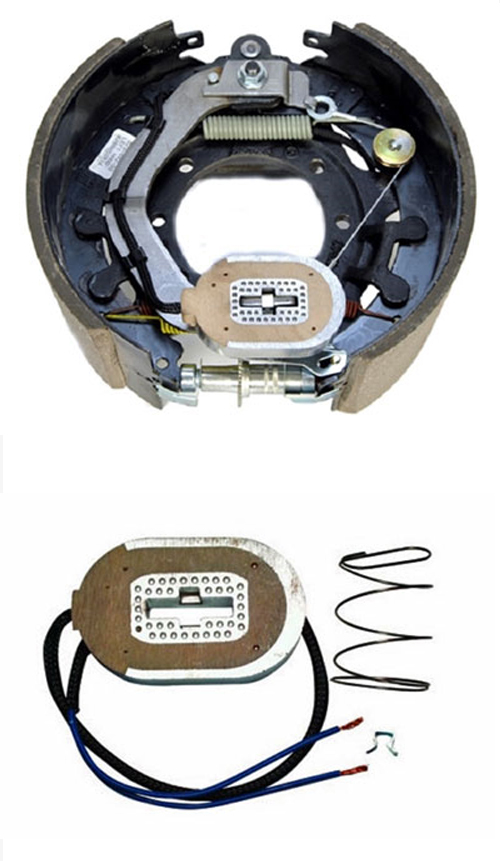

Dexter 12 1/4 x 5 Inch Cast Backing Plate Electric Brake Assemblies
