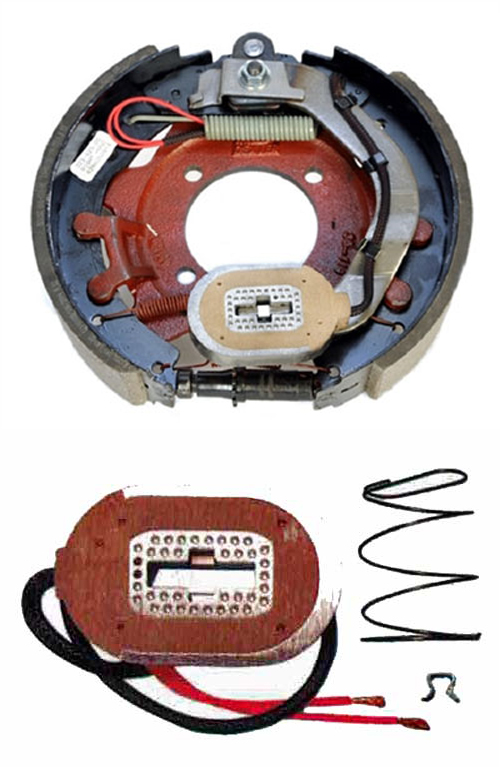

Dexter 12 1/4 x 2 1/2" Electric Brake
  • Capacity: 7,200 lbs. per pair
  • 4 Bolt Flange
  • Brake assembly before 04/30/2000 9-Bolt Mount is no longer available. Replacement parts only.

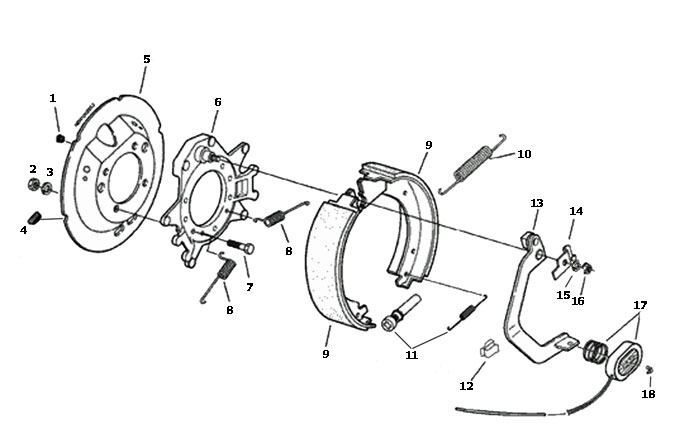

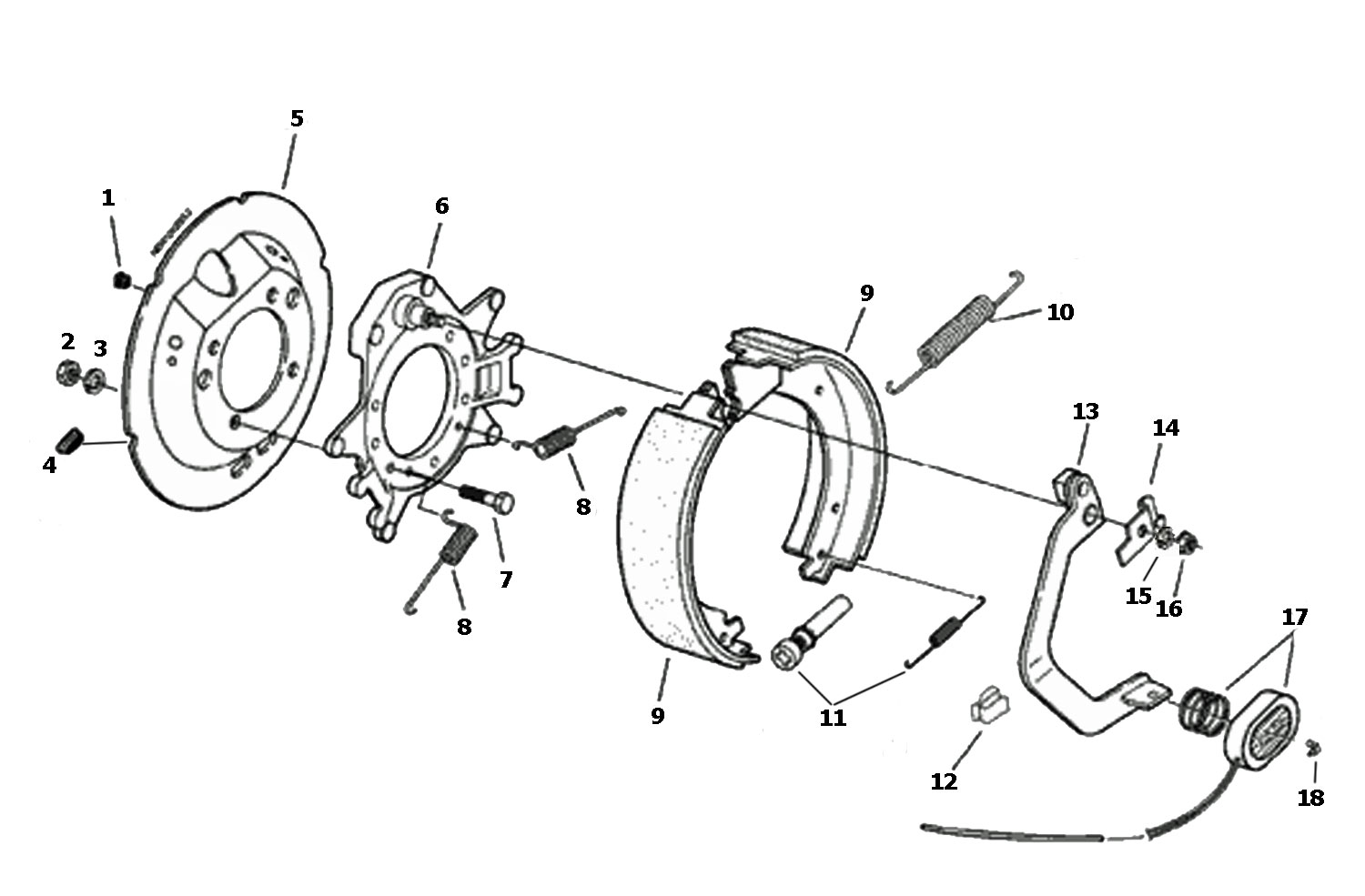

Dexter 12 1/4 x 2 1/2 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
23-428
Dexter Left Hand Complete Brake Assembly 4-bolt mount after 05/01/2000
23-429
Dexter Right Hand Complete Brake Assembly 4-bolt mount after 05/01/2000
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
6-46
Brake mounting nut
2
5-8
7/16" brake mounting lock washer
3
BP10-220
Adjuster Dust Plug, Pkg of 4
2
36-118-20
Dust shield
5
36-119-2
Backing plate
6
7-97
Brake mounting bolt
7
BP07-195
Shoe centering spring, cast backing plate After 5/1/2000
8
BP04-235
Shoe & Lining (One Wheel) Before 5/1/2000
9
BP04-236
Shoe & Lining left hand, cast backing plate After 5/1/2000
9
BP04-238
Shoe & Lining right hand, cast backing plate After 5/1/2000
9
217750
Shoe Centering Spring Reference Only
10
BP07-190
Shoe Return Spring
10
BP08-070
Adjuster Spring Replaced by K71-411-00 kit
11
222900
Adjuster Reference Only
11
K71-411-00
Adjuster & Spring Kit
11
27-39
Magnet wire clip
12
202400
Actuating Arm, Left Hand, Reference Only
13
202500
Actuating Arm, Right Hand, Reference Only
13
47-124-5
Actuating Arm, Left Hand
13
47-125-5
Actuating Arm, Right Hand
13
215200
Arm/Shoe Retainer, Left Hand Reference Only
14
215400
Arm/Shoe Retainer, Right Hand Reference Only
14
71-455-1
Arm/Shoe Retainer, Left Hand
14
71-455-2
Arm/Shoe Retainer, Right Hand
14
5-142
Brake mounting washer
15
6-92
7/16"-20 Flange locking nut
16
BP01-255
Oval magnet kit Dexter Red Wire.
17
BP19-005
Magnet Retainer Clip, Pkg of 4
18
