Dexter 12 1/4 x 3 3/8" Electric Brake 7 Bolt Cast Backing Plate
  • Capacity: 10,000 Lbs. Per Pair
  • 7 bolt flange
  • Redesigned with a cast backing plate in May of 2000

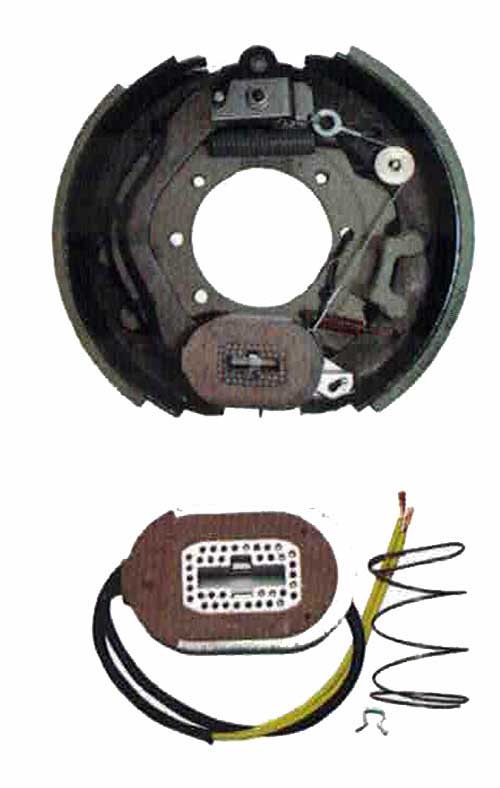

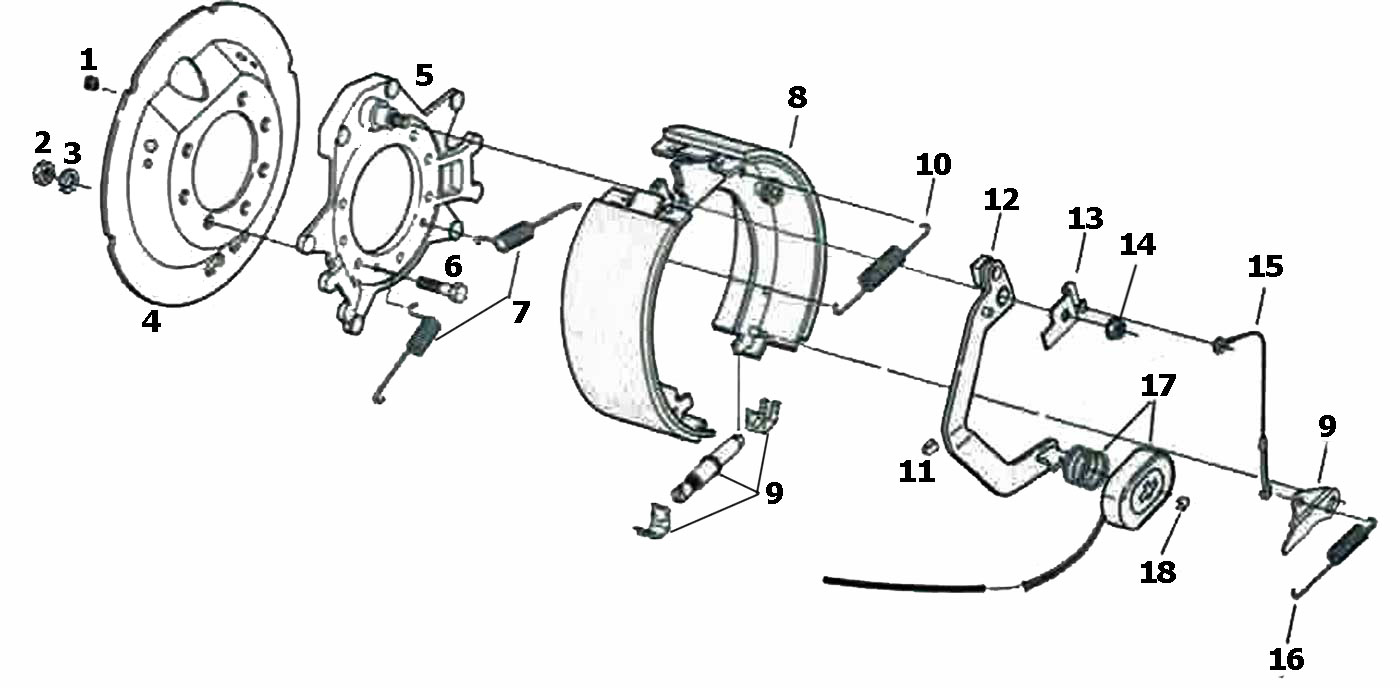

Dexter 12 1/4 x 3 3/8 Inch 7 Bolt Cast Backing Plate Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
23-450
Dexter Left Brake, 9K and 10K General Duty
23-451
Dexter Right Hand Brake, 9K and 10K General Duty
EB01-140
Trailer Parts Pro 7 bolt complete brake assembly left hand
EB01-145
Trailer Parts Pro 7 bolt complete brake assembly right hand
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
6-17
7/16" brake mounting nut
2
5-8
7/16" brake mounting lock washer
3
BP15-085
Brake Dust Shield Metal (1-Piece) for 7 Bolt
4
36-120-2
Backing plate
5
7-116
7/16"-20 brake mounting bolt
6
BP07-195
Shoe centering spring
7
BP04-245
Shoe & Lining (One Wheel) Left Hand After May 2000
8
BP04-255
Shoe & Lining (One Wheel) Right Hand After May 2000
8
BP10-136
Adjuster, lever & clips, left hand
9
BP10-146
Adjuster, lever & clips right hand
9
BP07-190
Shoe Return Spring
10
27-39
Magnet wire clip
11
BP02-327
Actuating Arm, Left Hand For Forward Adjust
12
BP02-328
Actuating Arm, Right Hand For Forward Adjust
12
215200
Actuating Arm Retainer, Left Hand Reference Only
13
215400
Actuating Arm Retainer, Right Hand Reference Only
13
71-455-1
Actuating Arm/Shoe Retainer, Left Hand
13
71-455-2
Actuating Arm/Shoe Retainer, Right Hand
13
6-92
7/16"-20 Flange locking nut
14
BP13-022
Adjuster Cable
15
BP08-155
Adjuster Spring
16
BP01-301
Magnet Kit, 9-10K Oval (Yellow Wire)
17
BP19-005
Magnet Retainer Clip, Pkg of 4
18
Dexter 12 1/4 x 3 3/8 Inch 7 Bolt Cast Backing Plate Electric Brake Assemblies
