4,400 LB AXLE SPECIFICATIONS

Suspension:

Leaf Spring Suspension
  • Double Eye versions
  • Slipper Eye Versions

(Spring Kits sold separately)

Bolt Pattern Options:

  • 6 on 5 1/2"

Brake Options:

  • 10 X 2 1/4" Electric Hi-Performance (Manual or Nev-R-Adjust®)

Spindles:

Uses L68149 Inner, LM67045 Outer Bearing
  • Straight

Tubing:

  • 3" OD LT wall

Lubrication:

  • Grease
  • E-Z Lube®

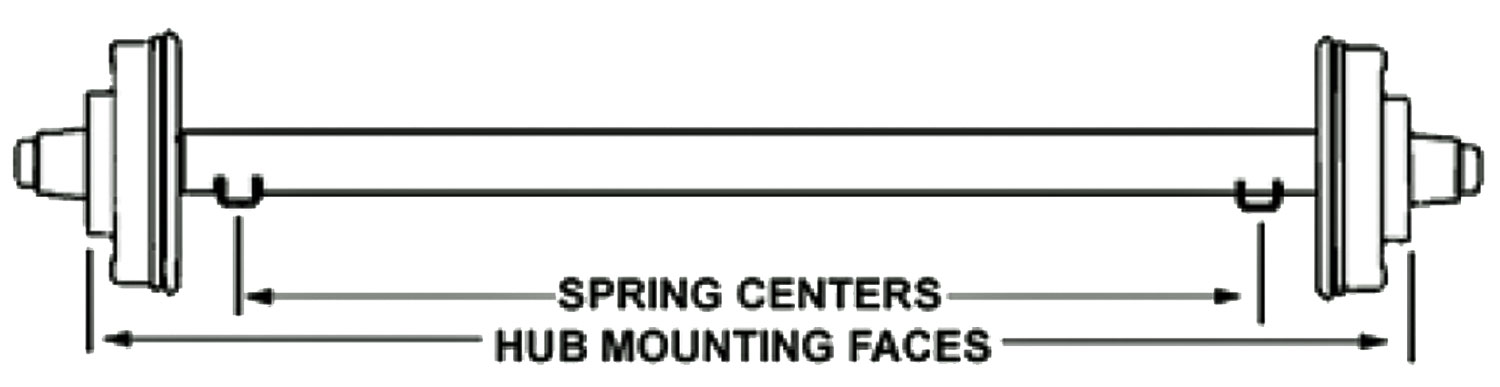

Dexter 4400 lb Axle Specifications
Overhang Restrictions
SPINDLE
HUB TYPE
MINIMUM
MAXIMUM
Straight
Drum
12"
19"
NOTE: Minimums are based on manufacturing tolerances only. Some tire and wheel combinations may create interference.
