Dexter 7" x 1 1/4" Electric Brake
  • Capacity: 2,200 Lbs. Per Pair

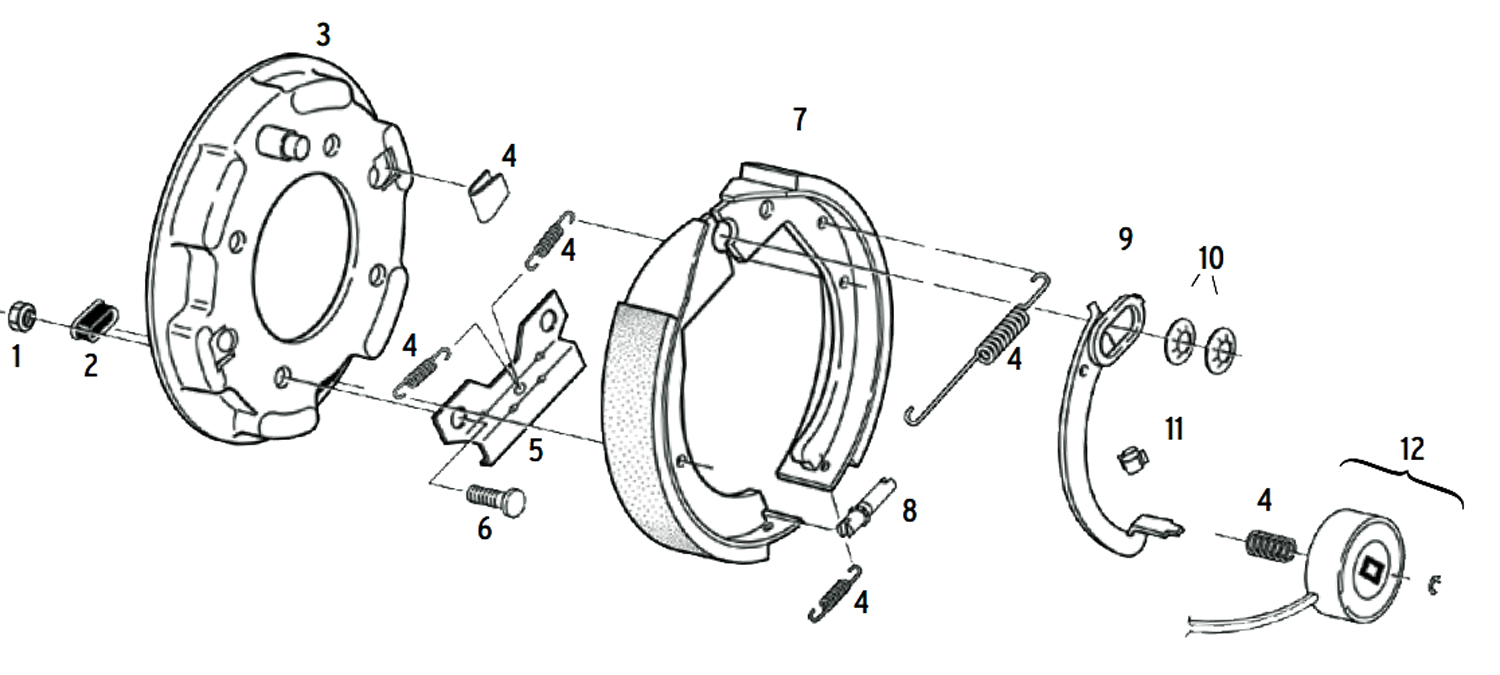

Dexter 7 x 1 1/4 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
23-47
Dexter Left Hand Brake assembly 2K Per Pair Capacity
23-48
Dexter Right Hand Brake Assembly 2K Per Pair Capacity
EB01-070
Trailer Parts Pro Left Hand Brake Assembly 2K Per Pair Capacity
EB01-075
Trailer Parts Pro Right Hand Brake Assembly 2K Per Pair Capacity
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
6-17
7/16"-20 Brake mounting nut
1
BP10-220
Adjuster Dust Plug, Pkg of 4
2
36-36-4
Backing Plate
3
211400
Shoe Hold Down Spring Reference Only
4
215800
Shoe Return Spring Reference Only
4
219600
Adjuster Spring Reference Only
4
K71-361-00
Brake Spring Set (1 WHEEL)
4
64-1
Stabilizer Bracket
5
007-041-00
7/16"-20 Brake mounting stud
6
BP04-040
Shoe & Lining (One Wheel)
7
BP10-040
Adjuster
8
197800
Actuating Arm, Left Hand Reference Only
9
198000
Actuating Arm, Right Hand Reference Only
9
47-114-1
Actuating Arm, Left Hand
9
47-115-1
Actuating Arm, Right Hand
9
46-30
1/2" Push nut
10
027-005-00
Magnet wire clip
11
193400
Magnet Kit (Old Style before 4/90) Reference Only
12
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
N/S
BP01-068
Round Magnet Kit (New Style after 4/90)
12

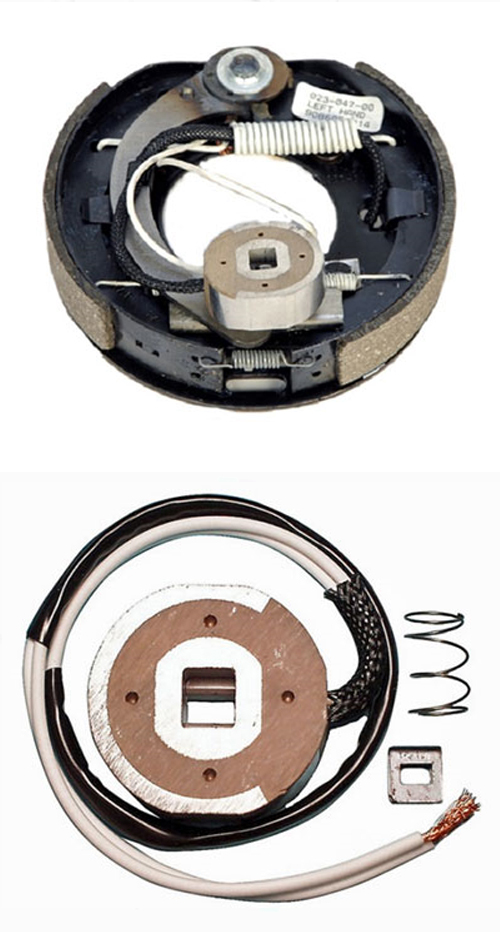

Dexter 7 x 1 1/4 Inch Electric Brake Assemblies
