TUBULAR 7,000 LB AXLE SPECIFICATIONS

Suspension:

Leaf Spring Suspension
  • Double Eye versions
  • Slipper Eye Versions

(Spring Kits sold separately)

Bolt Pattern Options:

  • 8 on 6 1/2" (1/2, 9/16 or 5/8" Studs)
  • UTG 5 Spoke (9/16" Studs)

Brake Options:

Some available with parking feature.
  • 12" X 2" Electric (Manual or Nev-R-Adjust®) or Hydraulic Uni-Servo, Duo-Servo or Freebacking Drum, Hydraulic Disc (Integral Rotor)
  • 12" X 2" Hydraulic Freebacking Corrosion Resistant (Galv/Marine Axle)

Spindles:

UTA (#42) Spindle, with 2 1/4" seal journal.
Uses 25580 Inner Bearing.
Uses 15123 (UTG) or 14125A (865) Outer Bearing
  • Straight
  • 4" Drop
  • Stainless Steel Wear Sleeves on Galvanized Axles

Tubing:

  • 3" OD x MED Wall (Standard)
  • 3" OD x HVY Wall (Optional)
  • 3.5" OD x .50" (Optional)
  • Galvanized Option (Marine), With GAL-DEX™ Corrosion Resistant Hubs
  • V-Bend Beam Option

Lubrication:

  • Grease
  • E-Z Lube®
  • Oil Bath

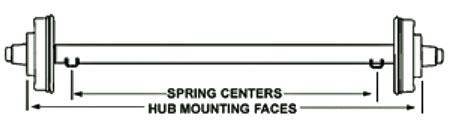

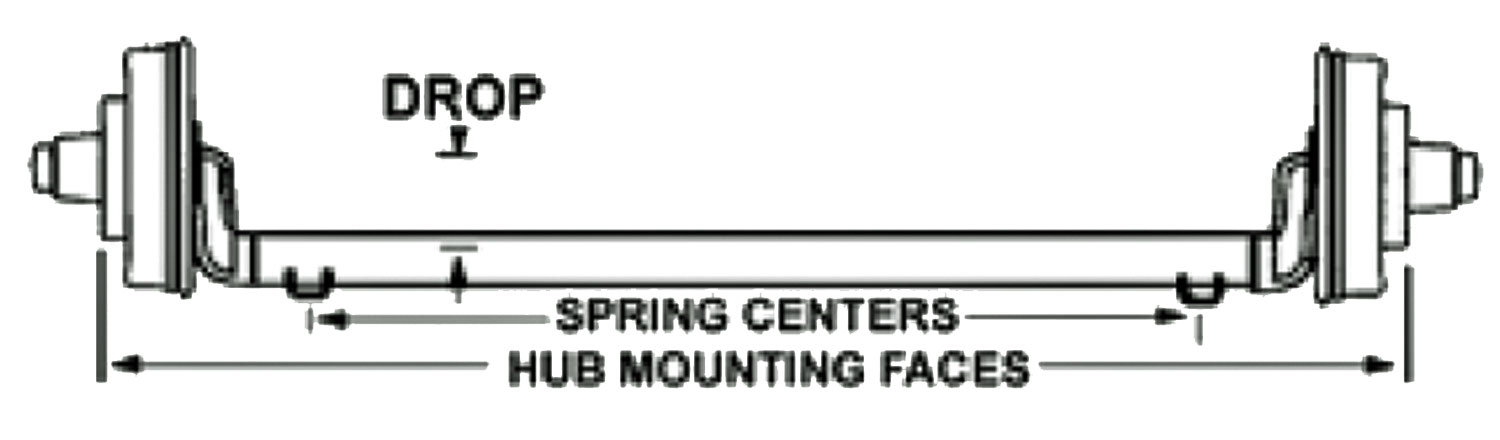

Dexter 7000 lbs Drop Axle Specifications

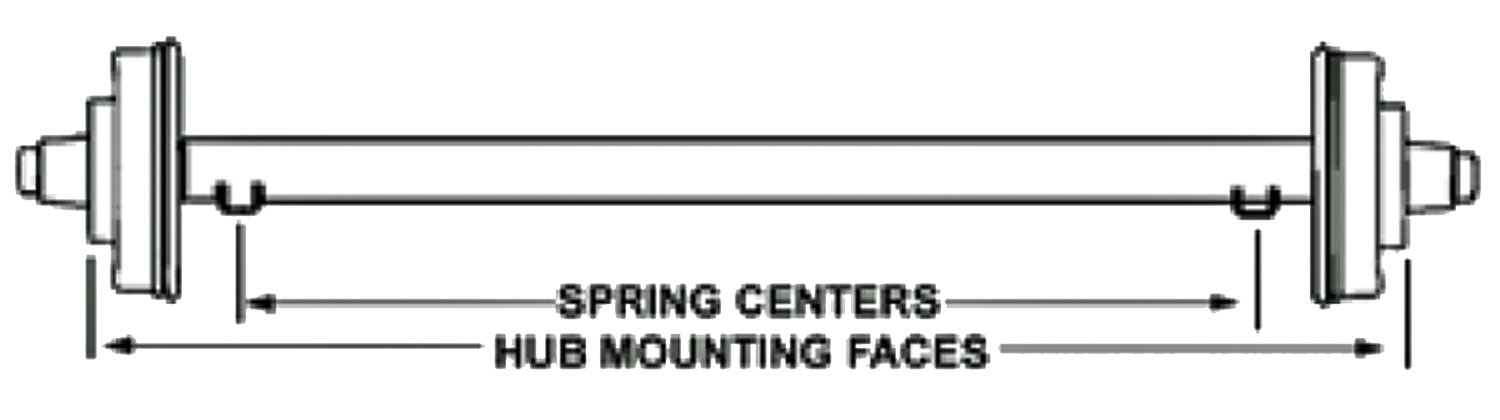

Dexter 7000 lbs Straight Axle Specifications
Overhang Restrictions
SPINDLE
HUB TYPE
MINIMUM
MAXIMUM
Straight 3" OD-Med Wall
Idler/Drum
13"
18"
Straight 3" OD-Med Wall
Disc
16"
18"
4" Drop 3" OD-Med Wall
Idler/Drum
15.75"
18"
4" Drop 3" OD-Med Wall
Disc
16"
18"
NOTE: Minimums are based on manufacturing tolerances only. Some tire and wheel combinations may create interference.
