Dual Wheel Spring Hanger Location Chart

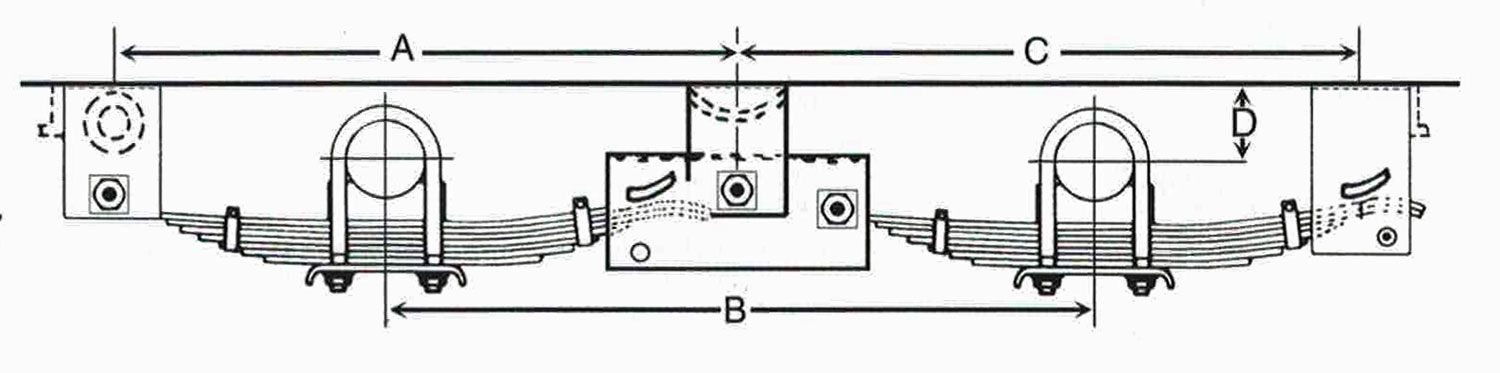

Dual Wheel Hanger Location Measurement Illustration
KIT
Axle Cap
A
B
C
D*
9K
32.4"
38"
32.9"
4.87"
9K
34.6"
42.25"
35"
4.87"
9K
37.7"
48.5"
38.1"
4.87"
10K GD
33"
38"
32.4"
4.99"
10K GD
35.1"
42.25"
34.6"
4.99"
10K GD
38.3"
48.5"
37.7"
4.99"
10K-15K
33"
38"
32.4"
5.49"
10K-15K
35.1"
42.25"
34.6"
5.49"
10K-15K
38.3"
48.5"
37.7"
5.49"
* Ride Height dimensions are at rated load capacity of suspension.
