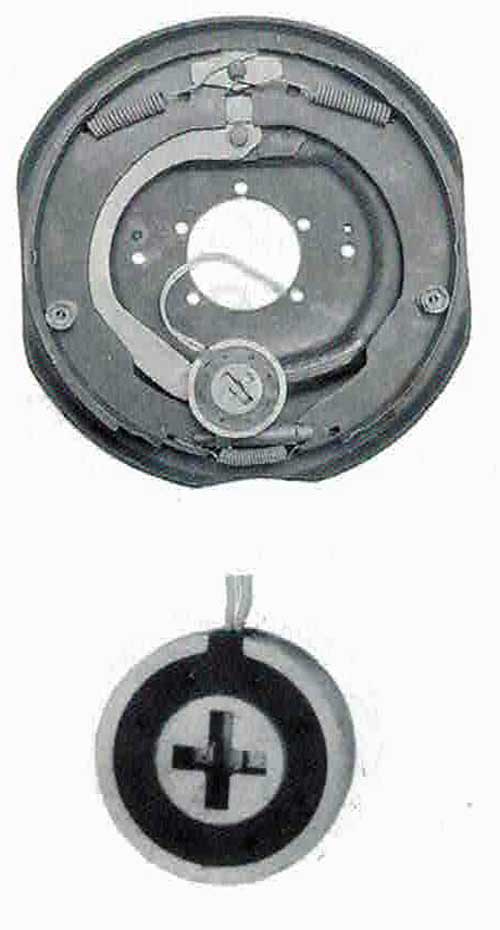

Foreman 12" x 2" Inch Electric Brake
  • Due to production being discontinued in 1980, only the following replacement parts are available.
  • Please do not confuse this brake or magnet with the mobile home brake. The magnet size is different and the Forman magnet has white wire leads.

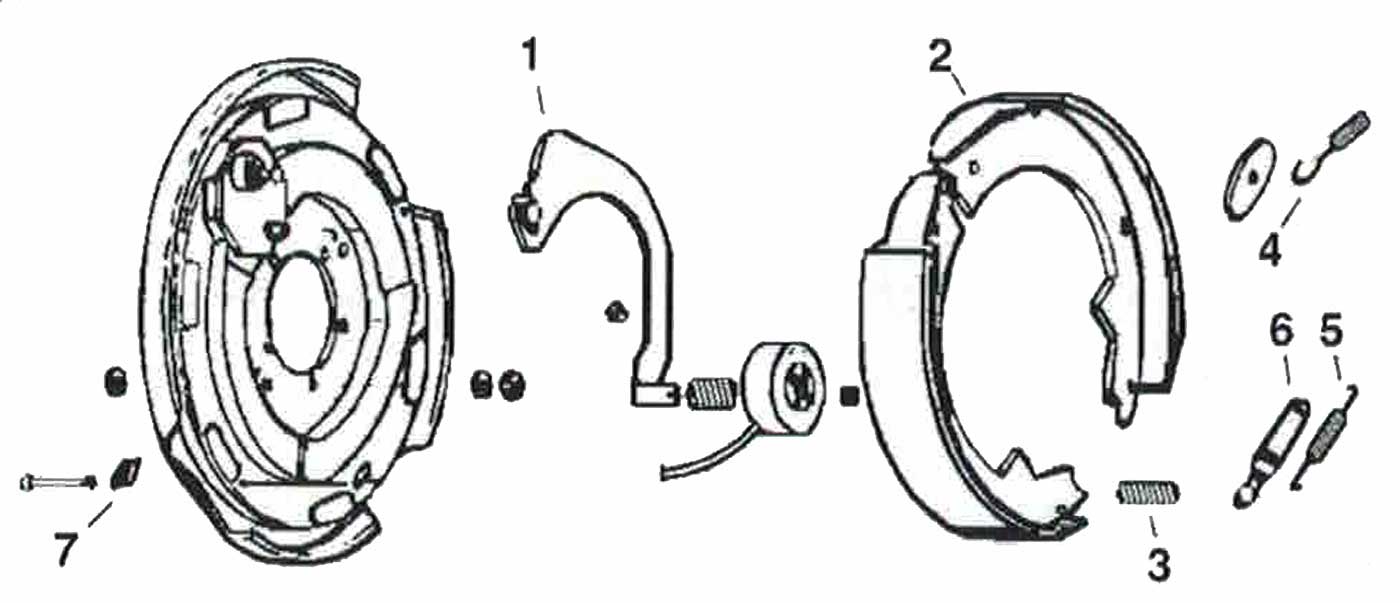

Foreman 12 x 2 Inch Electric Brake Parts Illustration
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
193800
Magnet Kit, Round (Before 1988) Reference Only
N/S
BP02-230
Actuating Arm, Left Hand
1
BP02-240
Actuating Arm, Right Hand
1
BP04-150
205950
Shoe/Lining (One Wheel) Reference Only
2
BP06-090
Shoe Hold Down Spring
3
BP07-105
Shoe Return Spring
4
BP08-070
Adjuster Spring Electric
5
BP10-060
Adjuster
6
BP10-220
Adjuster Dust Plug, Pkg of 4
7
Foreman 12 X 2 Inch Electric Brake Assemblies
