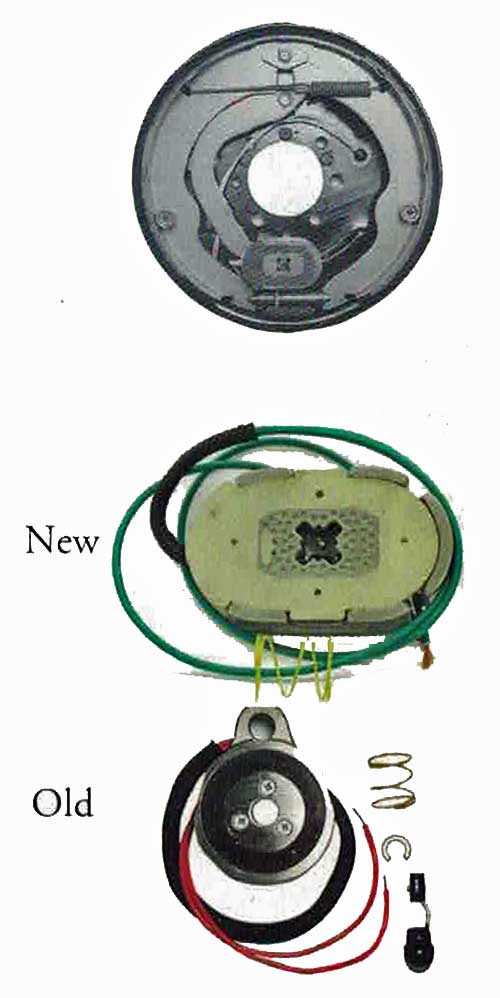

Hayes 10 x 2 1/4" Electric Brake
  • Capacity: 3,500 LBS per pair
  • In late 1987, this brake was redesigned to use an oval style magnet, replacing the round magnet
  • Old style magnets and replacement parts are available, complete assemblies are not

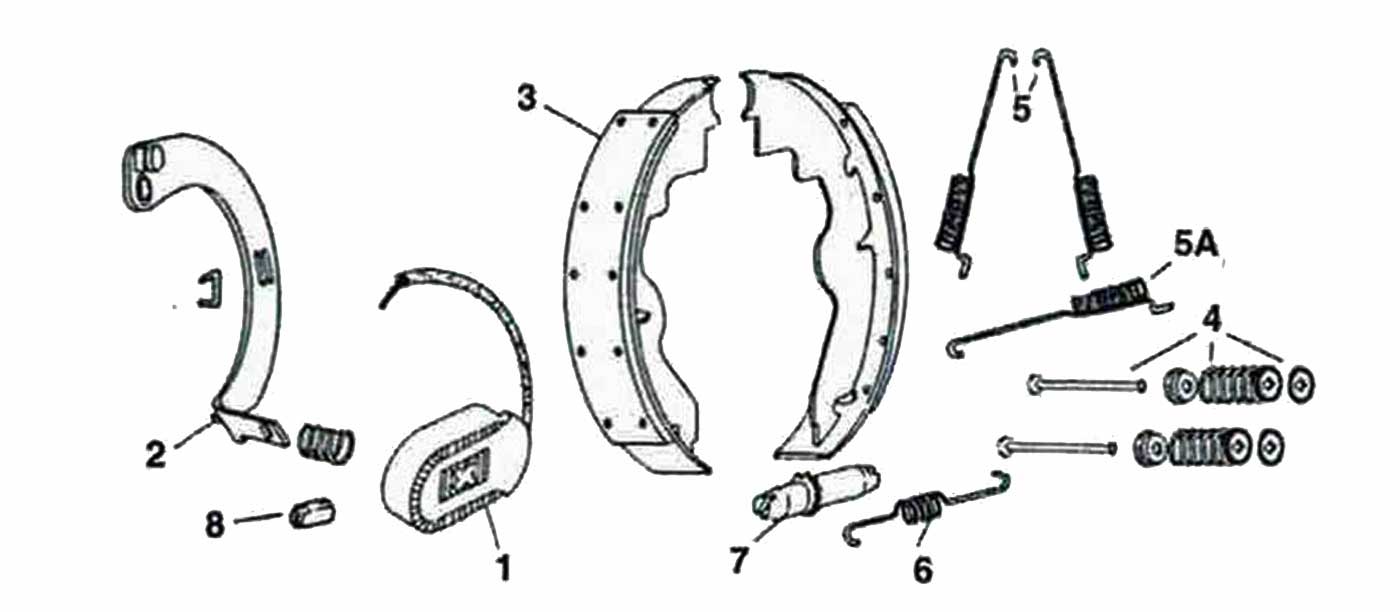

Hayes 10 x 2 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
LH/RH
Hayes Old Style 10X2 1/4" Electric Brake Reference Only
K23-542-00
182300
Hayes/AL-KO complete brake assembly left hand Reference Only
K23-543-00
182350
Hayes/AL-KO complete brake assembly right hand Reference Only
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
193800
Magnet kit, Hayes Round, Pre-1988 3.5K Reference Only
1
BP01-110
Magnet Kit, Fits Dexter, Hayes/AL-KO, Redline 3.5K
1
199250
Actuating Arm, Left Hand Reference Only
2
199300
Actuating Arm, Right Hand Reference Only
2
BP02-224
Actuating Arm Left Hand Fits Hayes After '88 & AL-KO
2
BP02-228
Actuating Arm Right Hand Fits Hayes After '88 & AL-KO
2
BP04-100
Shoe/Lining, Hayes/AL-KO 3.5K (One Wheel)
3
BP06-090
Shoe Hold Down Spring
4
BP07-105
Shoe Return Spring Dual Return Pkg of 2
5
BP07-110
Shoe Return Spring Single
5
BP08-070
Adjuster Spring 10" Electric
6
BP10-060
Adjuster 10" Electric
7
BP10-220
Adjuster Dust Plug, Pkg of 4
8
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
N/S
Hayes 10 x 2 1/4 Inch Electric Brake Assemblies
