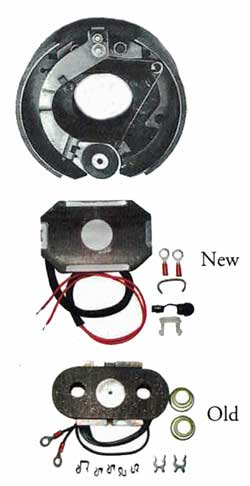

Hayes 12 1/4 x 3 1/2" Electric Brake
  • Capacity: 12,000 LBS per pair
  • Fits: Hayes/Al-Ko

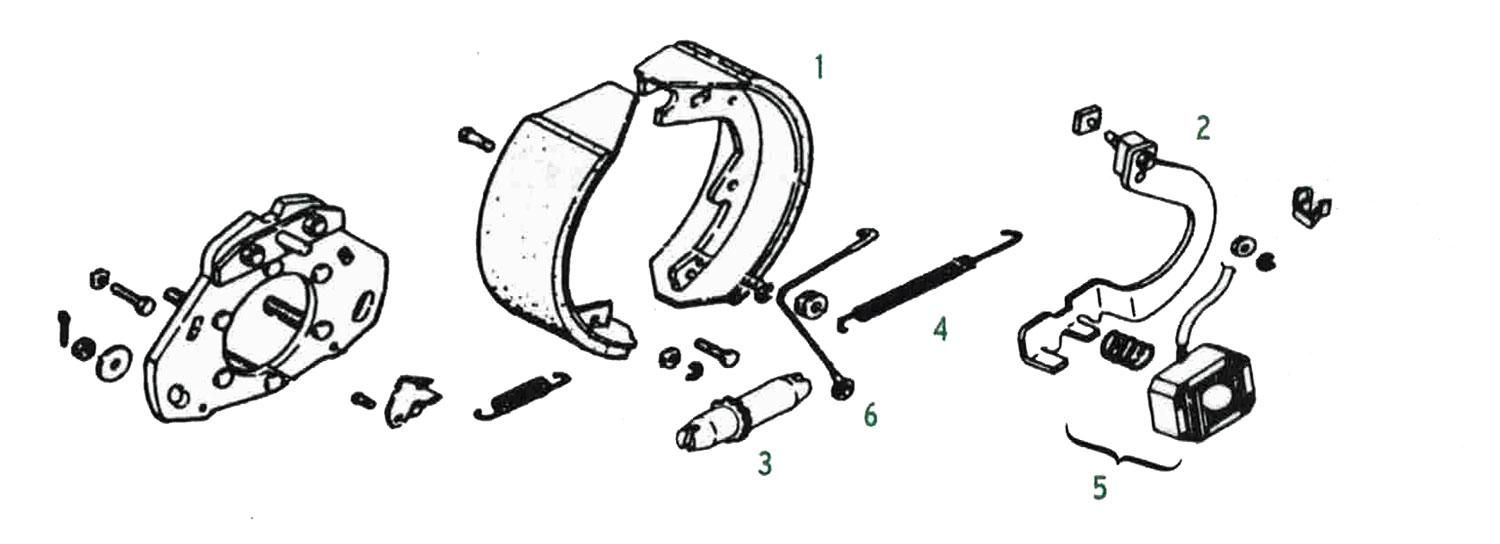

Hayes 12 1/4 x 3 1/2 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
K23-528-00
Hayes/Al-Ko complete brake assembly left hand
K23-529-00
Hayes/Al-Ko complete brake assembly right hand
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
BP01-270
196800
Magnet Kit, 12,000 LBS Before 1989 Reference Only
1
BP01-285
Vent Magnet, Fits 9K after 94, 10K after 87, 12K after 89
1
BP02-303
203025
Actuating Arm, Right Hand For Vent Magnet Reference Only
2
BP04-305
203050
Actuating Arm, left hand for vent magnet Reference Only
2
047-211-00
Actuating Arm, left hand for vent magnet
2
047-210-00
Actuating Arm, right hand for vent magnet
2
BP04-290
Shoe & Lining (One Wheel)
3
213500
Shoe Hold Down Kit (One Wheel) Reference Only
4
218400
Shoe Return Spring Reference Only
5
221600
Adjuster Spring Reference Only
6
046-165-00
Adjuster Spring
6
BP10-110
Adjuster, Right Hand
7
BP10-120
Adjuster, Left Hand
7
224600
Adjuster Lever Right Hand Reference Only
8
224800
Adjuster Lever Left Hand Reference Only
8
225800
Adjuster Cable Reference Only
9
568245
Adjuster Cable
9
226000
Adjuster Cable Pulley Reference Only
10
229800
Brake Dust Shield (TOP) Right Hand Reference Only
N/S
230000
Brake Dust Shield (TOP) Left Hand Reference Only
N/S
229400
Brake Dust Shield (Lower) Reference Only
N/S
036-140-01
Brake Dust Shield (2 per Wheel Required)
N/S

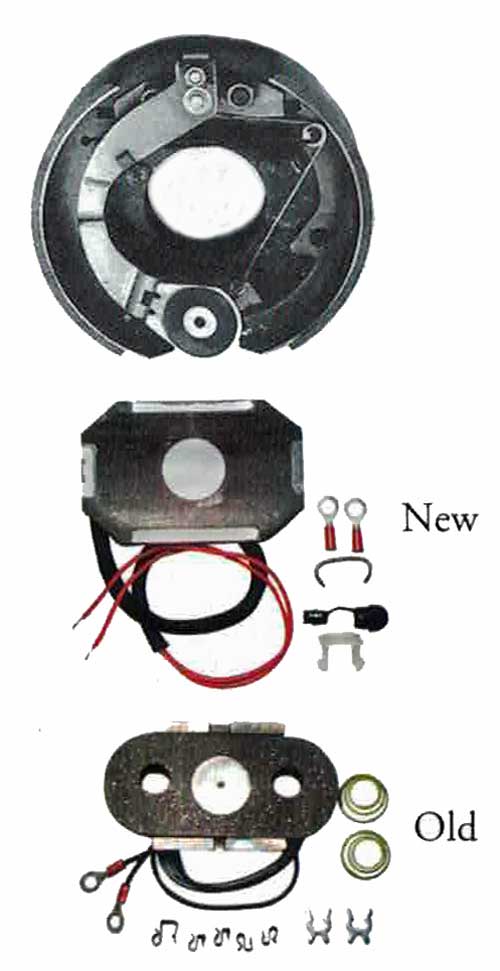

Hayes 12 1/4 x 3 1/2 Inch Electric Brake Assemblies
