Nev-R-Lube Trailer Hub/Drum 8 Bolt On 6 1/2" Bolt Circle 8k Axles
  • Fits with Dexter 50mm Nev-R-Lube axles
  • Capacity of 4,000 lbs. per each
  • 12" X 3 3/8" drum
  • 1/2" stud standard (9/16" & 5/8" available)

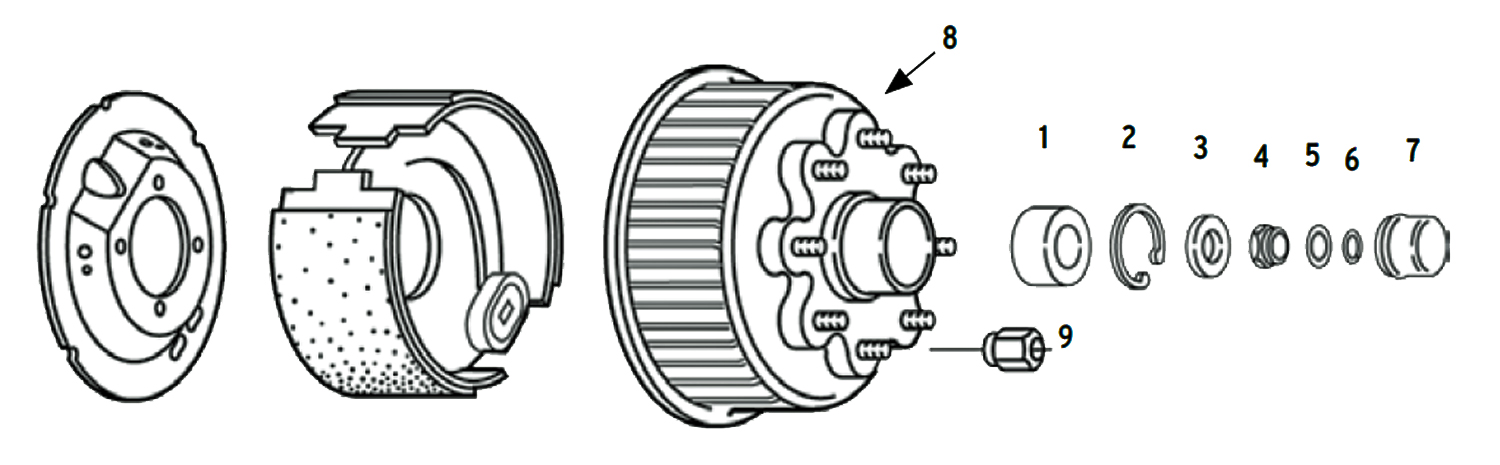

Trailer 8k Axle Nev-R-Lube Hub/Drum 8 bolt on 6 1/2 inch Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
STUD SIZE
8-389-81
Dexter Nev-R-Lube hub/drum only with bearing and retainer
9/16"
8-389-81UC3
Dexter Nev-R-Lube complete hub/drum assembly
9/16"
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
31-71-3
Bearing Cartridge (50MM X 84mm x 54mm)
1
69-93
Snap Ring Inner Bearing Retainer 3.35" OD
2
5-149
Spindle Washer 1" ID
3
6-183
Spindle Nut, 1"-14 Self-Locking
4
92-2
Torque Information Disc
5
69-96
Snap Ring Outer Retainer .821" OD
6
75DC
Grease Cap 3.355" OD Standard
7
7-132
Stud, 9/16" Diameter, Drive-In Style
8
6-53
Wheel Nut, 9/16" Cone Style
9
