Dexter/Lippert Axles: Kodiak 10K Torsion Suspension Single Wheel Trailer Disc Brakes
  • 25580 Outer/387A Inner Bearings
  • Fits Dexter/Lippert 10,000 lb. single wheel axles with torsion suspension
  • Oil Bath Lubrication
  • Disc Kit includes Rotors, Calipers, Brackets and Spacers for one axle.

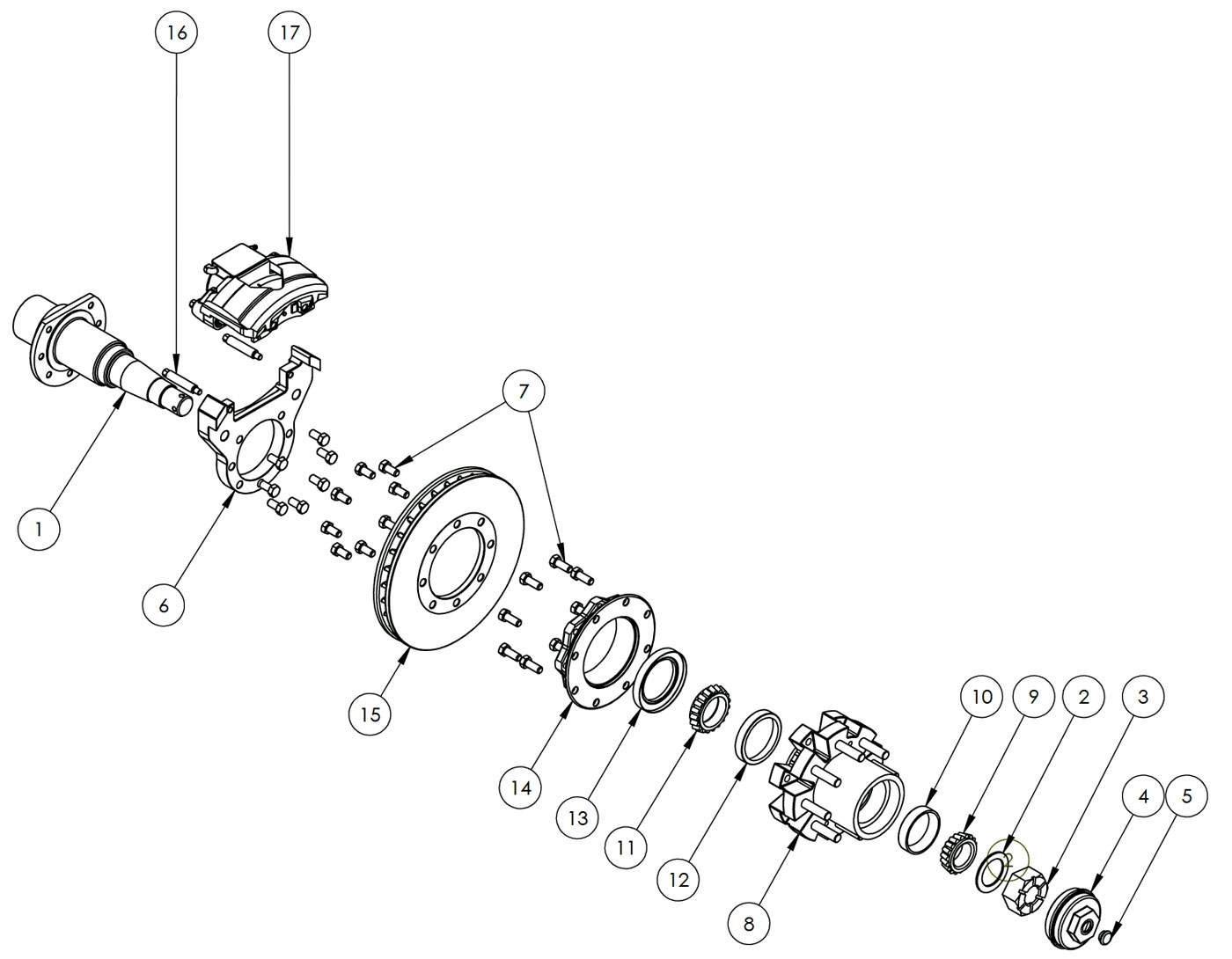

Kodiak Dexter/Lippert 10K Axle With Torsion Suspension and Single Wheels Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
2/R-13-10D-REER
Kodiak Dexter/Lippert 10k single wheel with torsion suspension one axle Disc Brake Set automotive finish rotor, E-coat caliper
2/R-13-10D-DDDD
Kodiak Dexter/Lippert 10k single wheel with torsion suspension one axle Disc Brake Set dacromet rotor/caliper
2/R-13-10D-DSDD
Kodiak Dexter/Lippert 10k single wheel with torsion suspension one axle Disc Brake Set dacromet rotor, stainless steel caliper
2/R-13-10D-HD-REER
Kodiak Dexter/Lippert 10k single wheel with torsion suspension one axle Disc Brake Set automotive finish rotor, E-coat caliper
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
Dexter/Lippert 10K Spindle
1
N/A
Spindle Washer
2
N/A
Spindle Nut
3
12011
Polycarbonate cap assembly with O-ring and rubber plug
4
Q-10K-RBR-PLUG
Dustcap Plug
5
CMB-13-10D-E
E-coated caliper mounting bracket for Dexter/Lippert 10K seven hole brake flange
6
CMB-13-10D-D
Dacromet coated caliper mounting bracket with 7 holes for 9 & 10K Dexter axle
6
CMB-13-10D-HD-E
E-coated caliper mounting bracket with 5 holes for Dexter 10K axle
6
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
7
8-288-3
#008-288-03 865 hub
8
8-288-3UC1
#008-288-03 865 hub kit
8
25580
Outer Bearing Cone
9
25520
Outer Bearing Cup
10
387A
Inner Bearing Cone
11
382A
Inner Bearing Cup
12
10-51
Oil Seal 010-051-01
13
RTR-11-10D-SPC
Rotor spacer. Mount to Dexter/Lippert 10K general duty hub. #8-288-03
14
RTR-11-10D-SPC-D
Dacromet rotor spacer. Mount to Dexter/Lippert 10K general duty hub. #8-288-03
14
RTR-13-10
13" Rotor automotive finish 10K axle
15
RTR-13-10-D
13" Dacromet coated rotor 10K axle
15
DBC-338-MHGB
Zinc plated steel guide bolt for DBC-338 caliper
16
DBC-338-MHGB-SS
Stainless steel guide bolt for DBC-338 caliper
16
DBC-338-MHBS
Zinc plated steel sleeve for guide bolt sleeve for DBC-338 caliper
16
DBC-338-MHBS-SS
Stainless steel guide bolt sleeve for DBC-338 caliper
16
DBC-338-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston
17
DBC-338-D
Loaded Dacromet coated caliper for 10K rotor; ceramic pads; nickel chrome piston
17
DBC-338-SS
Loaded Stainless Steel caliper for 10K rotor; ceramic pads; nickel chrome piston
17
DBC-338-HD-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston; with mounting clips
17
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-338-PSTN
3-3/8" nickel/chrome plated steel piston; standard in E-coat calipers
DBC-338-PSTN-SS
3 3/8" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-338-BOOT
EPDM dust boot for 338 piston
DBC-338-SEAL
EPDM Piston Seal
DBC-338-MHBSB
Guide bolt sleeve bushing for DBC-338 caliper
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
DBC-338-CRM-PAD
Ceramic pad for 338 disc brake caliper (Standard on DAC and stainless steel calipers)
DBC-2250-CRM-PAD
Ceramic pad for 2250 and 338HD disc brake caliper

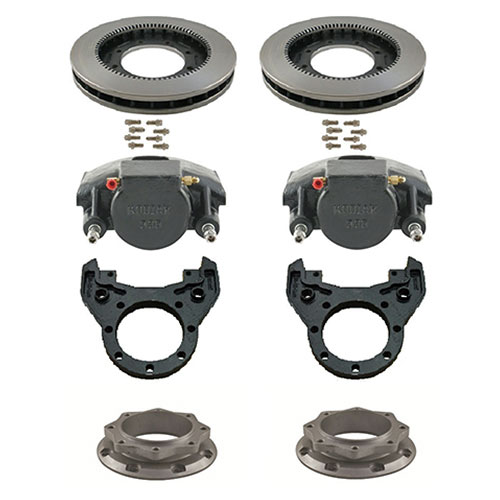

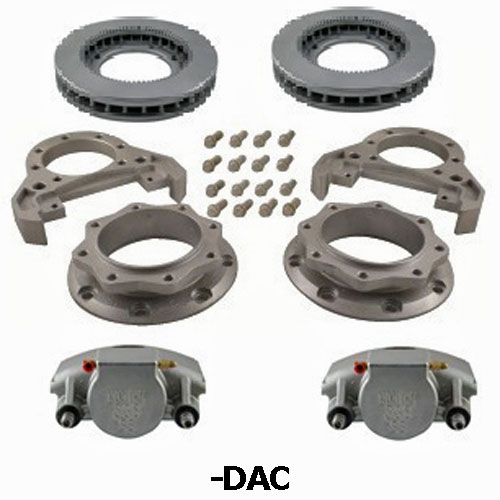

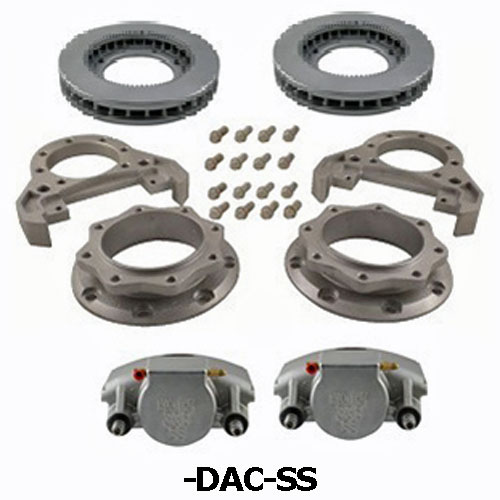

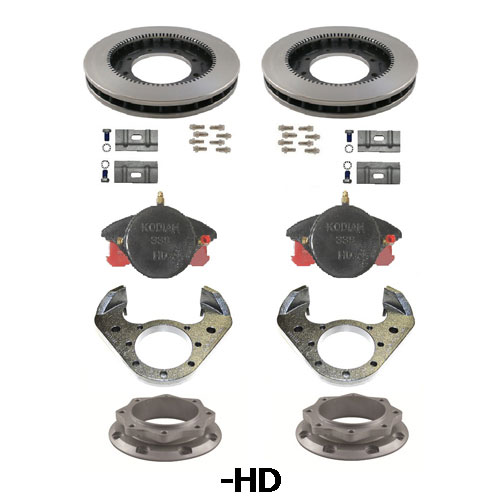

Kodiak Dexter/Lippert 10K Axle Single Wheel Torsion Suspension Automotive/E-coated Disc Brake Kit Kodiak Dexter/Lippert 10K Axle Single Wheel Torsion Suspension  Dacromet coated Disc Brake Kit Kodiak Dexter/Lippert 10K Axle Single Wheel Torsion Suspension Dacromet/Stainless Steel Disc Brake Kit Kodiak Dexter/Lippert 10K Axle Single Wheel Torsion Suspension HD Disc Brake Kit
