Rockwell American Axles: Kodiak 10K Special Single Wheel Trailer Disc Brakes
  • 25580 Outer/28580 Inner Bearings
  • Fits Rockwell American 10,000 lb. special single wheel axle applications
  • Oil Bath Lubrication
  • Disc Kit includes Rotors, Calipers, Brackets and spacers for one axle.

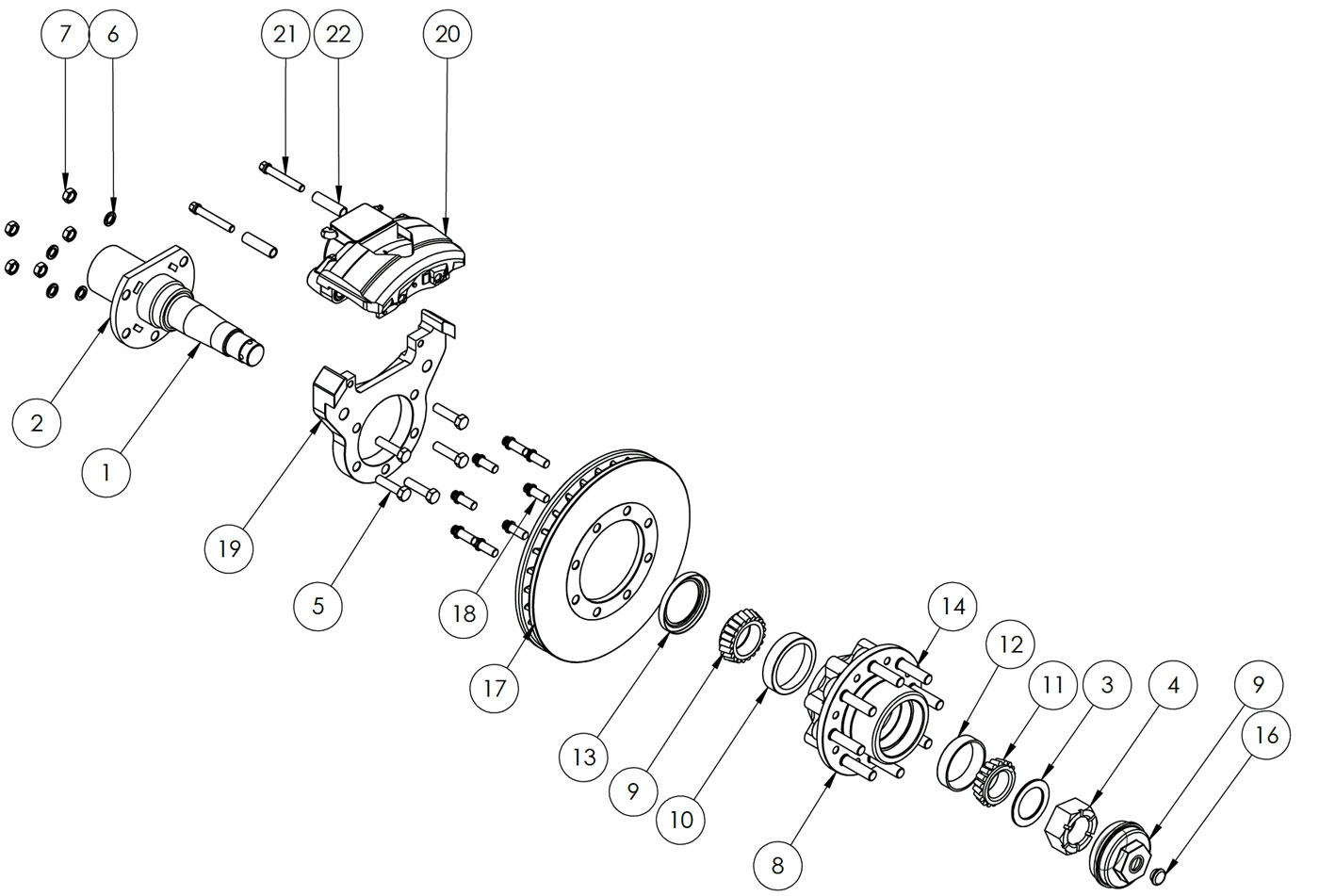

Kodiak Rockwell American 10K Axle Special Single Wheel Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
2/RCMHS-13-10H
2/H-13-10H-REER
Kodiak Rockwell American 10k special single wheel one axle Disc Brake Set automotive finish rotor, E-coat caliper. Note: Brake flange to inner bearing shoulder = 1.90" and is non-standard. This offers approximately 4" additional frame width.
2/H-13-10H-DDDD
Kodiak Rockwell American 10k special single wheel one axle Disc Brake Set dacromet rotor/caliper. Note: Brake flange to inner bearing shoulder = 1.90" and is non-standard. This offers approximately 4" additional frame width.
2/H-13-10H-DSDD
Kodiak Rockwell American 10k special single wheel one axle Disc Brake Set dacromet rotor, stainless steel caliper. Note: Brake flange to inner bearing shoulder = 1.90" and is non-standard. This offers approximately 4" additional frame width.
2/H-13-10H-HD-REER
Kodiak Rockwell American 10k HD special single wheel one axle Disc Brake Set automotive finish rotor, E-coat caliper. Note: Brake flange to inner bearing shoulder = 1.90" and is non-standard. This offers approximately 4" additional frame width.
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
#99 Spindle
1
N/A
10k 5 hole brake flange
2
N/A
Spindle Washer
3
N/A
Spindle Nut
4
1/2-20UNF x 2 Hex Bolt Reference
5
1/2 Lock Washer Reference
6
1/2-20UNF Nut Reference
7
H/S-99-SW
10K hub spacer for #99 spindle.
8
H/S-99-SW-D
Dacromet coated 10K hub spacer for #99 spindle.
8
28580
Inner Bearing Cone #99 Spindle
9
28521
Inner Bearing Cup #99 Spindle
10
25580
Outer Bearing Cone #99 Spindle
11
25520
Outer Bearing Cup #99 Spindle
12
N/A
Oil Seal 568303 OR 091030 #99 Spindle
13
R/H-LB3.165
Drive-In Wheel Stud 5/8" X 3.165"
14
12011
Polycarbonate cap assembly with O-ring and rubber plug
15
Q-10K-RBR-PLUG
Dustcap Plug
16
RTR-13-10
13" Rotor automotive finish 10K axle
17
RTR-13-10-D
13" Dacromet coated rotor 10K axle
17
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
18
CMB-13-10Q-E
E-coated caliper mounting bracket with 7 holes for 9 & 10K Dexter torsion axle; 13" rotor
19
CMB-13-10Q-D
Dacromet coated caliper mounting bracket with 7 holes for 9 & 10K Dexter torsion axle; 13" rotor
19
CMB-13-10Q-HD-E
E-coated caliper mounting bracket w/5 holes for 10K axle; 13" rotor
19
DBC-338-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston
20
DBC-338-D
Loaded Dacromet coated caliper for 10K rotor; ceramic pads; nickel chrome piston
20
DBC-338-SS
Loaded Stainless Steel caliper for 10K rotor; ceramic pads; nickel chrome piston
20
DBC-338-HD-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston; with mounting clips
20
DBC-338-MHGB
Zinc plated steel guide bolt for DBC-338 caliper
21
DBC-338-MHGB-SS
Stainless steel guide bolt for DBC-338 caliper
21
DBC-338-MHBS
Zinc plated steel sleeve for guide bolt sleeve for DBC-338 caliper
21
DBC-338-MHBS-SS
Stainless steel guide bolt sleeve for DBC-338 caliper
21
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-338-PSTN
3-3/8" nickel/chrome plated steel piston; standard in E-coat calipers
DBC-338-PSTN-SS
3 3/8" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-338-BOOT
EPDM dust boot for 338 piston
DBC-338-SEAL
EPDM Piston Seal
DBC-338-MHBSB
Guide bolt sleeve bushing for DBC-338 caliper
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
DBC-338-CRM-PAD
Ceramic pad for 338 disc brake caliper (Standard on DAC and stainless steel calipers)
DBC-2250-CRM-PAD
Ceramic pad for 2250 and 338HD disc brake caliper

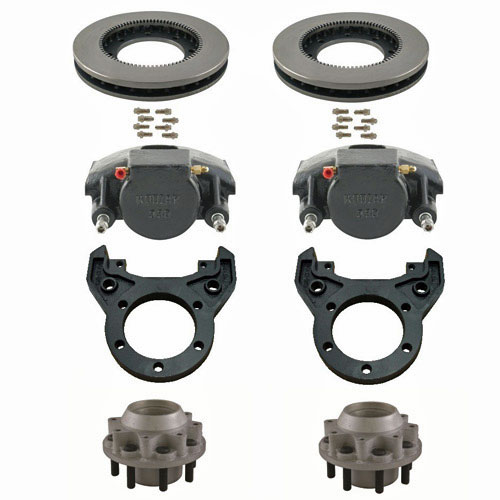

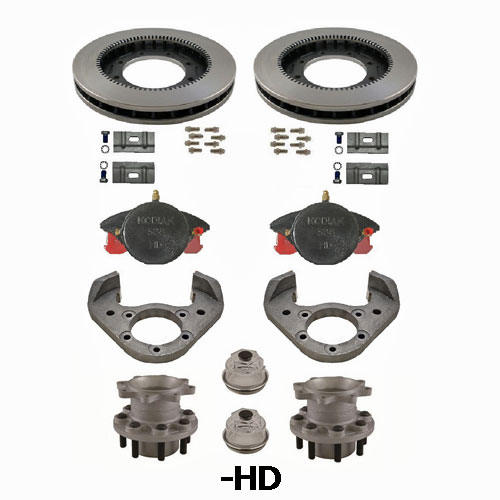

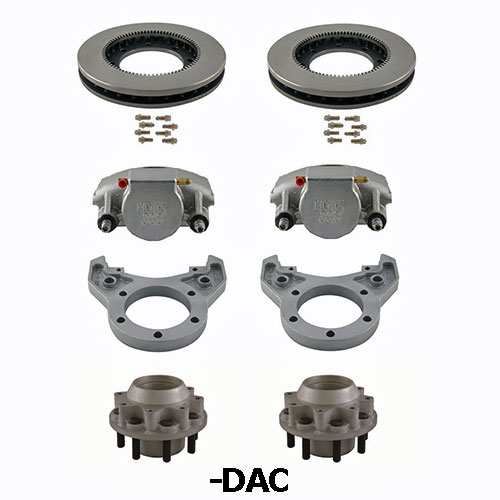

Kodiak Rockwell American 10K Axle Special Single Wheel Automotive/E-coated Disc Brake Kit Kodiak Rockwell American 10K Axle Special Single Dacromet coated Disc Brake Kit Kodiak Rockwell American 10K Axle Special Single Wheel HD Disc Brake Kit
