Rockwell American Axles: Kodiak 12K Single Wheel Trailer Disc Brakes
  • 39590 Inner/JM205149 Outer Bearing
  • Fits Rockwell American 12,000 lb. Single wheel axles
  • Oil Bath Lubrication
  • Disc Kit includes Rotors, Calipers, Brackets and Spacers for one axle.

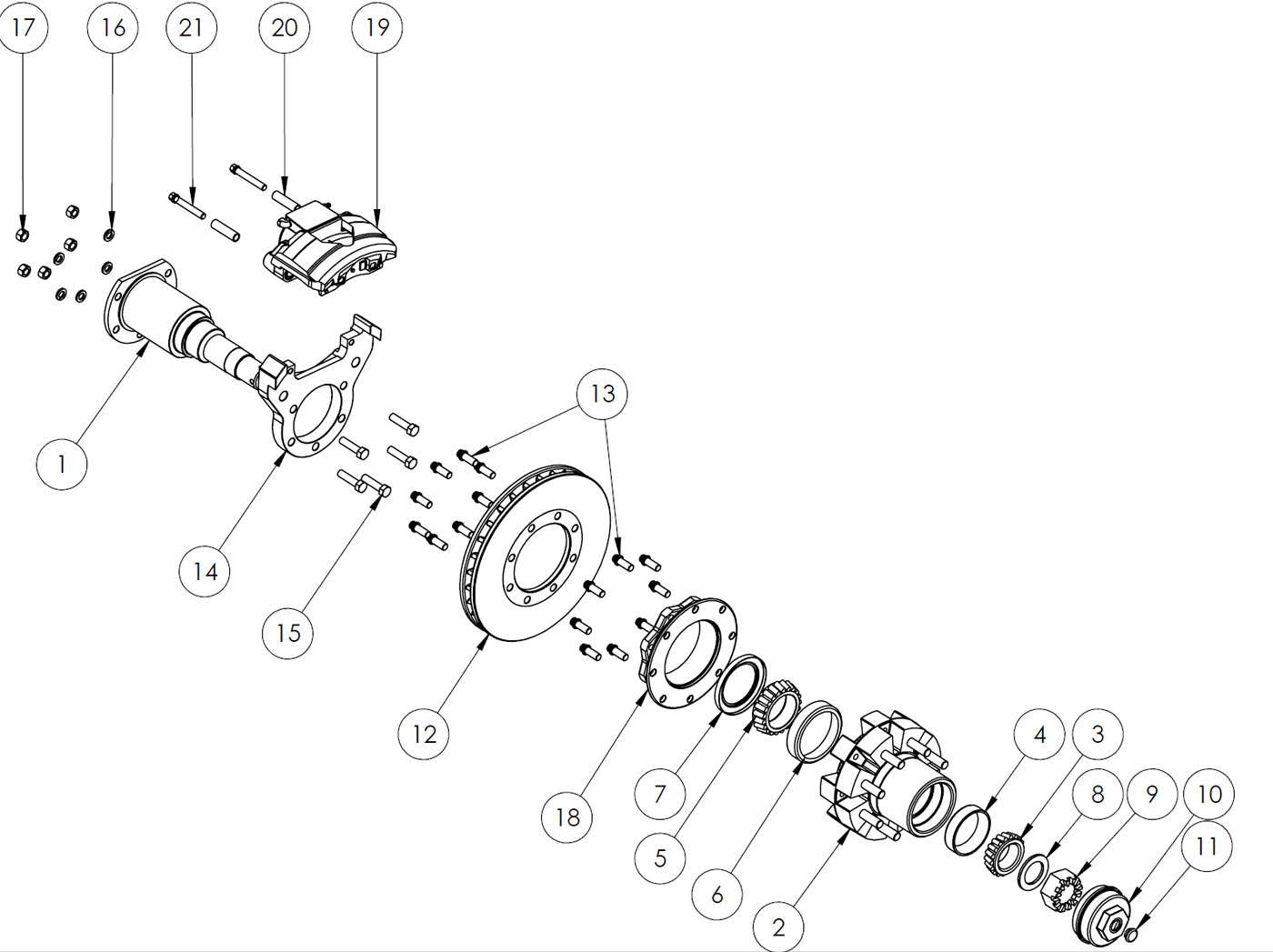

Kodiak Rockwell American 12K Single Wheel Axle Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
2/R-13-12Q-REER

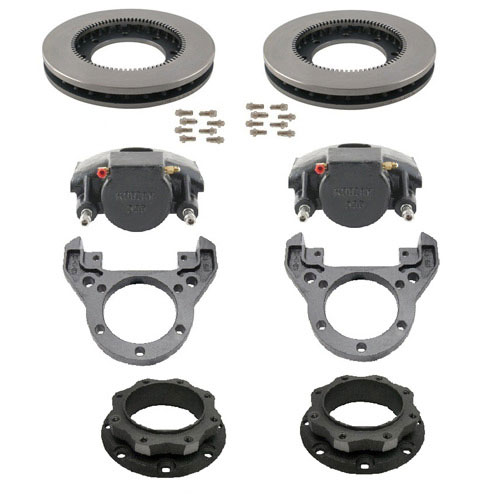

Kodiak Rockwell American 12k Single wheel one axle Disc Brake Set automotive finish rotor, E-coat caliper
2/R-13-12Q-HD-REER

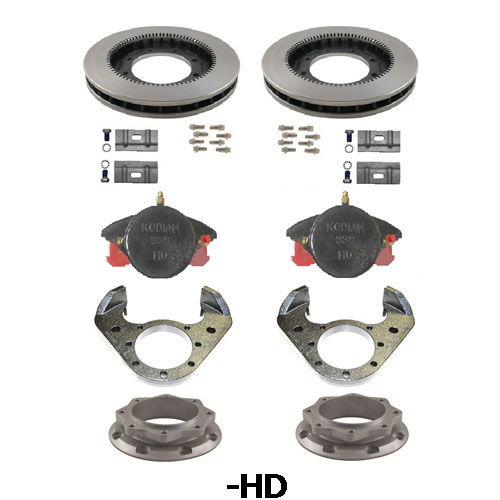

Kodiak Rockwell American 12k Single wheel one axle HD Disc Brake Set automotive finish rotor, E-coat caliper
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
Rockwell American #160 Spindle
1
Rockwell American Hub
2
JM205149
Outer Bearing Cone
3
JM205110
Outer Bearing Cup
4
39590
Inner Bearing Cone
5
39520
Inner Bearing Cup
6
N/A
Oil Seal 091023 OR 568217
7
N/A
Spindle Washer
8
N/A
Spindle Nut
9
12011
Polycarbonate cap assembly with O-ring and rubber plug
10
Q-10K-RBR-PLUG
Dustcap Plug
11
RTR-13-10
11.35" Rotor automotive finish for 10K and 12K axle
12
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
13
CMB-13-10Q-E
E-coated caliper mounting bracket with 7 holes for 9 & 10K Dexter torsion axle; 13" rotor
19
CMB-13-10A-HD-E
E-Coated caliper mounting bracket for Rockwell five hole brake flange
14
1/2-20UNF x 2 1/2 Hex Bolt Reference
15
1/2 Lock Washer Reference
16
1/2-20UNF NUT Reference
17
RTR-11-12Q-SPCR
Spacer adapts ROTOR-11-12Q to Dexter and Rockwell 12K hub
18
DBC-338-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston
19
DBC-338-HD-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston; with mounting clips
19
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
20-21
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-250-PSTN
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
DBC-250-SEAL
EPDM Piston Seal
DBC-250-BOOT-SI
Silicone Dust Boot with stainless steel compression ring
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
DBC-338-PSTN
3-3/8" nickel/chrome plated steel piston; standard in E-coat calipers
DBC-338-PSTN-SS
3 3/8" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-338-BOOT
EPDM dust boot for 338 piston
DBC-338-SEAL
EPDM Piston Seal
DBC-338-MHBSB
Guide bolt sleeve bushing for DBC-338 caliper
DBC-338-CRM-PAD
Ceramic pad for 338 disc brake caliper (Standard on DAC and stainless steel calipers)
DBC-2250-CRM-PAD
Ceramic pad for 2250 and 338HD disc brake caliper
Kodiak Rockwell American 12K Axle Single Wheel Automotive/E-coated Disc Brake Kit Kodiak Rockwell American 12K Axle Single Wheel Automotive/E-coated HD Disc Brake Kit
