Kodiak 14K Special Single Wheel Trailer Disc Brakes
  • 39590 Inner/JM205149 Outer Bearing
  • Fits Rockwell American 12,000 lb. Single wheel axles
  • Oil Bath Lubrication
  • Brake flange to inner bearing shoulder = 2.36" and is non-standard. This offers approximately 4.7" additional frame width.

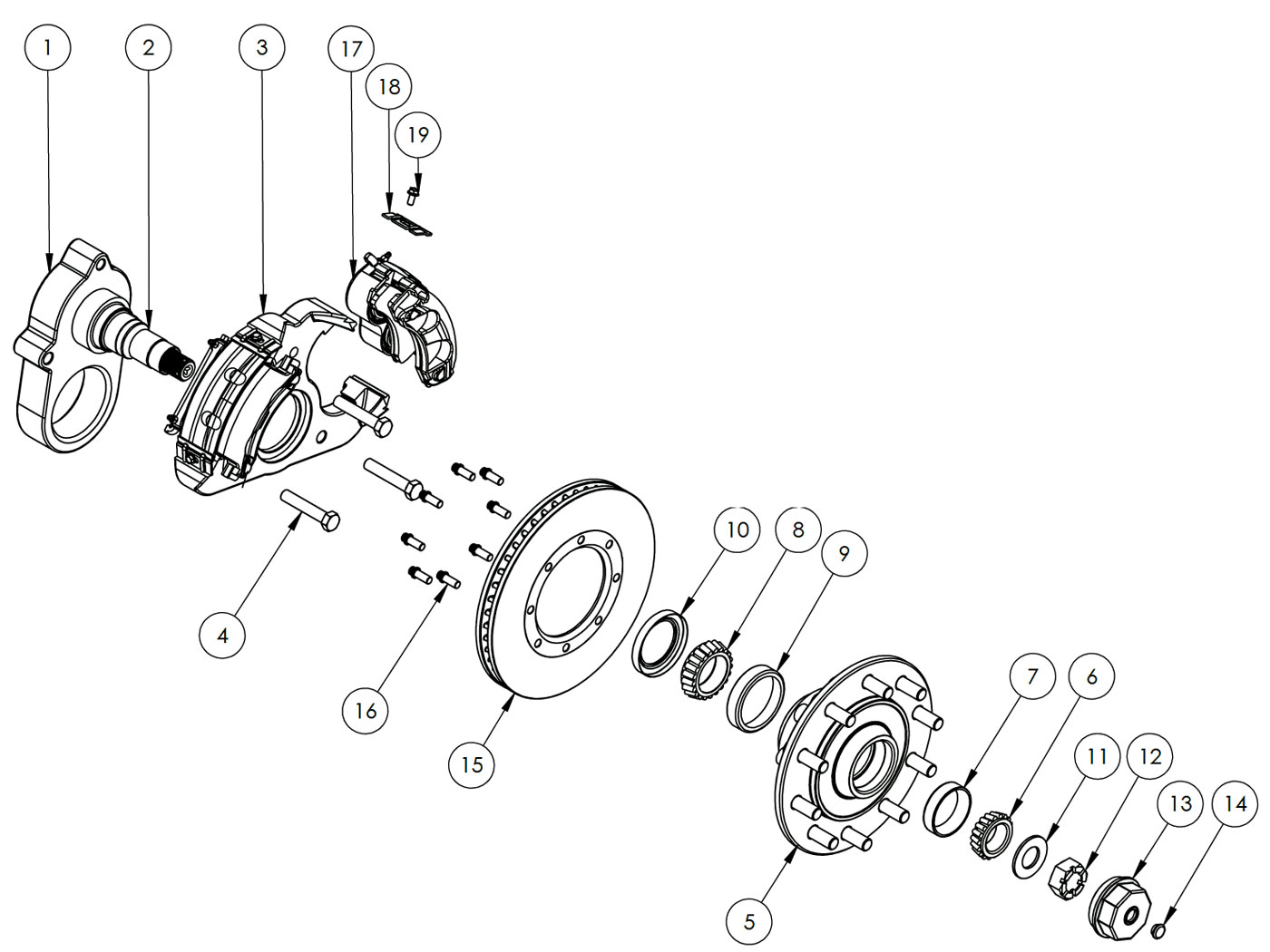

Kodiak 14K Special Single Wheel Axle Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
2/H-15-14QH-EEEE
Kodiak 12k Special Single wheel one axle Disc Brake Set E-coat rotor/caliper
2/RCMHS-15-11-FTH-E
Kodiak 12k Special Single wheel one axle Disc Brake Set E-coat rotor and caliper
2/H-15-14-FTH-EEEE
Kodiak 12k Special Single wheel one axle Disc Brake Set E-coat rotor/caliper
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
DROP-ARM-6.5-FT
6 1/2" DROP ARM
1
N/A
#160 Spindle
2
CMB2-15-14-E
E-coated caliper mounting bracket for DBC-2250 and Rotor-15, mounts to 5 bolt brake flange
3
CMB2-15-14-E
E-coated caliper mounting bracket for two DBC-2250 and Rotor-15-FT, mounts to 3 bolt drop arm
3
CMB-13-10A-HD-E
E-Coated caliper mounting bracket for Rockwell five hole brake flange
3
HFBOLT 0.75-16x4x1.75-N
3/4-16UNFx3 1/2 HEX BOLT Reference
4
H/S-160-SW-E
14k hub spacer for #160 spindle; 10 on 11 1/4 BCD; 8.66" pilot; wheel bolts M22 x 3.4. Accommodates 19.5" wheel with < 5.6" inset. (ref. Alcoa P/N 773600)
5
HUB/SPACER-160-SW-FT-11-E
H/W-160-SWFT-11ES
10k hub spacer for #160 spindle; 8 on 6.5 BCD; 4.75" pilot with 5/8" wheel studs. Accommodates 22.5" wheel from Factory Transports' 22.5x7.5
5
H/S-160-SW-FT-E
14k hub spacer for #160 spindle; 10 on 11 1/4 BCD; 8.66" pilot; wheel bolts M22 x 3.4. Accommodates 22.5" wheel with 3.12" inset (ref. Alcoa P/N 893630)
5
JM205149
Outer Bearing Cone
6
JM205110
Outer Bearing Cup
7
39590
Inner Bearing Cone
8
39520
Inner Bearing Cup
9
N/A
Oil Seal 568217 OR 091023
10
N/A
Spindle Washer
11
N/A
Spindle Nut
12
12011
Polycarbonate cap assembly with O-ring and rubber plug
13
Q-10K-RBR-PLUG
Dustcap Plug
14
RTR-15-E
15" Rotor E-coated 14k hub
15
RTR-15-FT-E
15" Rotor for 14K Hub/Spacer-160-SW-FT-E
15
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
16
DBC-2250-E
E- Coated Caliper with 2 - 2 1/2" nickel chrome plated pistons; ceramic pads; with mounting clips
17
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
18-19
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-2250-CRM-PAD
Ceramic pad for 2250 and 338HD disc brake caliper
DBC-250-PSTN-SS
2 1/2" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-250-PSTN
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
DBC-250-SEAL
EPDM Piston Seal
DBC-250-BOOT-SI
Silicone Dust Boot with stainless steel compression ring
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug

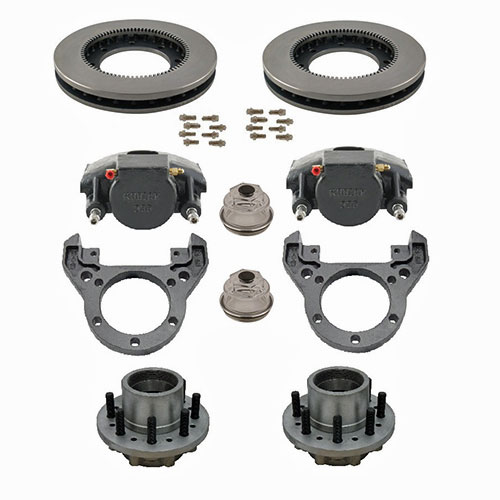

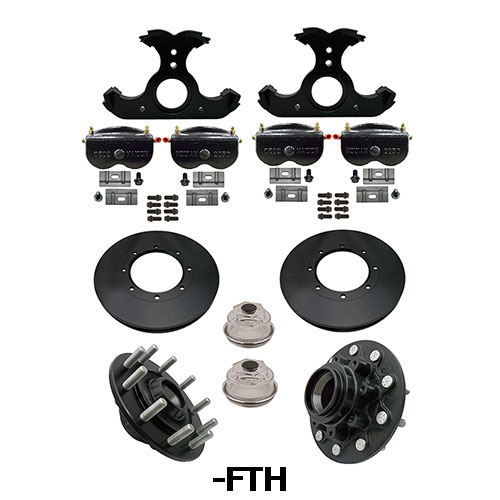

Kodiak Rockwell American 14K Axle Single Wheel E-coated Disc Brake Kit Kodiak Rockwell American 12K Axle Single Wheel E-coated FT Disc Brake Kit
