Kodiak 5.2-6K 12" Rotor Surge Trailer Disc Brakes
  • 25580 Inner/15123 Outer Bearings
  • Fits Dexter and most other 5,200 lb./6,000 lb. axles
  • Standard Grease & Ez-Lube Applications
  • Disc Kit includes Rotors, Calipers & Brackets for one axle.

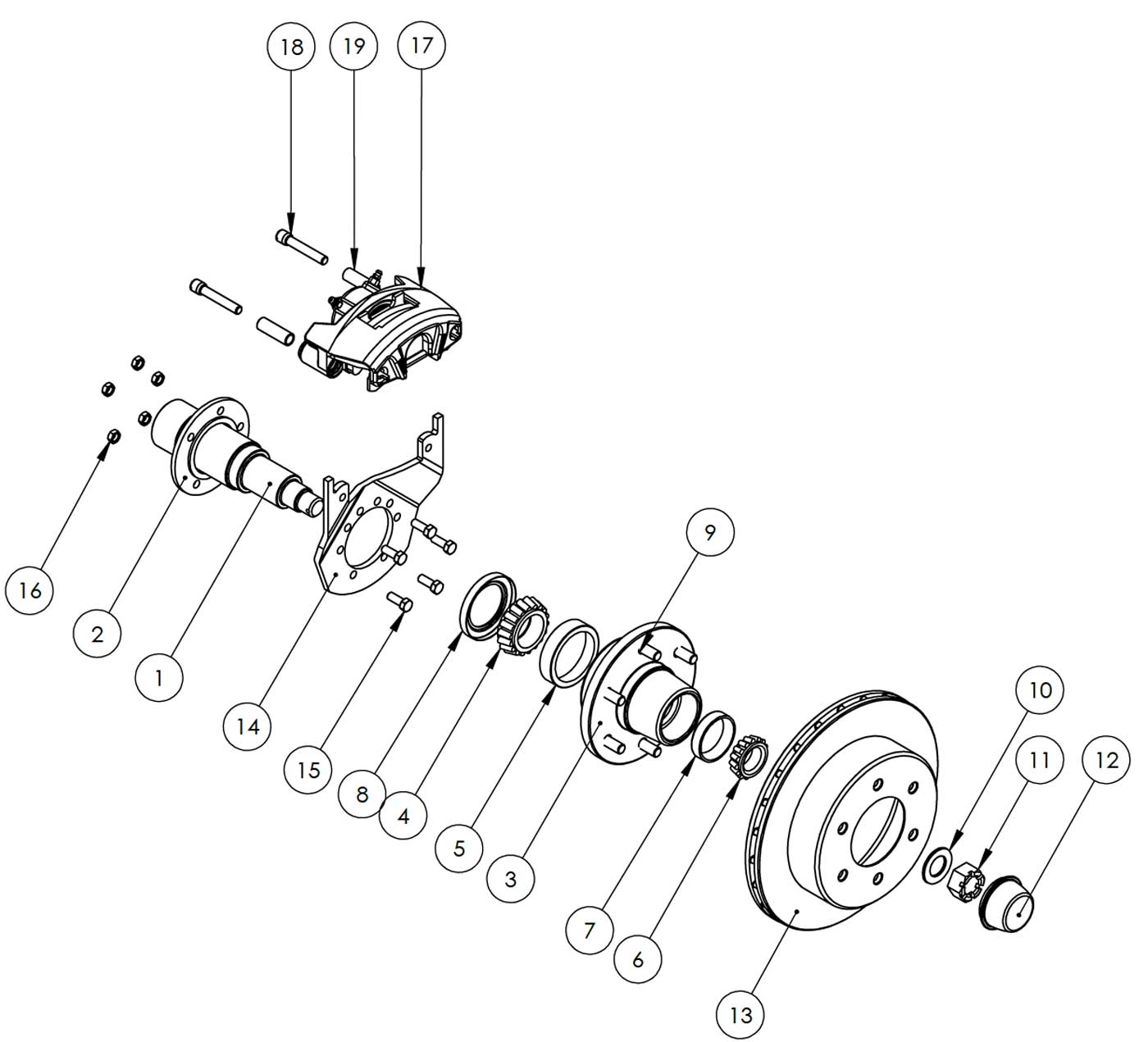

Kodiak 5.2-6K 12 Inch Surge Rotor Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
2-R-12-DDD-SB
Kodiak One Axle Surge Disc Brake Set 5.2-6K Dacromet 12"
2/R-12-DKD-SB
Kodiak One Axle Surge Disc Brake Set 5.2-6K Dacromet 12" KodaGuard® Coated Calipers
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
#42 Spindle
1
N/A
#42 Brake Flange
2
655 Hub
3
Q-H82655-2-1GV-12
Galvanized Hub; 655 bolt pattern 2" Wheel Stud and Cupped; fits #42 spindle
3
25580
Inner Bearing Cone
4
25520
Kodiak Inner Bearing Cup
5
15123
Kodiak Outer Bearing Cone
6
15245
Outer Bearing Cup
7
RTR/HUB-12&13-SEAL
Grease Seal (472920 National)
8
R/H-LB-1.69
1/2-20 x 1.69 GR 8 Yellow Zinc Wheel Bolt; 0.544" knurl diameter
9
N/A
Spindle Washer
10
N/A
Spindle Nut
11
Metal dust cap 2.440"
12
RTR-12-D
12" dacromet coated rotor
13
RTR-12-SS
12" stainless steel rotor
13
CMB-12-SB-L-D
Dacromet coated Left Hand caliper mounting bracket for 12" rotor, surge brake apps only, permits bracket installation without removing hub
14
CMB-12-SB-R-D
Dacromet coated Right Hand caliper mounting bracket for 12" rotor, surge brake apps only, permits bracket installation without removing hub
14
3/8-16UNCx1.00 HEX BOLT Reference Only
15
3/8-16UNC NUT Reference Only
16
DBC-225-D
Loaded dacromet coated caliper for 12" rotor; ceramic pads
17
DBC-225-D-BPSS
Loaded dacromet coated caliper for 12" rotor; ceramic pads with stainless steel backing plates
17
DBC-225-KG
Loaded KodaGuard® coated caliper for 12" rotor; ceramic pads with stainless steel backing plates
17
DBC-225-SS
Loaded stainless steel caliper for 12" rotor; ceramic pads with stainless steel backing plates
17
DBC-225-PB-D
Dacromet coated lever actuated mechanical parking brake caliper; ceramic pads
17
ALN-1375-SS
1/2"-20X1.375" Acorn Lug Nut, 60 Degree, Stainless Steel
N/S
CMB-12-U-LOCKNUT
3/8"-24 Zinc NF grade 5 locknut
N/S
CMB-12-U-BOLT
3/8"-24 x 1" Zinc NF grade 5 hex cap for brake flange
N/S
DBC-MHBS
Stainless Steel Guide Bolt Sleeve
18
DBC-MHGB
Stainless steel guide bolt (M11 x 1.5) w/Thread Locker (5/16" Allen or 1/2" Hex)
19
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-225-CERM-PAD
Friction Pads (Ceramic Standard)
DBC-225-CERM-PAD-SS
Friction Pads (Ceramic with stainless steel backing plate)
DBC-225-PSTN-SS
2 1/4" Stainless Steel Piston
DBC-225-PISTON-HC
DBC-225-PSTN-HC
2 1/4" hard chrome piston Reference Only
DBC-225-SEAL
EPDM Piston Seal #4986
DBC-225-BOOT-SI
Silicone Dust Boot #4985
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
DBC-MHBSB
EPDM Bushing For Guide Bolt Sleeve
N/A
DBC-MB
O-ring for Guide Bolt Sleeve (Use For OLDER Design) Reference Only
DBC-225-K
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston

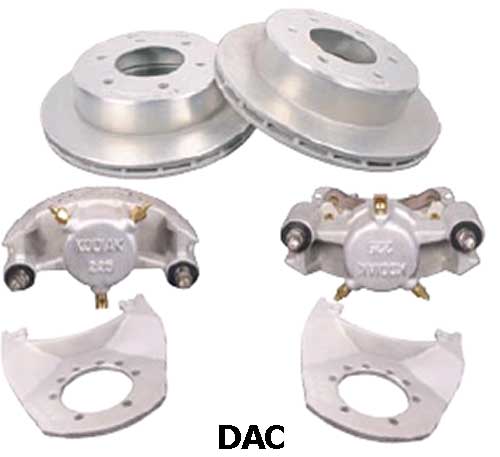

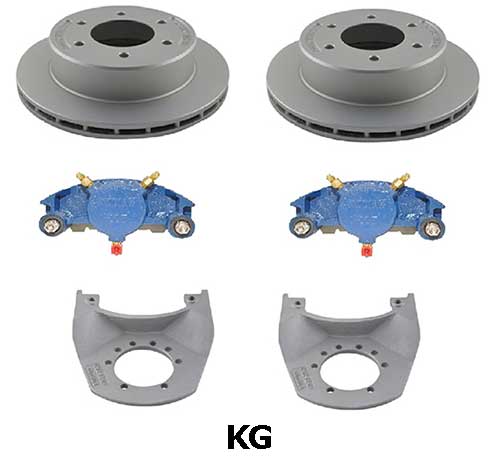

Kodiak 5.2-6K 12 Inch Rotor Surge Dacromet Disc Brake Kits Kodiak 5.2K 12 Inch Rotor Surge Dacromet/KodaGuard Disc Brake Kits
