Kodiak 7.2K 13" Integral Hub/Rotor Trailer Disc Brakes
  • 25580 Inner/02475 Outer Bearings
  • Fits Dexter and most other 7,000 lb. axles
  • Standard Grease & Oil Applications
  • Disc Kit includes Hub/Rotors, Calipers & Brackets for one axle.

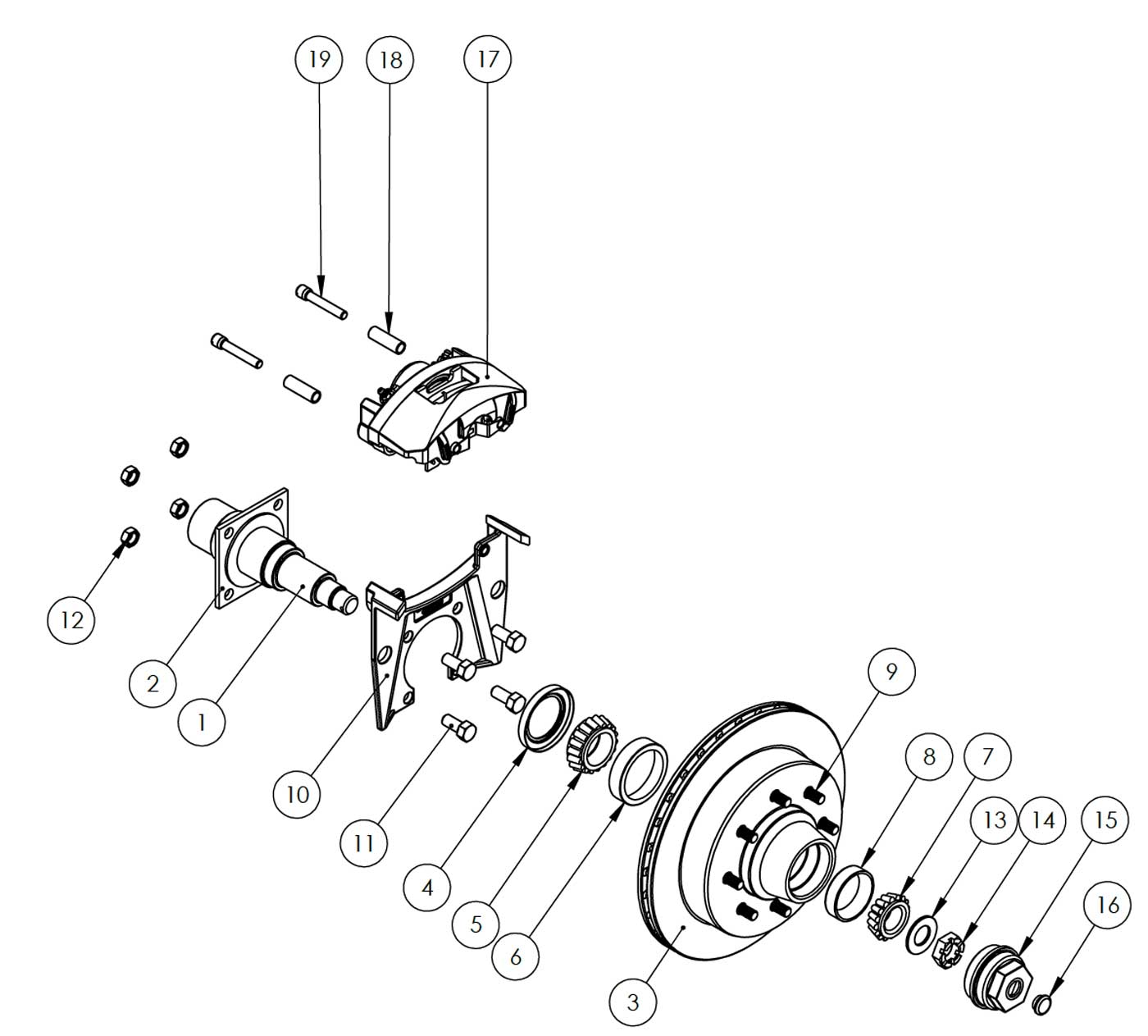

Kodiak 7.2K 13 Inch Hub/Rotor Integral Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
2/H-133-72-9-REE
Kodiak One Axle Integral Disc Brake Set 13" automotive finish hub/rotor E-coat caliper (fits 865 idler hub with 9/16" wheel bolts)
2/H-133-72-9-EEE
Kodiak One Axle Integral Disc Brake Set E-coated hub/rotor and caliper (fits 865 idler hub with 9/16" wheel bolts)
2/H-133-72-5-REE
Kodiak One Axle Integral Disc Brake Set 13" automotive finish hub/rotor E-coat caliper (fits 865 idler hub with 5/8" wheel bolts)
2/H-133-72-5-EEE
Kodiak One Axle Integral Disc Brake Set E-coated hub/rotor and caliper (fits 865 idler hub with 5/8" wheel bolts)
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
#42 Spindle
1
N/A
#42 Brake Flange
2
R/H-133-8-9-R-S
13" Integral rotor automotive finish (fits 865 idler hub with 9/16" wheel bolts)
3
R/H-133-8-9-E-S
13" E-coat Integral rotor (fits 865 idler hub with 9/16" wheel bolts)
3
R/H-133-8-5-R-S
13" Integral rotor automotive finish (fits 865 idler hub with 5/8" wheel bolts)
3
R/H-133-8-5-E-S
13" E-coat Integral rotor (fits 865 idler hub with 5/8" wheel bolts)
3
472920 (National)
Grease Seal
4
25580
Inner Bearing Cone
5
25520
Kodiak Inner Bearing Cup
6
02475
8K Hub on 7K axle Outer Bearing Cone
7
02420
8K Hub on 7K axle Outer Bearing Cup
8
R/H-LB2.5
Drive-In Wheel Stud 9/16" X 2.5"
9
R/H-LB3.165
Drive-In Wheel Stud 5/8" X 3.165"
9
CMB-133-7.2D-E
E-coated caliper mounting bracket for 7.2K axles
10
9/16-18UNF X 1 1/4 hex bolt Reference Only
11
9/16-18UNF Nut Reference Only
12
N/A
Spindle Washer
13
N/A
Spindle Nut
14
Dust Caps
15
ROTOR/HUB-8K-PCAP
Polycarbonate Dustcap Reference Only
15
Q-10K-RBR-PLUG
Dustcap Plug
16
Loaded E-coated caliper for 13" rotor; ceramic pads; nickel chrome piston
17
ALN-1375-SS
1/2"-20X1.375" Acorn Lug Nut, 60 Degree, Stainless Steel
N/S
DBC-MHBS
Stainless Steel Guide Bolt Sleeve
18
DBC-MHGB
Stainless steel guide bolt (M11 x 1.5) w/Thread Locker (5/16" Allen or 1/2" Hex)
19
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-250-CRM-PAD
Friction Pads (Ceramic standard on Dacromet coated calipers)
DBC-250-CRM-PAD-SS
Friction Pads (Ceramic with stainless steel backing plate - standard on stainless steel calipers)
DBC-250-PSTN-SS
2 1/2" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-250-PSTN
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
DBC-250-SEAL
EPDM Piston Seal
DBC-250-BOOT-SI
Silicone Dust Boot with stainless steel compression ring
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
DBC-MHBSB
EPDM Bushing For Guide Bolt Sleeve
N/A
DBC-MB
O-ring for Guide Bolt Sleeve (Use For OLDER Design) Reference Only
DBC-250-K
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston

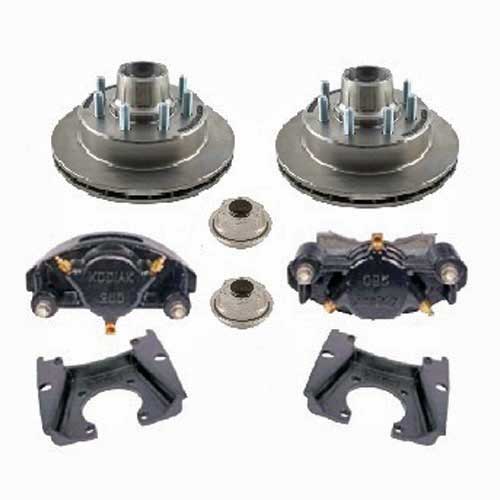

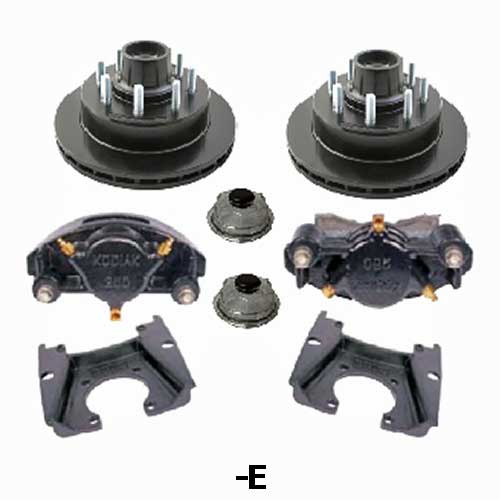

Kodiak 7.2K 13 Inch Integral Automotive Finish Disc Brake Kits Kodiak 7.2k 13 Inch Integral E-Coat Disc Brake Kits
