Al-Ko/Rockwell Axles: Kodiak 8K HD Trailer Disc Brakes
  • 25580 Inner/02475 Outer Bearings
  • Fits Al-Ko/Rockwell American 8,000 lb. axles
  • Oil Bath or Greased Bearing Lubrication
  • Disc Kit includes Rotors, Calipers & Brackets for one axle.

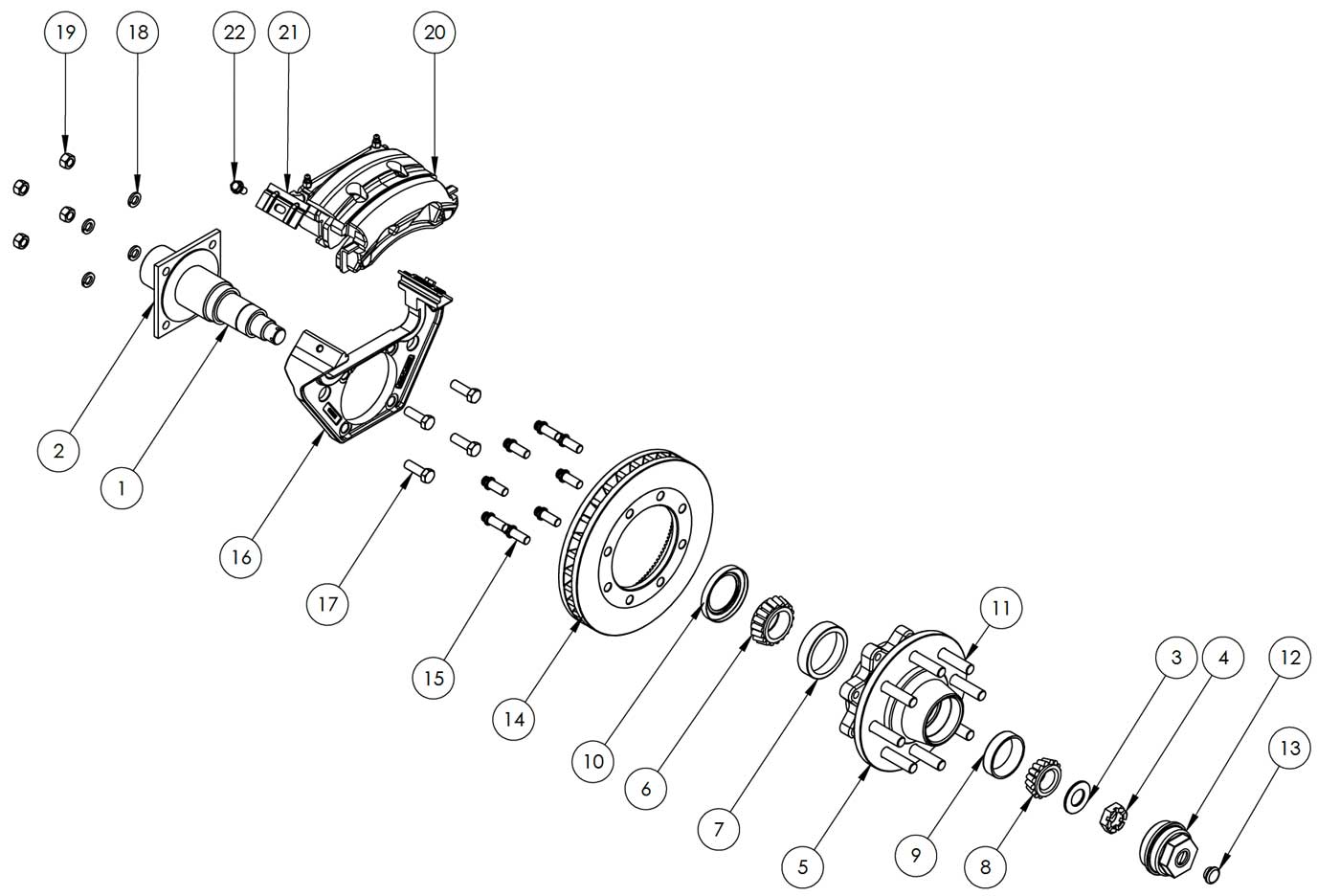

Kodiak Al-Ko/Rockwell 8K HD 11.6 Inch Disc Brake Parts Illustration
BRAKE KITS
KODIAK #
DEXTER #
DESCRIPTION
2-H-11-8A-9HD-REER
Kodiak Al-Ko/Rockwell 8k HD One Axle Disc Brake Set 11.6" automotive finish rotor/E-coat caliper, 9/16" wheel bolts
2-H-11-8A-5HD-REER
Kodiak Al-Ko/Rockwell 8k HD One Axle Disc Brake Set 11.6" automotive finish rotor, E-coat caliper, 5/8" wheel bolts
REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
#42 Spindle
1
N/A
#42 Brake Flange
2
N/A
Spindle Washer
3
N/A
Spindle Nut
4
H/S-42-9-S
8K hub spacer standard automotive finish for #42 spindle and 11" rotor with 9/16" studs
5
H/S-42-5-S
8K hub spacer standard automotive finish for #42 spindle and 11" rotor with 5/8" studs
5
25580
Inner Bearing Cone
6
25520
Inner Bearing Cup
7
02475
Outer Bearing Cone
8
02420
Outer Bearing Cup
9
472920 (National)
Grease Seal
10
R/H-LB2.5
Drive-In Wheel Stud 9/16" X 2.5"
11
R/H-LB3.165
Drive-In Wheel Stud 5/8" X 3.165"
11
Dust Caps
12
ROTOR/HUB-8K-PCAP
Polycarbonate Dustcap Reference Only
12
Q-10K-RBR-PLUG
Dustcap Plug
13
RTR-11-10D
11.6" rotor automotive finish
14
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
15
CMB-11-8A-HD-E
E-coated caliper mounting bracket for Al-Ko/Rockwell 8K axles with 11" rotor
16
1/2-20UNF x 1 1/4 Hex Bolt Reference Only
17
1/2" Lock Washer Reference Only
18
1/2-20UNF Nut Reference Only
19
DBC-2250-E
E- Coated Caliper with 2 - 2 1/2" nickel chrome plated pistons; ceramic pads; with mounting clips
20
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
21-22
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-250-CRM-PAD
Friction Pads (Ceramic standard on Dacromet coated calipers)
DBC-250-CRM-PAD-SS
Friction Pads (Ceramic with stainless steel backing plate - standard on stainless steel calipers)
DBC-2250-CRM-PAD
Ceramic pad for 2250 and 338HD disc brake caliper
DBC-250-PSTN-SS
2 1/2" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-250-PSTN
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
DBC-250-SEAL
EPDM Piston Seal
DBC-250-BOOT-SI
Silicone Dust Boot with stainless steel compression ring
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
DBC-MHBSB
EPDM Bushing For Guide Bolt Sleeve
N/A
DBC-MB
O-ring for Guide Bolt Sleeve (Use For OLDER Design) Reference Only
DBC-250-K
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston

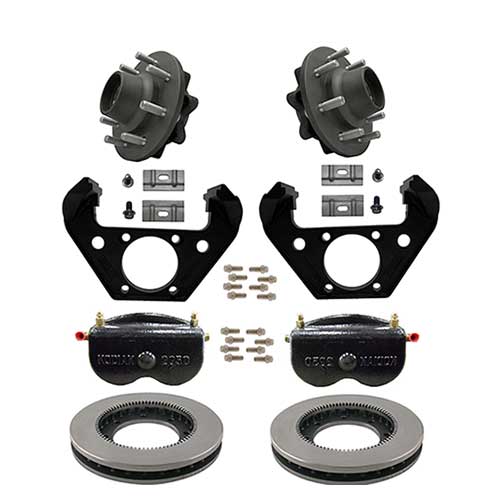

Kodiak Al-Ko/Rockwell 8K HD 11.6 Inch Rotor Disc Brake Kits
