Dexter/Lippert Axles: Kodiak 10K Leaf Spring Dual Wheel Trailer Disc Brakes
  • 25580 Outer/387A Inner Bearings
  • Fits Dexter/Lippert 10,000 lb. dual wheel axles with leaf spring suspension
  • Oil Bath Lubrication
  • Disc Kit includes 2ea. Rotor, 1 pair Calipers with pads & Brackets and spacers for one axle. (Inner/Outer Bearings, Grease Seals, Caps & Wheel Nuts sold separately).

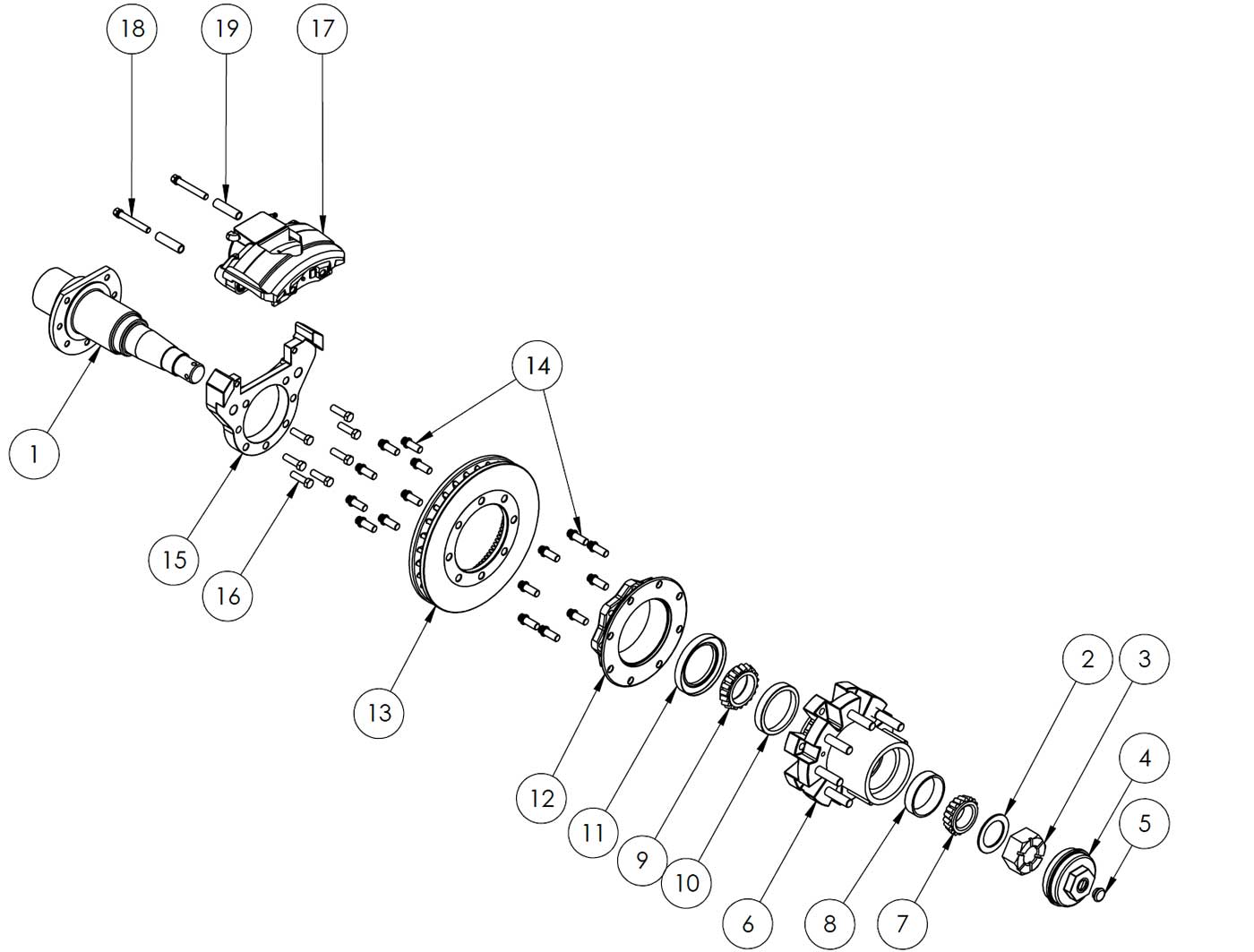

Kodiak Dexter/Lippert Axle With Leaf Spring Suspension and Dual Wheels 10K 11.6 Inch Rotor Disc Brake Parts Illustration
BRAKE KITS
PART NO.
DESCRIPTION
ITEM
Kodiak Dexter/Lippert 10k dual wheel with leaf spring suspension one axle Disc Brake Set 11.6" automotive finish rotor, E-coat caliper
Kodiak Dexter/Lippert 10k dual wheel with leaf spring suspension one axle Disc Brake Set 11.6" dacromet rotor/caliper
Kodiak Dexter/Lippert 10k dual wheel with leaf spring suspension one axle Disc Brake Set 11.6" dacromet rotor, stainless steel caliper
Kodiak Dexter/Lippert 10k dual wheel with leaf spring suspension one axle Disc Brake Set 11.6" automotive finish rotor, E-coat caliper
Kodiak Dexter/Lippert 10k dual wheel with leaf spring suspension one axle Disc Brake Set 11.6" automotive finish rotor, E-coat caliper
REPLACEMENT PARTS
PART NO.
DESCRIPTION
ITEM
Spindle
Dexter/Lippert 10K Spindle
1
Spindle Washer
2
Spindle Nut
3
Q-10-14K-PCAP
Polycarbonate cap assembly with O-ring and rubber plug
4
Oil lube plug for 8K - 14K, polycarbonate cap
5
#008-288-03 865 hub
6
#008-288-03 865 hub kit
6
#008-430-03 865 hub/drum
6
#008-430-03 865 hub/drum kit
6
Outer Bearing Cone
7
Outer Bearing Cup
8
Inner Bearing Cone
9
Inner Bearing Cup
10
Oil Seal 010-051-01
11
ROTOR-11-10D-SPC
Rotor spacer. Mount to Dexter/Lippert 10K general duty hub. #8-288-03
12
ROTOR-11-10D-SPC-DAC
Dacromet rotor spacer. Mount to Dexter/Lippert 10K general duty hub. #8-288-03
12
Rotor spacer. Mount to Dexter/Lippert 10K general duty hub. #008-430-03
12
11.6" Rotor automotive finish 9/10K Dexter/Lippert axle 1/2" mounting holes
13
11.6" Dacromet coated rotor 9/10K Dexter axle 1/2" mounting holes
13
1/2-13UNCx1 1/4 Flange Head
14
Caliper mounting bracket with 7 holes for 9 & 10K Dexter spring axle
15
Dacromet coated caliper mounting bracket with 7 holes for 9 & 10K Dexter spring axle
15
E-coated caliper mounting bracket for Dexter/Lippert 10K seven hole brake flange
15
E-coated caliper mounting bracket for Dexter/Lippert 10K seven hole brake flange, with #430 hub
15
Reference
1/2-20UNF x 1 1/4 Hex Bolt
16
E- Coated Caliper with 2 - 2 1/2" nickel chrome plated pistons; ceramic pads; with mounting clips
17
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston
17
Loaded Dacromet coated caliper for 10K rotor; ceramic pads; nickel chrome piston
17
Loaded Stainless Steel caliper for 10K rotor; ceramic pads; nickel chrome piston
17
CALIPER REPLACEMENT PARTS
PART NO.
DESCRIPTION
ITEM
Zinc plated steel guide bolt for DBC-338 caliper
18
Stainless steel guide bolt for DBC-338 caliper
18
Zinc plated steel sleeve for guide bolt sleeve for DBC-338 caliper
19
Stainless steel guide bolt sleeve for DBC-338 caliper
19
3-3/8" nickel/chrome plated steel piston; standard in E-coat calipers
N/S
3 3/8" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
N/S
EPDM dust boot for 338 piston
N/S
EPDM Piston Seal
N/S
Guide bolt sleeve bushing for DBC-338 caliper
N/S
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
N/S
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
N/S
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
N/S
Ceramic pad for 338 disc brake caliper (Standard on DAC and stainless steel calipers)
N/S
Ceramic pad for 2250 and 338HD disc brake caliper
N/S

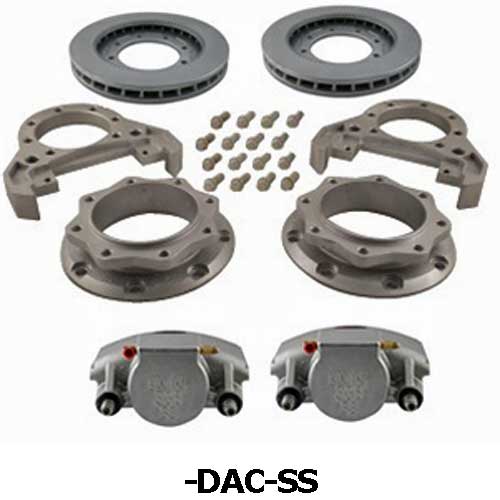

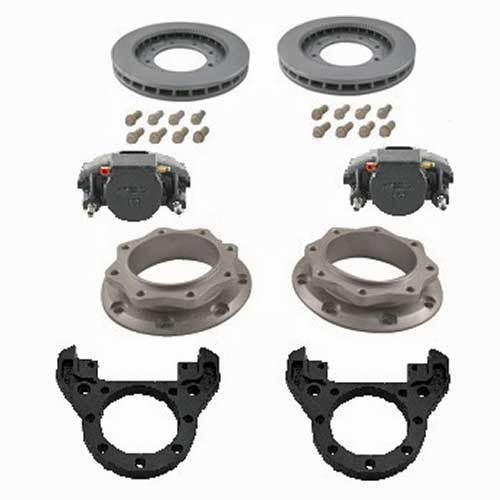

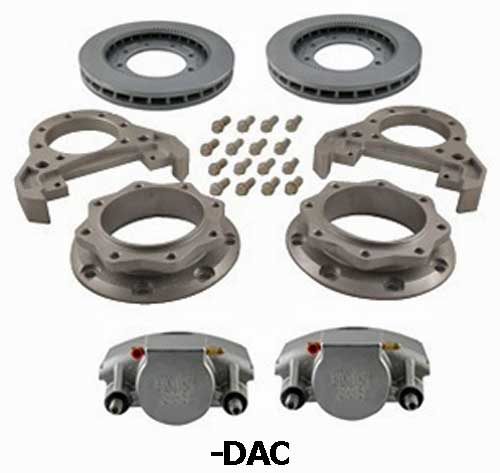

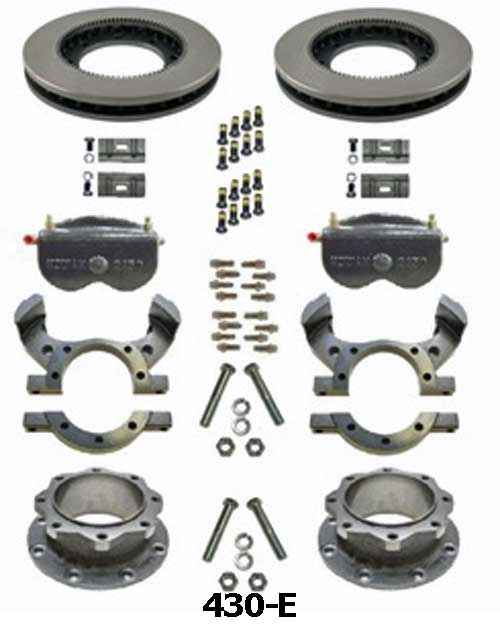

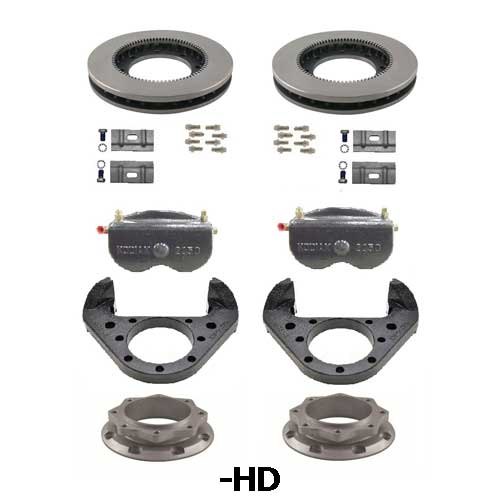

Kodiak Dexter/Lippert 10K Axle Dual Wheel Leaf Spring Suspension Automotive/E-coated Disc Brake Kit Kodiak Dexter/Lippert 10K Axle Dual Wheel Leaf Spring Suspension  Dacromet coated Disc Brake Kit Kodiak Dexter/Lippert 10K Axle Dual Wheel Leaf Spring Suspension Dacromet/Stainless Steel Disc Brake Kit Kodiak Dexter/Lippert 10K Axle Dual Wheel Leaf Spring Suspension HD Disc Brake Kit Kodiak Dexter/Lippert 10K Axle Dual Wheel Leaf Spring Suspension  430 Hub Disc Brake Kit
