Warner 12 1/4 x 3 1/2" Electric Brake

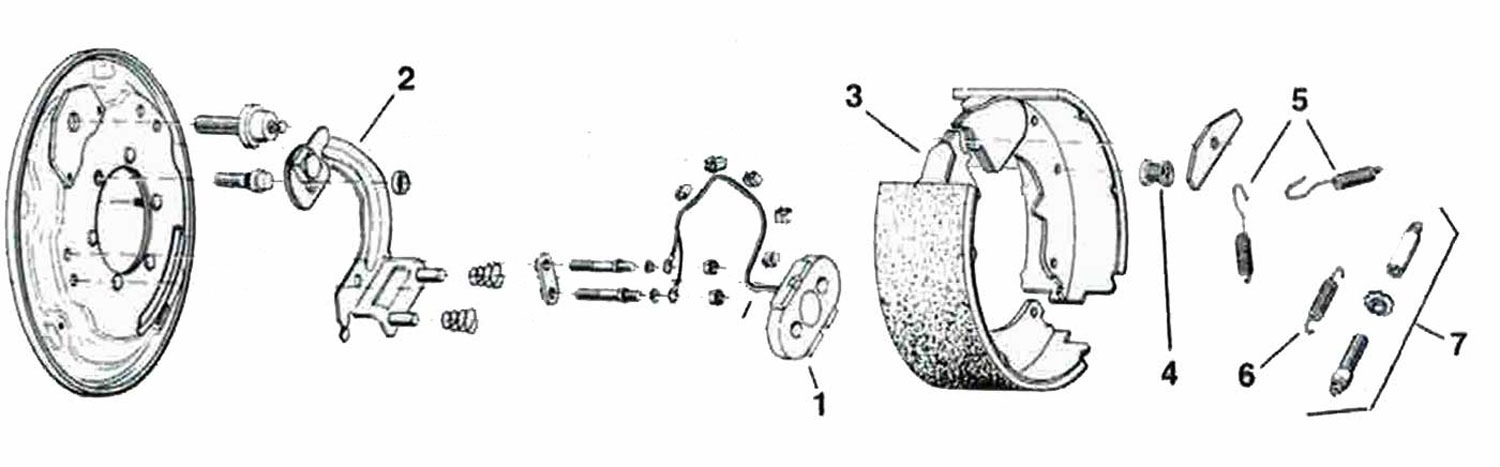

Warner 12.25 x 3.5 Inch Electric Brake Parts Illustration
BRAKE ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
ITEM
1301-13
186400
Warner 10k Per Pair Left Hand Brake Reference Only
1301-12
186600
Warner 10k Per Pair Right Hand Brake Reference Only
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
BP01-270
196800
Magnet Kit Reference Only
1
1301-100-014
Magnet Kit
1
203600
Actuating Arm, Left Hand Reference Only
2
203800
Actuating Arm, Right Hand Reference Only
2
1301-100-015
Actuating Arm, Right Hand
2
1301-100-016
203801
Actuating Arm, Left Hand Reference Only
2
BP04-280
209000
Shoe & Lining (One Wheel) Reference Only
3
1301-100-005
209001
Shoe & Lining (One Wheel) Reference Only
3
215600
Shoe Hold Down Spring Reference Only
4
1301-100-007
Shoe Hold Down Kit
4
BP07-175
Shoe Return Springs
5
BP08-120
Adjuster Springs
6
BP10-080
Adjuster
7

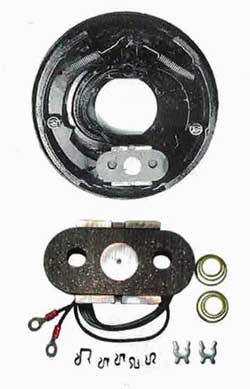

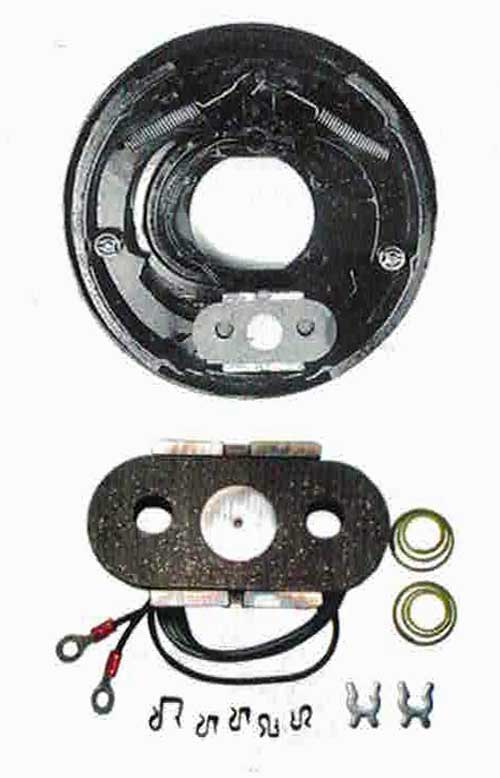

Warner 12 1/4 x 3 1/2 Inch Electric Brake Assemblies
